Compass Calibration and Magnetic

Compass Calibration

Before calibrating the compass, drive the vehicle to an

open area that is magnetically clean or free of large

metallic objects such as high tension power lines or large

steel buildings. Verify there are no magnetized roof

antennas, magnets on or hanging from the mirror, or any

other magnetized objects on the inside or outside of the

vehicle close to the mirror.

1. Start the engine.

Compass Magnetic Variation Adjustment

Magnetic variation adjustments are required when the compass displays a constant error in heading. Variation is the

difference between magnetic north and true north due to geographical location.

1. Locate your current geographic location on the World Magnetic Variation Map.

2. Turn ON the ignition, with the engine OFF.

3. Press and hold the on/off switch for the compass until a zone number appears on the compass display.

4. Depress the switch for the compass to select the desired zone number.

5. Wait 5 seconds. The display will return to a compass heading. The variance procedure is now complete.

6. Calibrate the compass. Refer to Compass Calibration mentioned above.

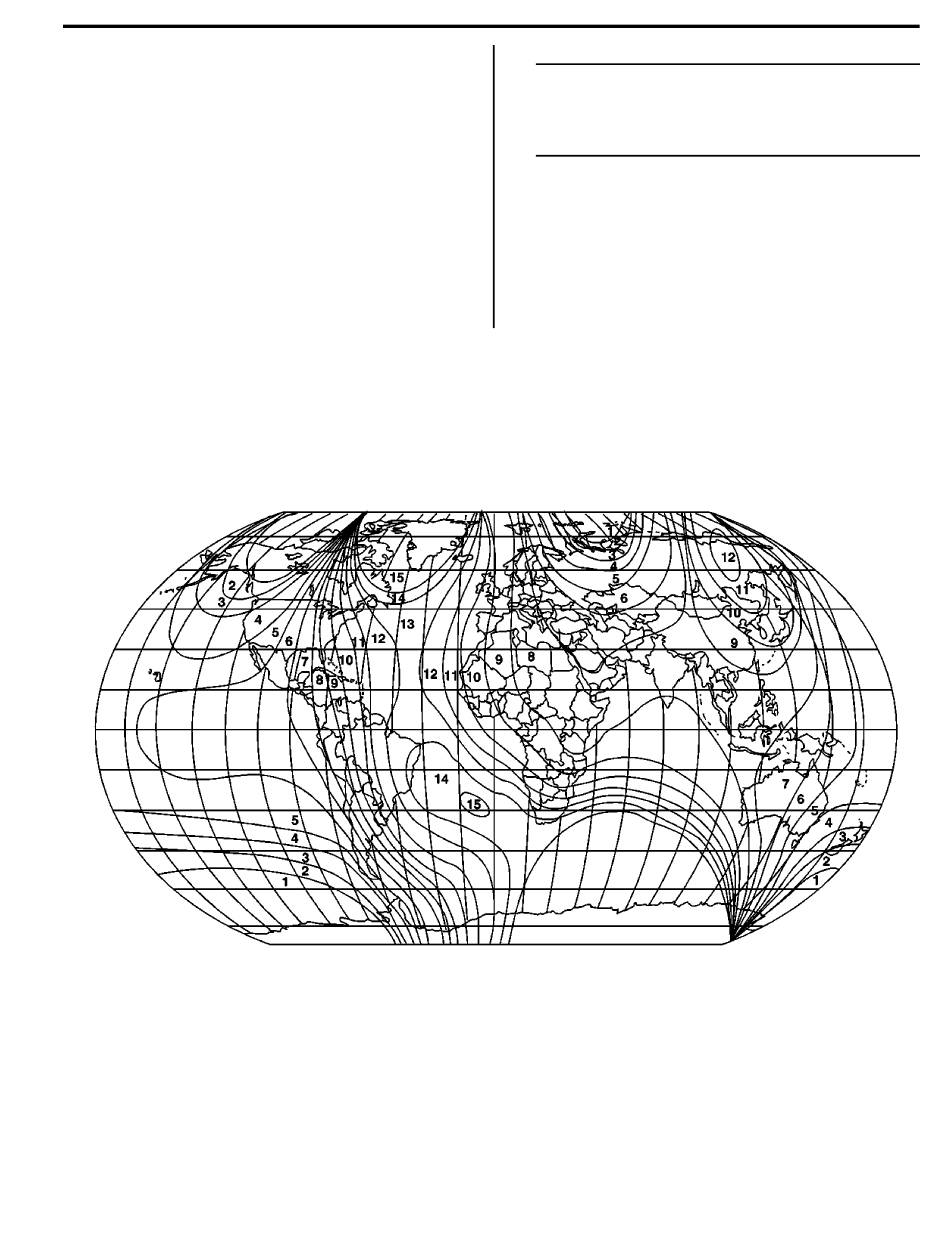

World Magnetic Variation Map

Schematic and Routing Diagram

Glass / Windows / Mirrors:

Before calibrating the compass, make sure

the mirror has the correct zone number. Refer

to Compass Magnetic Variation Adjustment

mentioned below.

2. Press and hold the switch for the compass, which

may be depicted as COMP, COMPASS, or on/off (w/

UE1) depending on the type of mirror on the vehicle,

until the letter "C" or "CAL" is displayed.

3. Drive the vehicle in circles at a speed of less than 8

km/h (5 mph) until the "C" or "CAL" is replaced by a

proper vehicle heading. The calibration procedure is

now complete.
