GE Cafe Series Dimensions And Installation Information

CVM9215SL

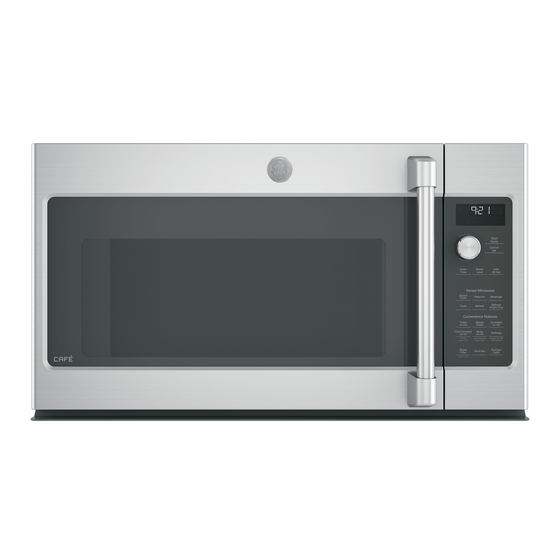

GE Cafe Series 2.1 cu. ft. Over-the-Range Microwave Oven
™
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Requires 120V grounded outlet. Electrical receptacle
must be located in cabinet above microwave oven. No
additional wiring, venting or cabinet rebuilding necessary in
many cases. Complete detailed, easy-to-follow installation
instructions and convenient full-size templates are packed
with the microwave oven.
IMPORTANT INFORMATION: When installing the
microwave oven over a range, allow minimum of 2" from
bottom of microwave oven to top of range backguard to allow
for removal of light covers.
VENTILATION OPTIONS: The microwave ovens are
designed for adaptation to the following three types of
ventilation:
-Outside exhaust (vertical – as shown)
-Outside exhaust (horizontal)
-Recirculating (non-vented ductless – see Filter Kit drawing)
INSTALLATION INFORMATION: This information is
not intended to be used for installing unit described. Before
installing, consult installation instructions packed with
product/kit for current dimensional data.
For answers to your Monogram, GE Café
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center
Minimum distance from
door hinge side to
adjacent wall should
equal 1/2".
24-1/2 "
105°
Door open
(without obstruction)
™ Series, GE Profile ™ Series or
® Service, 800.626.2000.
66" MIN.
Mounting
30" MIN.
width
height from
required
floor
13"
MAX.
12"
MIN.
15-1/2"
16-1/4"
(rear)
16"
29-3/4"
Exhaust outlet
connects to
3-1/4"x10" duct
Listed by
Underwriters
Laboratories
Specification Created 6/17
