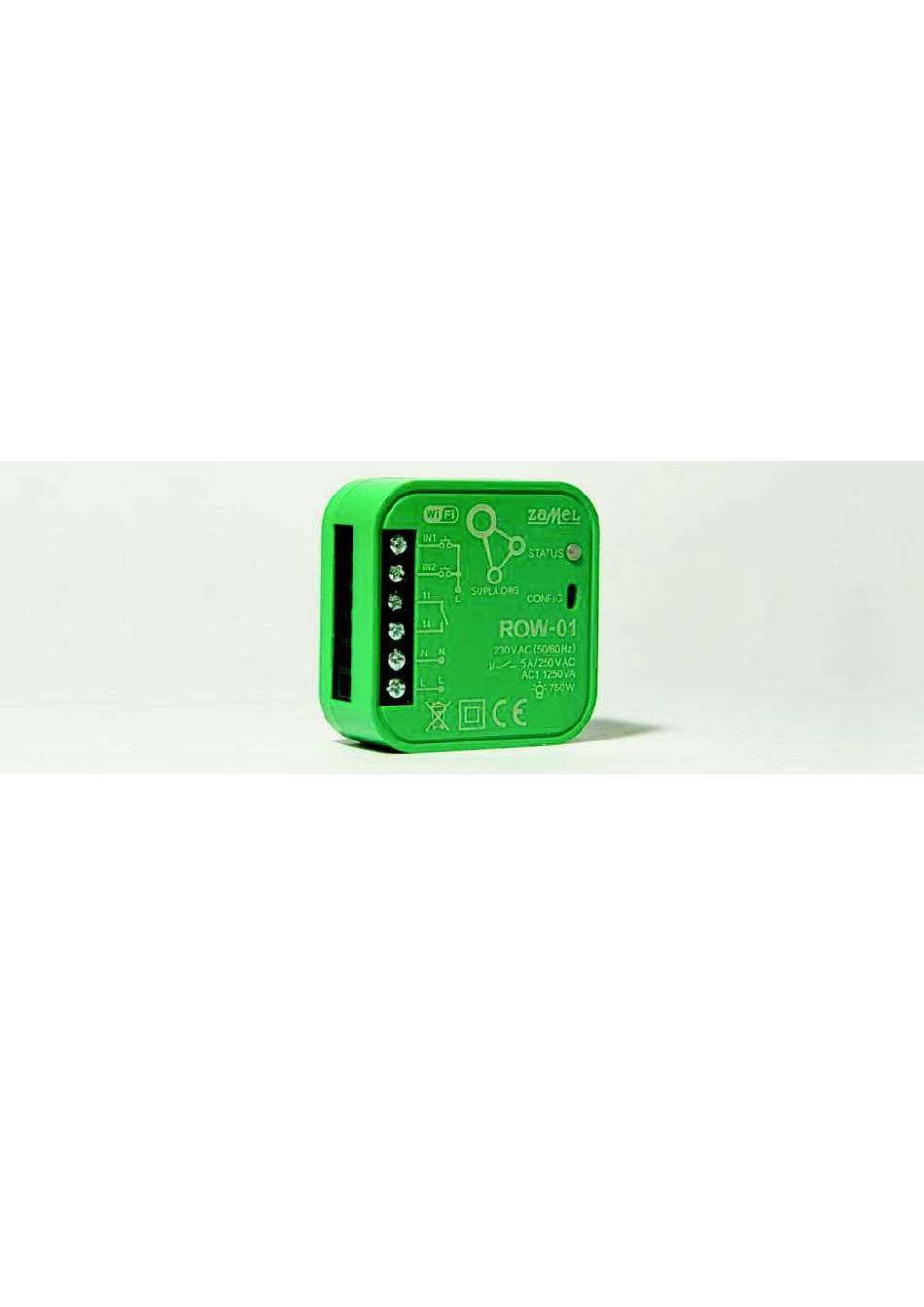

- Page 1 ZAMEL ROW-01 FITTING INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
Content Technical data ............................4 Installation remarks ..........................5 Mounting ..............................5 Registry ..............................8 ROW-01 module configuration ....................... 9 Installation and configuration of SUPLA on smartphones or tablets ............ 13... - Page 3 Welcome, On behalf of the whole Zamel team, we would like to thank you for choosing our product. Remember, this is an electronic device with mains power supply, so keep in mind all safety rules during mounting. Make sure there is no voltage on the connection cables by means of a special measuring equipment before mounting.
-
Page 4: Technical Data
Technical data Nominal voltage supply: 230 VAC Nominal frequency: 50 / 60 Hz Nominal power consumption: 0,45 W Transmission: Wi-Fi Operation range: do 200 m in the open area Number of external inputs: 2 Cooperation with switches: monostable (push-buttons) bistable (standard lighting switches without backlight) Number of output channels: 1 Relay contact parameters:... -
Page 5: Installation Remarks
Installation remarks Do not mount the ROW-01 module in close proximity to each other (if possible, keep 15 cm distance). Particularly avoid mounting one receiver over the another one. It can cause the Wi-Fi connection disturbances. It is important to obey maximum output loads: •... - Page 6 1. Disconnect power supply by the phase fuse, the circuit-breaker or the switch- disconnector combined to the proper circuit. Remove the switch and disconnect the wires. 2. Connect the device to power supply in accordance with one of the below presented installing diagram, and switch on the power supply from the mains.
- Page 7 *) Diagram no. 2 – includes device mounting behind a monostable switch (doorbell)
-
Page 8: Registry
Registration Starting the ROW-01 module requires an active user account at cloud.supla.org. If you do not have an account yet, register now and follow the below presented steps. Registration and system usage are free of charge. website and click “Create an account”... -
Page 9: Row-01 Module Configuration
CONFIG push button for a longer time (available in a slot) for a minimum of 5 seconds to enter the configuration mode. In this mode the module operates as a Wi-Fi access point and is visible in the Wi-Fi network under the name of “ZAMEL-ROW-01”. - Page 10 Establish a connection to the W-Fi “ZAMEL-ROW-01” (ROW-01 module must operate in the configuration mode at that time) by means of any device (computer/tablet/smartphone) that can be connected to Wi-Fi networks and has an installed browser. After a connection to the W-Fi “ZAMEL-ROW-01”...
- Page 11 * screenshot of http://192.168.4.1 - configuration website of ZAMEL ROW-01 module Next, complete access data for SUPLA server (Supla settings). All necessary data are available in the yellow form “supla-dev”, which is displayed after logging in at https://cloud.supla.org.
- Page 12 Click “Save” after you have finished entering all above mentioned settings. “DATA SAVED” message is displayed to signal correct saving of settings. At that moment, restart the module again by pressing the red CONFIG push-button (available in the slot) or just disconnect and connect the device.
-
Page 13: Installation And Configuration Of Supla On Smartphones Or Tablets
Installation and configuration SUPLA App on smartphones or tablets In case of smartphones/tablets with Android system operation, open Google Play store, next find the SUPLA application and install it. In case of iPhone or iPad, open AppStore, next find the SUPLA application and install it. - Page 14 After entering all settings correctly, the application connects with the server and enables switching on / switching off the lighting / power supply by means of the ZAMEL ROW-01 module from any place in the world with the Internet access.
