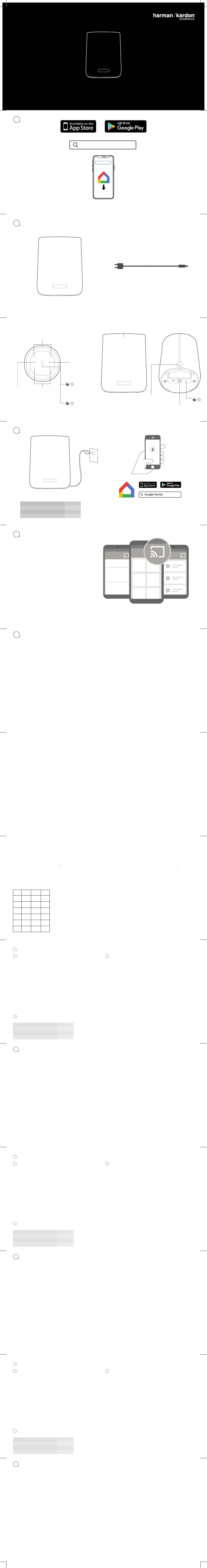

Harman Kardon CITATION ONE Manual

C I T A T I O N
1
APP
2
PRODUCT TOUR
CITATION ONE
Top
Microphones
Volume
Mic
mute/
unmute
3

GET STARTED

Plug in the power
Wi-Fi status
Excellent Wi-Fi signal
Recommended Wi-Fi signal
Weak Wi-Fi signal or Disconnected
4
CHROMECAST PLAY MUSIC PROCEDURE
Step 1: Open Chromecast supported app
Step 2: Play Music
Step 3: Tap the cast icon and select "CITATION ONE"
* Device can support multi-room control provided by Chromecast built-in, more details you can refer to Google Home app.
5

SPECIFICATIONS

EN
Model Name: CITATION ONE
• Transducer: 1 x 89mm woofer, 1 x 20mm tweeter
• Output power: 2 x 25WRMS
• Signal-to-noise ratio: 80dBA
• Power Supply: 100-240v ~ 50/60Hz
• Wireless network: 802.11a/b/g/n/ac (2.4GHz/5GHz)
• Bluetooth version: 4.2
• Bluetooth transmitter frequency range: 2402 − 2480MHzz
• Bluetooth transmitter power: <5dBm
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
• 5G Wi-Fi transmitter frequency range: 5.15GHz - 5.35GHz,
5.47~5.725 GHz,5.725~5.825GHz
• 5G Wi-Fi transmitter power: <16dBm
• 5G Wi-Fi modulation: OFDM, BPSK, QPSK, 16QAM, 64QAM,
256QAM
• 2.4G Wi-Fi transmitter frequency range: 2412 – 2472MHz
(2.4GHz ISM Band, USA 11 Channels, Europe and others 13
Channels)
• 2.4G Wi-Fi transmitter power: <18dBm
• 2.4G Wi-Fi modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16QAM, 64QAM
• Supported audio formats: HE-AAC, LC-AAC, MP3, Vorbis, WAV
(LPCM), FLAC, Opus
This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
CAN ICES-3 (B) / NMB-3 (B).
IC Caution:
User should also be advised that:
(i) the device for operation in the band 5150 - 5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;
(ii) the maximum antenna gain permitted for devices in the bands 5250 - 5350 MHz and 5470 - 5725 MHz shall comply with the e.i.r.p. limit: and
(iii) the maximum antenna gain permitted for devices in the band 5725 - 5825 MHz shall comply with the e.i.r.p. limits specified for point-to-point and non
point-to-point operation as appropriate.
(iv) Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250 - 5350 MHz and 5650 - 5850 MHz and that
these radars could cause interference and/or damage to LE-LAN devices.
Les utilisateurs devraient aussi être avisés que
(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l'intérieur afin de réduire les risques de brouillage
préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;
(ii) le gain maximal d'antenne permis pour les dispositifs utilisant les bandes 5 250-5 350 MHz et 5 470-5 725 MHz doit se conformer à la limite de p.i.r.e.;
(iii) le gain maximal d'antenne permis (pour les dispositifs utilisant la bande 5 725-5 825 MHz) doit se conformer à la limite de p.i.r.e. spécifiée pour l'exploitation point
à point et non point à point, selon le cas.De plus, les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour
les bandes 5 250-5 350 MHz et 5 650-5 850 MHz et que ces radars pourrai ent causer du brouillage et/ou des dommages aux dispositifs LAN-EL.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
High power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations can cause interference with and/or damage
this device. No configuration controls are provided for this wireless equipment allowing any change in the frequency of operations outside the FCC grant of
authorization for US operation according to Part 15.407 of the FCC rules.
This equipment complies with FCC/IC RSS 102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated
with minimum distance 20cm between the radiator and your body. / Cet équipement est conforme aux limites d'exposition aux radiationsFCC/ IC CNR 102 établies pour
un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.
해당무선설비는전파혼신가능성이있으므로인명안전과관련된서비스는할수없음.
Use Restriction: This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range in following countries:
BE EL LT PT
BG ES LU RO
CZ FR HU SI
DK HR MT SK
DE IT NL FI
EE CY AT SE
IE LV PL UK
FR
App
1
Download and run the Google Home app on a phone or tablet.
Product Tour
2
CITATION ONE
Regional power cord
(varies depending on country)
Top
Microphones
Bluetooth
Mic mute/unmute
Volume
Play/Pause, stop timers, alarms and responses
To ask your Google Assistant for help
Front
Lights when active
Bottom
Wi-Fi Status
Power connector
Reset
GET STARTED
3
Plug in the power
Wi-Fi status
Excellent Wi-Fi signal
Recommended Wi-Fi signal
Weak Wi-Fi signal or Disconnected
5 CARACTÉRISTIQUES TECHNIQUES
Désignation du modèle : CITATION ONE
• Haut-parleur : 1 x haut-parleur de graves 89 mm, 1 x haut-parleur
d'aigus 20 mm
• Puissance de sortie : 2 X 25 WRMS
• Rapport signal/bruit : 80 dBA
• Alimentation : 100-240 V~50/60 Hz
• Réseau sans fil : 802.11b/g/n/ac (2,4 GHz/5 GHz)
• Version Bluetooth : 4.2
• Gamme de fréquences de l'émetteur Bluetooth : 2402 – 2480 MHz
• Puissance de l'émetteur Bluetooth : <5dBm
• Modulation de l'émetteur Bluetooth : GFSK, π/4 DQPSK, 8DPSK
• Plage de fréquences de l' é metteur WiFi 5G : 5.15GHz - 5.35GHz,
5.47~5.725 GHz,5.725~5.825GHz
• Puissance de l'émetteur WiFi 5G : <16dBm
• Modulation WiFi 5G : OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM
• Plage de fréquences de l' é metteur WiFi 2,4G : 2412 – 2472 MHz
(bande ISM 2,4 GHz, USA 11 canaux, Europe et autres 13 canaux)
• Puissance de l'émetteur WiFi 2,4G : <18 dBm
• Modulation WiFi 2,4G : OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
• Formats audio pris en charge : HE-AAC, LC-AAC, MP3, Vorbis, WAV
(LPCM), FLAC, Opus
• Dimensions (L x H x P) : 150.9X150.9X188.6 mm
• Poids : 2.7 kg
ES
App
1
Download and run the Google Home app on a phone or tablet.
Product Tour
2
CITATION ONE
Regional power cord
(varies depending on country)
Top
Microphones
Bluetooth
Mic mute/unmute
Volume
Play/Pause, stop timers, alarms and responses
To ask your Google Assistant for help
Front
Lights when active
Bottom
Wi-Fi Status
Power connector
Reset
GET STARTED
3
Plug in the power
Wi-Fi status
Excellent Wi-Fi signal
Recommended Wi-Fi signal
Weak Wi-Fi signal or Disconnected
5 ESPECIFICACIONES
Nombre del modelo: CITATION ONE
• Transductor: 1 x altavoz de graves 89 mm, 1 altavoz de agudos 20 mm
• Potencia de salida: 2 X 25 WRMS
• Relación señal/ruido: 80 dBA
• Alimentación eléctrica: 100-240 V~50/60 Hz
• Red inalámbrica: 802.11b/g/n/ac (2,4 GHz/5 GHz)
• Versión de bluetooth: 4.2
• Rango de frecuencia del transmisor Bluetooth: 2402-2480 MHz
• Potencia del transmisor Bluetooth: <5dBm
• Modulación del transmisor Bluetooth: GFSK, π/4 DQPSK, 8 DPSK
• Rango de frecuencia del transmisor wifi 5G: 5.15GHz - 5.35GHz,
5.47~5.725 GHz, 5.725~5.825GHz
• Potencia del transmisor wifi 5G: <16dBm
• Modulación 5G wifi: OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM
• Rango de frecuencia del transmisor wifi 2,4G: 2412-2472 MHz
(banda ISM 2,4 GHz, 11 canales en EE. UU. y otros 13 canales en Europa)
• Potencia del transmisor wifi 2,4G: <18 dBm
(PIRE, potencia isotrópica radiada efectiva)
• Modulación 2,4G wifi: OFDM, DSSS, DBPSK, DQPSK, CCK, 16QAM, 64QAM
• Formatos de audio admitidos: HE-AAC, LC-AAC, MP3, Vorbis, WAV
(LPCM), FLAC, Opus
• Dimensiones (anch. x alt. x prof.) : 150.9X150.9X188.6 mm
• Peso : 2.7 kg
DE
App
1
Download and run the Google Home app on a phone or tablet.
Product Tour
2
CITATION ONE
Regional power cord
(varies depending on country)
Top
Microphones
Bluetooth
Mic mute/unmute
Volume
Play/Pause, stop timers, alarms and responses
To ask your Google Assistant for help
Front
Lights when active
Bottom
Wi-Fi Status
Power connector
Reset
GET STARTED
3
Plug in the power
Wi-Fi status
Excellent Wi-Fi signal
Recommended Wi-Fi signal
Weak Wi-Fi signal or Disconnected
5 TECHNISCHE DATEN
Modellbezeichnung: CITATION ONE
• Lautsprechertreiber: 1 x 89 mm Tieftöner, 1 x 20 mm Hochtöner
• Ausgangsleistung: 2 X 25 WRMS
• Signal-Rauschabstand: 80 dBA
• Netzteil: 100–240 V~50/60 Hz
• WLAN: 802.11b/g/n/ac (2,4 GHz/5 GHz)
• Bluetooth-Version: 4.2
• Bluetooth-Übertragungsfrequenzbereich: 2.402 – 2.480 MHz
• Bluetooth-Übertragungsleistung: <5dBm
• Bluetooth-Übertragungsmodulation: GFSK, π/4 DQPSK, 8 DPSK
• 5 GHz WLAN-Frequenzbereich: 5.15GHz - 5.35GHz, 5.47~5.725 GHz,
5.725~5.825GHz
• 5 GHz WLAN-Übertragungsleistung: <16dBm
• 5 GHz WLAN-Modulation: OFDM, BPSK, QPSK, 16QAM, 64QAM, 256QAM
• 2,4 GHz WLAN-Frequenzbereich: 2.412 – 2.472 MHz (2,4 GHz
ISM-Band, USA 11 Kanäle, Europa und andere 13 Kanäle)
• 2,4 GHz WLAN-Übertragungsleistung: < 18 dBm
• 2,4 GHz WLAN-Modulation: OFDM, DSSS, DBPSK, DQPSK, CCK,
16-QAM, 64-QAM
• Unterstützte Audioformate: HE-AAC, LC-AAC, MP3, Vorbis, WAV
(LPCM), FLAC, Opus
• Abmessungen (B x H x T): 150.9X150.9X188.6 mm
• Gewicht: 2.7 kg
Google Home
Download and run the Google Home app on a phone or tablet.
X1
Bluetooth
Play/Pause,
stop timers,
alarms and
<2s
responses
To ask your Google
Assistant for help
>2s
Light color
Green
Yellow
Red
Belgium (BE), Greece (EL), Lithuania (LT), Portugal (PT), Bulgaria (BG), Spain (ES), Luxembourg (LU), Romania (RO), Czech
Republic (CZ), France (FR), Hungary (HU), Slovenia (SI), Denmark (DK), Croatia (HR), Malta (MT), Slovakia (SK), Germany (DE),
Italy (IT), Netherlands (NL), Finland (FI), Estonia (EE), Cyprus (CY), Austria (AT), Sweden (SE), Ireland (IE), Latvia (LV), Poland (PL)
and United Kingdom (UK).
This product contains open source software licensed under GPL. For a list of open source software and other relevant information,
please download the Harman Kardon Controller app available on the App Store or Google Play. For your convenience, the source code
and relevant build instruction are also available at http://www.harmankardon.com/opensource.html. Please feel free to contact us at:
Harman Deutschland GmbH
ATT: Open Source, Gregor Krapf-Gunther
Parkring 3
85748 Garching bei Munchen
Germany
or OpenSourceSupport@Harman.com if you have additional question regarding the open source software in the product.
Light color
Green
Yellow
Red
Light color
Green
Yellow
Red
Light color
Green
Yellow
Red
O N E
Google Home
Regional power cord
(varies depending on country)
Front
Lights when active
Download and run the Google Home app on a phone
or tablet. Set up your device in the Google Home app.
*Enable Bluetooth (iPhone / iPad)
• Dimensions (W x H x D): 150.9X150.9X188.6mm
• Weight: 2.7 kg
Note: CITATION ONE is intended to be used for streaming music.
A consumer can stream Bluetooth audio to the speaker. A consumer can
connect their speaker to the local Wi-Fi Network and stream music with
Google Chromecast. In addition, the speaker will work with Google Home.
This product is designed to be instantly on and ready to play music at a
moment's notice, therefore, the Bluetooth and Wi-Fi connection must remain
active at all times to ensure proper operation.
CITATION ONE is in compliance with the European Union energy legislation.
CITATION ONE complies with European Commission Regulation (EC) No
1275/2008 and (EU) No 801/2013 as a networked equipment with high
network availability (HiNA equipment and equipment with HiNA
functionality).
• Power consumption
• Standby: N/A
• Network Standby: N/A
• Active Standby*: 3.2 W
*Active Standby: CITATION ONE is connected to a wireless network but does
not provide active audio functions.
Download and run the Google Home app on a phone or tablet. Set up your device
in the Google Home app. *Enable Bluetooth (iPhone / iPad)
CHROMECAST PLAY MUSIC PROCEDURE
4
Step 1: Open Chromecast supported app
Step 2: Play Music
Step 3: Tap the cast icon and select "CITATION ONE"
* Device can support multi-room control provided by Chromecast built-in, more
details you can refer to Google Home app.
Ce produit inclut un logiciel libre sous licence GPL. Pour obtenir une liste
de logiciels libres ainsi que d'autres informations pertinentes, veuillez
télécharger l'application Harman Kardon Controller disponible sur l'App
Store ou sur Google Play. Pour plus de commodité, le code source ainsi
que les instructions de compilation correspondantes sont également
disponibles à l'adresse http://www.harmankardon.com/opensource.html.
N'hésitez pas à nous contacter à :
Harman Deutschland GmbH
ATT: Open Source, Gregor Krapf-Gunther
Parkring 3
85748 Garching bei Munchen
Germany
ou OpenSourceSupport@Harman.com pour toute question concernant le
logiciel « open source » intégré dans ce produit.a
Remarque : CITATION One sert à diffuser de la musique en streaming.
L'utilisateur peut lancer de la musique sur l' e nceinte en Bluetooth. L'utilisateur
peut connecter son enceinte au réseau Wi-Fi local et diffuser de la musique
avec Google Chromecast. L' e nceinte fonctionnera également avec Google
Home. Ce produit a été conçu pour diffuser de la musique instantanément et
à tout moment. Pour garantir son bon fonctionnement, le Bluetooth et le
Wi-Fi doivent donc rester actifs en permanence.
CITATION One est conforme à la législation de l'Union européenne en
matière d'énergie.
CITATION ONE complies with European Commission Regulation (EC) No
1275/2008 and (EU) No 801/2013 as a networked equipment with high
network availability (HiNA equipment and equipment with HiNA
functionality).
• Power consumption
• Standby: N/A
• Network Standby: N/A
• Active Standby*: 3.2 W
*Active Standby: CITATION ONE is connected to a wireless network but does
not provide active audio functions.
Download and run the Google Home app on a phone or tablet. Set up your device
in the Google Home app. *Enable Bluetooth (iPhone / iPad)
CHROMECAST PLAY MUSIC PROCEDURE
4
Step 1: Open Chromecast supported app
Step 2: Play Music
Step 3: Tap the cast icon and select "CITATION ONE"
* Device can support multi-room control provided by Chromecast built-in, more
details you can refer to Google Home app.
Este producto contiene software de código abierto con licencia GPL. Para
obtener una lista del software de código abierto y otros datos importantes,
descarga la aplicación Harman Kardon Controller, disponible en el App
Store y en Google Play. Para mayor comodidad, el código fuente y las
instrucciones de compilación correspondientes también están disponibles
en http://www.harmankardon.com/opensource.html. No dudes en
ponerte en contacto con nosotros en:
Harman Deutschland GmbH
ATT: Open Source, Gregor Krapf-Gunther
Parkring 3
85748 Garching bei Munchen
Germany
o OpenSourceSupport@Harman.com si tienes más preguntas sobre el
software de código abierto del producto.
Nota: El fin de CITATION ONE es la reproducción de música. El usuario puede
reproducir sonido Bluetooth en el altavoz. El usuario puede conectar su
altavoz a la red wifi local y reproducir música con Google Chromecast.
Además, el altavoz funciona con Google Home. Este producto está diseñado
para encenderse al instante y estar preparado para reproducir música en
cualquier momento. Por lo tanto, las conexiones Bluetooth y wifi deben
permanecer activas en todo momento para garantizar un funcionamiento
correcto.
CITATION ONE cumple la legislación energética de la Unión Europea.
CITATION ONE complies with European Commission Regulation (EC) No
1275/2008 and (EU) No 801/2013 as a networked equipment with high
network availability (HiNA equipment and equipment with HiNA
functionality).
• Power consumption
• Standby: N/A
• Network Standby: N/A
• Active Standby*: 3.2 W
*Active Standby: CITATION ONE is connected to a wireless network but does
not provide active audio functions.
Download and run the Google Home app on a phone or tablet. Set up your device
in the Google Home app. *Enable Bluetooth (iPhone / iPad)
CHROMECAST PLAY MUSIC PROCEDURE
4
Step 1: Open Chromecast supported app
Step 2: Play Music
Step 3: Tap the cast icon and select "CITATION ONE"
* Device can support multi-room control provided by Chromecast built-in, more
details you can refer to Google Home app.
Dieses Produkt enthält Open Source-Software, die gemäß GPL lizenziert ist.
Um eine Liste der Open Source-Softwarekomponenten und sonstige
diesbezügliche Informationen zu erhalten, laden Sie bitte die Harman
Kardon Controller-App herunter, die Sie im App Store oder bei Google Play
erhalten. Der Quellcode und die betreffenden
Implementierungsanweisungen stehen Ihnen unter
http://www.harmankardon.com/opensource.html. zur Verfügung. Sie
können jederzeit gerne Kontakt mit uns aufnehmen unter:
Harman Deutschland GmbH
ATT: Open Source, Gregor Krapf-Gunther
Parkring 3
85748 Garching bei Munchen
Germany
oder OpenSourceSupport@Harman.com, falls Sie noch weitere Fragen zu
der in diesem Produkt verwendeten Open Source-Software haben.
Hinweis: Die Verwendung von CITATION ONE ist auf Musik-Streaming
ausgelegt. Der Nutzer kann Bluetooth-Audio zum Lautsprecher streamen.
Der Nutzer kann den Lautsprecher mit dem lokalen WLAN verbinden und
Musik mit Google Chromecast streamen. Zusätzlich funktioniert das Gerät
auch mit Google Home. Dieses Produkt wurde so entworfen, dass es
unmittelbar nach dem Einschalten Musik ohne Verzögerung abspielt. Um
einen korrekten Betrieb zu gewährleisten, müssen Bluetooth und WLAN
daher durchgehend aktiv sein..
Der CITATION ONE befindet sich in Übereinstimmung mit der
Energiegesetzgebung der Europäischen Union.
CITATION ONE complies with European Commission Regulation (EC) No
1275/2008 and (EU) No 801/2013 as a networked equipment with high
network availability (HiNA equipment and equipment with HiNA
functionality).
• Power consumption
• Standby: N/A
• Network Standby: N/A
• Active Standby*: 3.2 W
*Active Standby: CITATION ONE is connected to a wireless network but does
not provide active audio functions.
X1
Bottom
Wi-Fi Status
Power connector
Reset
>5s
