Electronic control panel for nupi 66 with programmable radio technology (20 pages)
Summary of Contents for fadini Elpro 12 PLUS
Page 1
- LUZ AUXILIAR DESLIZANTES NYOTA 115 - DIAGNOSTICO POR MEDIO DE LED LUMINOSOS FOLLETO DE INSTRUCCIONES meccanica Via Mantova 177/A - 37053 Cerea (Verona) Italy Tel. 0442 330422 Dis. N. 4086 FADINI - Fax 0442 331054 e-mail: info@fadini.net - www.fadini.net...
Page 2

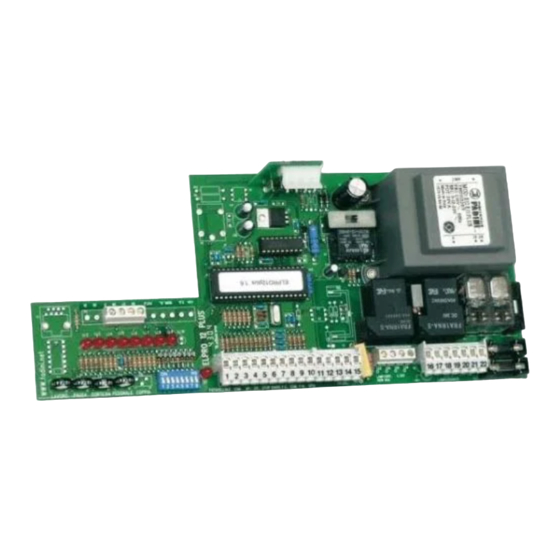

19 20 21 22 The electronic control panel Elpro 12 Plus, new generation, is designed to operate the sliding gate operator Nyota 115. Power supply is 230V 50Hz single-phase. Built in full compliance with BT 93/68/CE Low Voltage and EMC 93/68/CE Electro-Magnetic Compatibility Regulations. Fitting operations are recommended by a qualified technician in conformity to the existing safety standards.
Elpro12 PLUS LOW VOLTAGE ELECTRICAL CONNECTIONS Photocells and Safety Edge: Button switch: Limit switch: DIP-SWITCH 1: ON: Photocells stop gate while opening, 12 13 reverse it once obstacle is removed 24V OUTPUT (MAX. LOAD: OFF: Photocells do not stop gate while PHOTOCELLS 2 PAIRS PHOTOCELLS opening, reverse it in case of an...
