Summary of Contents for Magna Systems GateWay

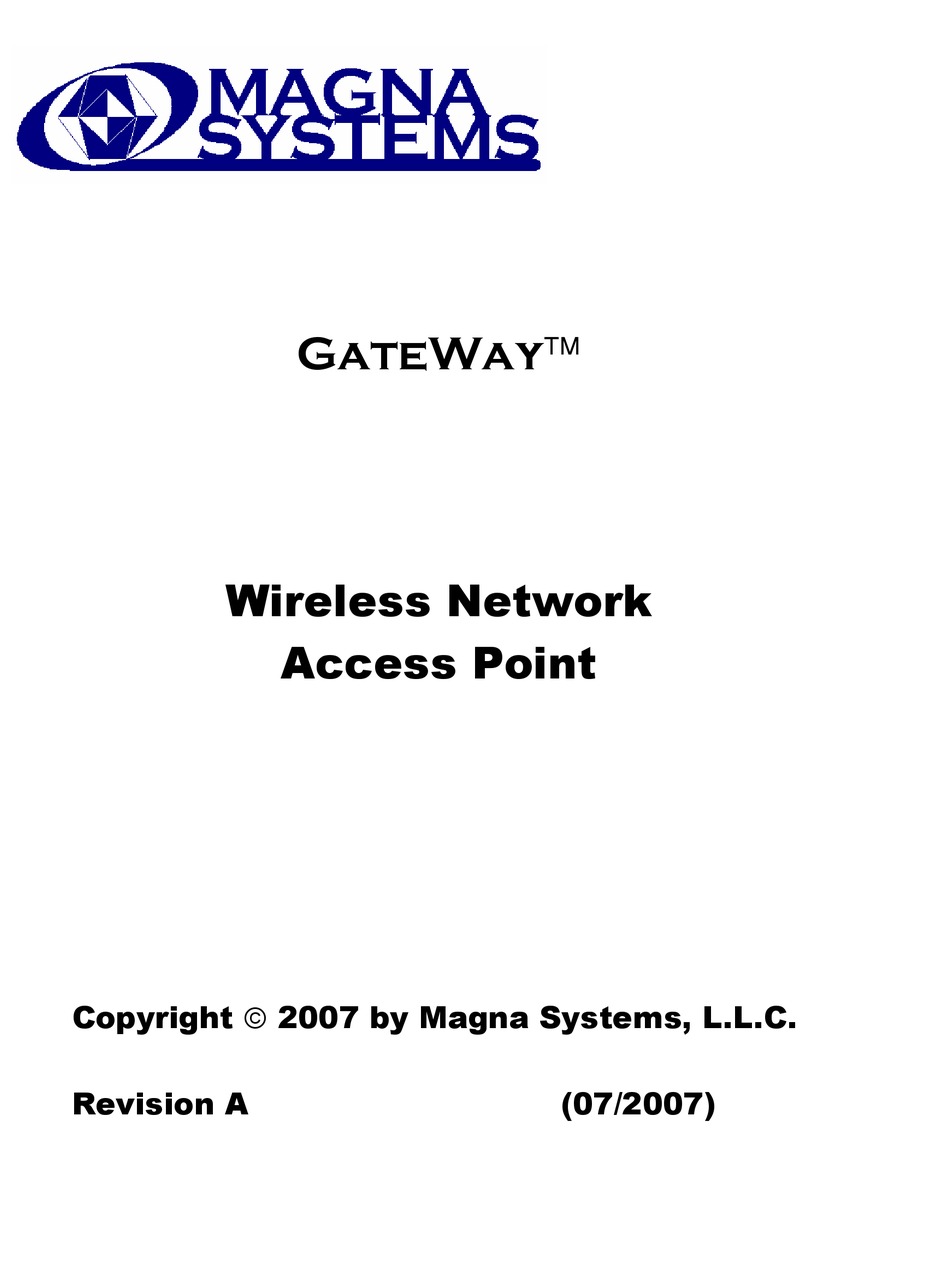

- Page 1 GateWay Wireless Network Access Point Copyright 2007 by Magna Systems, L.L.C. Revision A (07/2007)
- Page 2 Warranty General Terms Magna Systems, L.L.C. warrants this product to be free from defects in material and workmanship for a period of one year from the date of shipment. If this product is found to be defective during the warranty period, the product will either be repaired or replaced at Magna Systems’...
-
Page 3: Symbols Used In This Manual
Magna Systems has not approved any changes or modifications to the ThermoSpyder made by the user. Antenna modification, antenna replacement or use of an antenna not approved by Magna Systems is not authorized. Any changes or modifications could void the user’s authority to operate this equipment. -
Page 4: Important Safety Information
Not Vacuum Compatible The GateWay is not vacuum compatible. Do not use the GateWay in vacuum as this could damage the GateWay and / or contaminate your vacuum chamber and associated hardware. -
Page 5: Table Of Contents
Table of Contents Warranty ......................ii Symbols Used in This Manual ................iii Regulatory Statements..................iii Important Safety Information ................iv Care of Your New GateWay................2 Getting Started ....................3 How the GateWay Works..................5 Troubleshooting....................6 Technical Specifications ..................7 Rev. A... -
Page 6: Care Of Your New Gateway
Do not expose your GateWay to mechanical shock in excess of a three (3) foot drop or vibration in excess of 10 g’s. Cleaning Dirt and dust can be removed from the outside of the GateWay by wiping with a damp cloth. Do not use solvents to clean the GateWay. Maintenance & Service The GateWay has no user serviceable parts and does not require any adjustment by the user. -
Page 7: Getting Started
Users typically perform three types of operations while using the GateWay, namely, connection to a computer, mounting, and running tests. This manual covers only the use of the GateWay. Please refer to the DataLink manual for information on running tests and managing test data. - Page 8 Turning the GateWay OFF During routine use it should not be necessary to turn the GateWay OFF and so THERE IS NO ON / OFF SWITCH. However, if it is anticipated that the GateWay will not be used for an extended period, it may simply be unplugged from the USB port and stored safely in its shipping container.
-
Page 9: How The Gateway Works
How the GateWay Works A simplified block diagram of the GateWay wireless network access point is shown below. Real Flash Time Memory Clock Radio Transceiver USB 2.0 COMPLIAN INTERFACE Status Indicator The GateWay is designed to function as a wireless network access point providing communications and network management functionality. -
Page 10: Troubleshooting
DataLink will display a communication failure message associated with Gateway and request that you close DataLink and reconnect the USB cable to Gateway. You will have to restart the node configuration. Possible Problem- One or more ThermoSpyders have depleted batteries. -
Page 11: Technical Specifications
Technical Specifications GateWay Specifications Network Functionality- up to 50 Number of Nodes: PC Interface- USB 2.0 compatible interface Wireless Network Interface- Half duplex communication 868 / 915 MHz ISM band radio Radio characteristics: +5 dBm maximum TX power RX sensitivity better than -100 dBm Up to 50 m (160’) under optimal environmental conditions...
