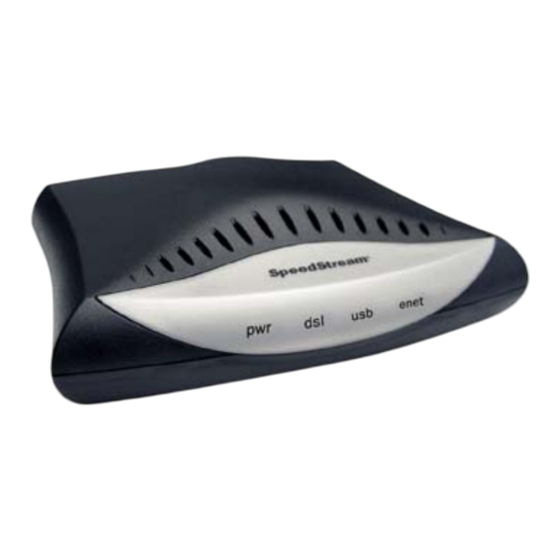

- Page 1 SpeedStream PPPoE Modem User Guide Part No. 007-0810-001...
- Page 2 All rights reserved. Printed in the U.S.A. Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies. Efficient Networks, Inc. shall not be liable for technical or editorial errors or omissions in this document; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.
- Page 3 Software License and Limited Warranty will remain in full force and effect. Any notices or other communications to be sent to EFFICIENT must be mailed by certified mail to the following address: Efficient Networks, Inc. 4849 Alpha Road Dallas, TX 75244 U.S.A.
-
Page 4: Table Of Contents
SpeedStream PPPoE Modem Contents LIST OF ILLUSTRATIONS........................... INTRODUCTION............................About the SpeedStream PPPoE Modem ....................Features and Benefits..........................Hardware Description ..........................General Safety Guidelines .......................... INSTALLING THE MODEM.......................... 3 Minimum System Requirements ....................... Ethernet Port Connectivity (5100/5200 series)..................USB Port Connectivity (5200 series)....................... Hardware Installation .......................... -
Page 5: List Of Illustrations
List of Illustrations Administrative User Setup interface screen ..................13, 16 Enter Network Password dialog box......................Efficient Networks SpeedStream Ethernet Adapter Properties (Windows 2000) dialog box ..... Ethernet Installation Method illustration...................... In-Line Filter illustration ..........................Inserting Network Interface Card illustration.................... -
Page 6: Introduction
SpeedStream PPPoE Modem Introduction Congratulations on your purchase of the SpeedStream PPPoE modem. Efficient Networks is proud to ® provide you with a powerful yet simple communication device for connecting your computer to the Internet. About the SpeedStream PPPoE Modem The SpeedStream PPPoE modem provides high-speed Internet and corporate network access to homes, networked home offices, and small offices. -
Page 7: General Safety Guidelines
SpeedStream PPPoE Modem General Safety Guidelines When using your SpeedStream modem, please observe the following safety guidelines: • Never install telephone wiring during a storm. • Avoid using a telephone during an electrical storm. Lightening increases the risk of electrical shock. •... -
Page 8: Installing The Modem
SpeedStream PPPoE Modem Installing the Modem Minimum System Requirements At a minimum, your computer must be equipped with the following. Ethernet Port Connectivity (5100/5200 series) • A network adapter card (NIC) that supports Ethernet 10/100Base-T full-/half-duplex • Operating system that supports TCP/IP •... - Page 9 SpeedStream PPPoE Modem telephone line, and vice versa. Follow the procedures below to install line filters on any device (telephones, fax machines, caller ID boxes) that shares the same telephone line with your DSL. You will need one of these type filters to connect between the telephone and the wall plate: •...
-
Page 10: Connecting The Cables
SpeedStream PPPoE Modem Connecting the Cables You can connect the SpeedStream 5100 series modem to an existing Ethernet port on your computer. The SpeedStream 5200 series has both Ethernet and USB port connections. SpeedStream 5100 Series SpeedStream 5200 Series Determine the cable to use for your physical connection, and then follow the instructions below for the appropriate installation method. - Page 11 SpeedStream PPPoE Modem Ethernet Installation Method 1. Make sure the modem is not plugged into the electrical outlet. 2. Connect the Ethernet straight-through cable to the Ethernet port on the modem. 3. Connect the other end of the Ethernet cable to the Ethernet port on your computer. 4.
- Page 12 SpeedStream PPPoE Modem USB Installation Method USB Installation Method 1. Make sure the modem is not plugged in to the electrical outlet. 2. Connect the USB cable to the USB port at the rear of the modem. 3. Connect the other end of the USB cable to the USB port on your computer. 4.
-
Page 13: Configuring Computer Network Settings
SpeedStream PPPoE Modem Configuring Computer Network Settings To access the Internet through the SpeedStream PPPoE modem, the TCP/IP protocol must be installed on your computer. If TCP/IP is not already installed on your computer, refer to your system documentation or online help for instructions. The default network settings for the SpeedStream PPPoE modem are: IP Address: 192.168.254.254... - Page 14 SpeedStream PPPoE Modem 4. In the TCP/IP Properties dialog box, click the IP Address tab. 5. On the IP Address tab, make sure that Obtain IP address automatically and Detect connection to network media are selected. 6. Click the DNS Configuration tab. 7.
-
Page 15: Windows Nt 4.0
SpeedStream PPPoE Modem Windows NT 4.0 1. On the Windows taskbar, click Start, then point to Settings, and then click Control Panel. The Windows Control Panel displays. 2. In Control Panel, double-click Network. The Network dialog box displays. 3. On the Protocols tab, select TCP/IP Protocol, and then click Properties. -
Page 16: Windows 2000
SpeedStream PPPoE Modem 5. In the Microsoft TCP/IP Properties dialog box, click the DNS tab. 6. On the DNS tab, delete any IP addresses listed in the DNS Service Search Order box. 7. Click OK twice to save your settings. 8. -
Page 17: Windows Xp
SpeedStream PPPoE Modem Your network adapter may differ Note from this illustration. 5. In the Internet Protocol (TCP/IP) Properties dialog box, make sure that Obtain IP address automatically and Obtain DNS server address automatically are selected. 6. Click OK twice to save your settings. 7. -
Page 18: Configuring The Modem
SpeedStream PPPoE Modem Configuring the Modem Before you can configure your SpeedStream PPPoE modem, the TCP/IP protocol must be installed and configured on your computer. If you need to install TCP/IP, refer to your system documentation or Windows Help. To configure TCP/IP, refer to “Configuring Computer Network Settings”... -
Page 19: Entering The Network Password
SpeedStream PPPoE Modem 3. Enter a password in the New Password box; then enter the same password in the Confirm New Password box. You must enter a password before proceeding. Both user name and password are case-sensitive. Note Be sure to record your user name and password. You will need to use them when you log on again. Any keystroke or combination of keystrokes can be used as a password. -
Page 20: Logging On To A Ppp Session
SpeedStream PPPoE Modem 4. Click OK. The Enter Network Password dialog box closes, and the screen you were trying to access displays. Logging On to a PPP Session After you log on to the Administrative User Setup screen, one of two screens will display. 1. -
Page 21: Changing System User Name And Password
SpeedStream PPPoE Modem name and password. This is especially useful with the Idle Timeout feature. Connect on Demand is non- configurable, but is always enabled. Changing System User Name and Password After you have initially set your user name and password, the System Status screen will display the next time you log on to the Web interface. -
Page 22: Troubleshooting
SpeedStream PPPoE Modem Troubleshooting Connection problems usually occur when the modem’s software configuration contains incomplete or incorrect information. The modem’s diagnostic tools can help you identify and solve many of these problems. Basic Troubleshooting Steps Before contacting Technical Support, you should attempt to resolve the issue by following these steps: 1. -
Page 23: Resolving Specific Issues
If POST passes, the modem continues through the rest of its initialization, and the pwr LED changes to solid green. If the initial POST diagnostic tests fail, the pwr LED will remain red, indicating a POST failure, and will lock the modem. You will need to contact Efficient Networks Technical Support to resolve this issue. -
Page 24: Rebooting The Modem
SpeedStream PPPoE Modem Rebooting the Modem You can shut down and then restart your modem without losing your current configuration settings. 1. From the main menu, click Reboot. The System Reboot screen displays. 2. Click Reboot. The System Reboot screen displays a countdown while processing. -
Page 25: Contacting Technical Support
SpeedStream PPPoE Modem Contacting Technical Support If you still cannot resolve the issue after following the recommended troubleshooting procedures, contact Efficient Networks Technical Support. Telephone: +1 (972) 852-1000 Fax: +1 (972) 852-1001 Email: support@efficient.com Internet: http://www.support.efficient.com... -
Page 26: Technical Specifications
SpeedStream PPPoE Modem Technical Specifications AAL and ATM Support: VCI 0-65535 address range VPI 0-255 address range AAL5 support Certifications: FCC Part 15, Class B CE certification Connectors: DSL interface: RJ-11 or RJ-45 (Europe) Ethernet interface: RJ-45 USB Type B interface (5200 series) Diagnostic LEDs: Power, DSL, Activity, Ethernet status USB status... -
Page 27: Glossary
SpeedStream PPPoE Modem Glossary Acronyms and Terms AAL5 ATM Adaption Layer 5 Asynchronous Transfer Mode Central Office DHCP Dynamic Host Configuration Protocol Domain Name Service Digital Subscriber Line Ethernet Network standard for LAN communication Firmware Software, in binary form, stored within a flash PROM Gateway Router Graphical User Interface... -
Page 28: Technical Concepts
SpeedStream PPPoE Modem Technical Concepts This section provides very brief descriptions of some of the features available on the SpeedStream PPPoE modem. Asynchronous Transfer Mode (ATM) ATM is a fast, cell-based technology defined by the ITU-T. It works by taking an ordinary, variable- length data packet and segmenting it into 53-byte cells prior to transmission. -
