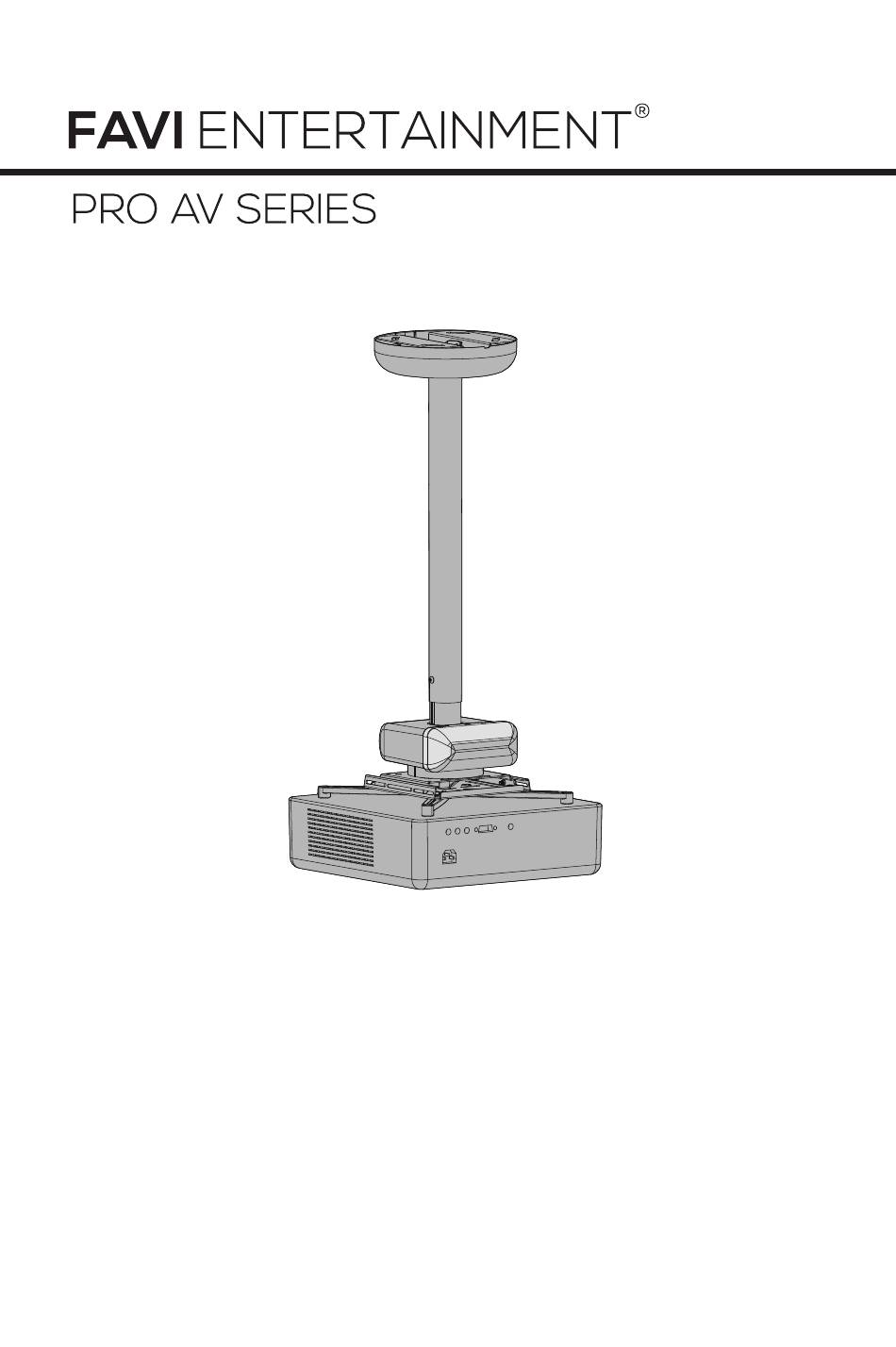

Model: FPM2338HT1W
• Be sure to read this manual thoroughly before installing.
• Sufficient expertise is required for installing this projector ceiling mount.
• Do not use the projector ceiling mount for other purposes than what it is designed for.
• Keep this manual available for future reference.
Advertisement
Related Manuals for FAVI Pro AV Series
Summary of Contents for FAVI Pro AV Series
- Page 1 Model: FPM2338HT1W • Be sure to read this manual thoroughly before installing. • Sufficient expertise is required for installing this projector ceiling mount. • Do not use the projector ceiling mount for other purposes than what it is designed for. •...
- Page 2 IMPORTANT SAFTY NOTES 1. Be sure to read this manual thoroughly before installing projector ceiling mount. 2. Only qualified technicians (two or more) should install or dismount the projector from the ceiling mount. 3. For safety reasons, check the strength of the ceiling before installation. If ceiling is not strong enough to hold ceiling mount and projector weight, do not install until ceiling is properly reinforced for installation.
- Page 3 INSTALLING CEILING MOUNT Center Line Wooden Stud Remove the ceiling plate cover Loose the screws and remove the bracket Remove the from ceiling mount decorative cover CAUTION: Make sure both mounting holes are centered to the stud. Loose the screws and remove the projector mounting plate Φ...
- Page 4 INSTALLING CEILING MOUNT (Cont.) Ensure the ceiling wall is not more than 30 Use the screw to attach the adjustment part of the mount to the extension tube. ATTACHING PROJECTOR TO MOUNT A. Using the mounting arm: Projector mounting plate - OR - Mounting arm B.
- Page 5 ATTACHING PROJECTOR TO MOUNT (Cont.) Move the projector mounting plate and adjust the forward/backward slide. Adjust forward/ backward slide Adjustment direction Connect the power cable and other cables to the projector. Connect power cable and other cables to projector. ADJUST VERTICAL TILT Adjustment buttons Adjustment direction ADJUST HORIZONTAL ROLL...
- Page 6 ADJUST HORIZONTAL ROTATION Adjustment buttons Adjustment direction ADJUST PROJECTOR HEIGHT Locking screws Adjustment direction PUT ON DECORATIVE COVER PRODUCT INFORMATION Model: FPM2338HT1W Net weight: 6-lb Capacity: 55-lb Adjustable Angle: Longitudinal inclination, Level angle, Yaw angle ± (3 directions) Adjustable Range: From the installation plate center vertical distance 20-in ~ 40-in...
