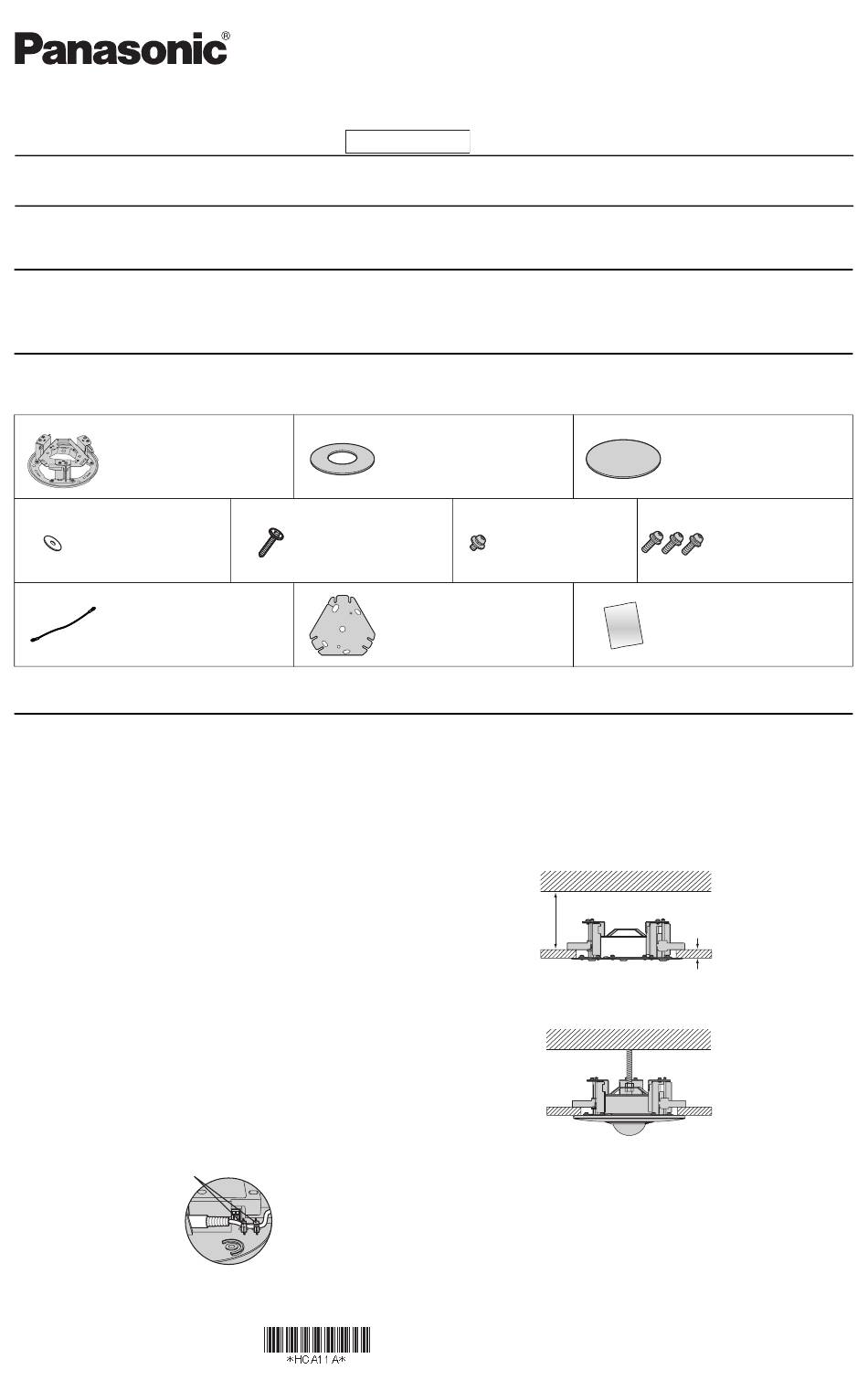

Panasonic BB-HCA11A Installation Manual

Installation Guide
Ceiling Flush Mount Bracket
BB-HCA11A
Model No.
Please read the Operating Instructions included with the camera before proceeding.
• This document (Installation Guide) explains how to install the BB-HCM701A, BB-HCM705A Network Camera using the Ceiling Flush Mount Bracket, and install
the bracket in a ceiling.
Abbreviations
• The Ceiling Flush Mount Bracket is referred to as "the bracket" in this document.
• The Network Camera is referred to as "the camera" in this document.
• The term "SD memory card" is used in this document to refer to SD memory cards and SDHC memory cards.
Preparation
1. Confirm the following items are included in the bracket's packaging.
• Additional pieces can be ordered by calling 1-800-332-5368.
Ceiling Flush Mount Bracket
(1 pc.)
Washer (1 pc.)
Order No. XWG4F16VW
Used when securing the
safety wire to the ceiling.
Safety Wire (1 pc.)
Order No. PQME10080Z
Used to secure the bracket when
mounting it.
2. You will need the following additional items to install the bracket.
– 1 anchor bolt and 2 nuts (see step 2 and 5 on page 2)
Important Information Regarding Camera Mounting
Please read the following information before mounting the camera. Consult an authorized dealer for mounting.
Caution
• Make sure you attach the safety wire when mounting the bracket and the
camera to prevent them from falling.
Note
• This product should only be used with the BB-HCM701A, BB-HCM705A
Network Camera.
• If using an SD memory card, insert the card before installing the camera in
the bracket.
• Use screws that are appropriate for the material of ceiling.
• The included screws are for use with wooden ceilings only.
• To ensure that camera images are displayed properly, do not mount the
bracket on an incline.
• The camera's MAC address and serial number are printed on the bottom of
the camera and are needed in order for camera configuration and
maintenance. Make a note of both of them for before mounting the camera.
• Mounting and cabling instructions described in this document follow
generally accepted guidelines suitable for residential installations. In some
areas, commercial and industrial installations are regulated by local or state
ordinances. For such installations, contact your local building department or
building inspector for more details.
• Camera images can be viewed in relatively dark areas, however, image
quality decreases when viewing dark images. We recommend using
supplemental lighting for best results.
• Prolonged exposure to direct sunlight or halogen light may damage the
camera's image sensor. Mount the camera appropriately.
• When mounting the camera, make sure to wrap the AC adaptor cord (if used)
around the hooks as shown to ensure secure connections.
Cable hook
© Panasonic System Networks Co., Ltd. 2009
PNQX2088XA KK0609CQ2020
Indoor Use Only
Ceiling Mounting Cover (1 pc.)
Order No. PNKV1070Z1
Used when mounting the camera
on a ceiling.
Screw A (1 pc.)
Order No. XTB4+20AFJ
Used to secure the safety
wire to the ceiling.
Dust Protection Sheet (1 pc.)
Order No. PNHX1220Z
Used as a dust cover.
• Do not directly touch the lens cover. Clean the lens cover with a dry and soft
cloth if necessary.
• The pull-out strength of the installation area must be at least 294 N (30 kgf)
per screw.
• There must be at least 80 mm (3 1/8 inches) of space above the ceiling board
where this product will be installed.
• The ceiling board must be no more than 40 mm (1 9/16 inches) thick.
• The illustration below is an example of a completed installation, when looking
at the side of the camera.
• If for some reason the camera is no longer used, uninstall the bracket to
avoid the risk of the camera and/or bracket falling.
• No responsibility will be taken by our company with respect to consequences
resulting from the use, damage or both of the bracket.
Please read this document before using the product, and save this
document for future reference.
Panasonic Network Camera Website:
http://panasonic.net/pcc/ipcam/
Screw C (1 pc.)
Order No. XYN4+F6FJ
Used for connecting the
safety wire to the
bracket.
At least 80 mm (3 1/8 inches)
Ceiling board: Max. 40 mm (1 9/16 inches)
Template (1 pc.)
Order No. PNPD1286Z
Used as a references when
making a hole in the ceiling.
Screw D (3 pcs.)
Order No. XYN4+J10FJ
Used to secure the camera
to the bracket.
Installation Guide
(this document) (1 pc.)
