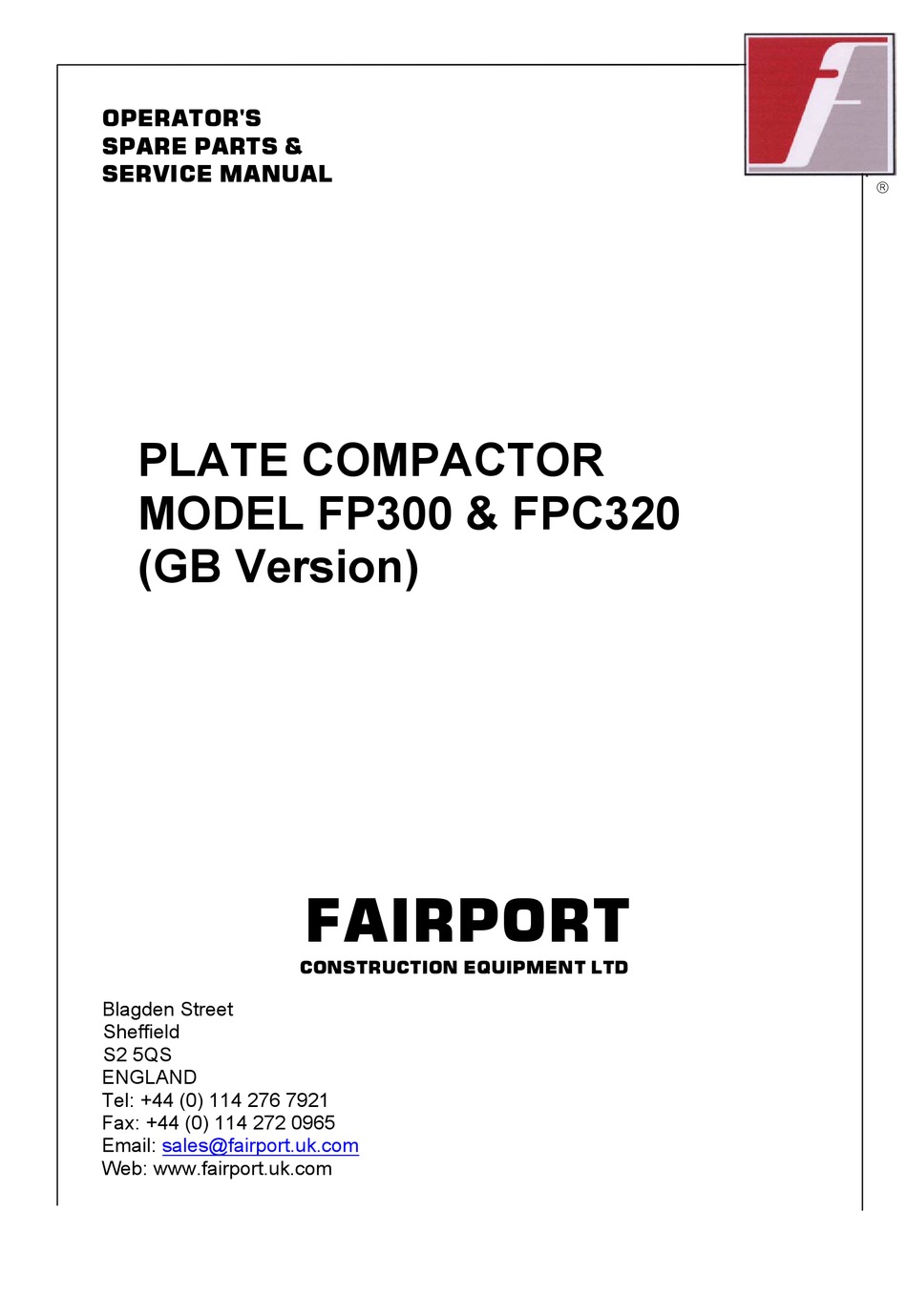

OPERATOR'S
SPARE PARTS &
SERVICE MANUAL
PLATE COMPACTOR
MODEL FP300 & FPC320
(GB Version)
Blagden Street
Sheffield
S2 5QS
ENGLAND
Tel: +44 (0) 114 276 7921
Fax: +44 (0) 114 272 0965
Email:
sales@fairport.uk.com
Web: www.fairport.uk.com
FAIRPORT
CONSTRUCTION EQUIPMENT LTD
!

Advertisement

Table of Contents
loading

Related Manuals for Fairport FP300

Summary of Contents for Fairport FP300

  • Page 1 OPERATOR'S SPARE PARTS & SERVICE MANUAL PLATE COMPACTOR MODEL FP300 & FPC320 (GB Version) FAIRPORT CONSTRUCTION EQUIPMENT LTD Blagden Street Sheffield S2 5QS ENGLAND Tel: +44 (0) 114 276 7921 Fax: +44 (0) 114 272 0965 Email: sales@fairport.uk.com Web: www.fairport.uk.com...

  • Page 2: Table Of Contents

    CONTENTS PAGE SAFETY ………………………………………………………………………… 2 SAFETY PICTOGRAMS USED ON FAIRPORT EQUIPMENT ………….. 2 TECHNICAL DATA ……………………………………………………………. 3 USING THE MACHINE FOR THE FIRST TIME……………………………. 4 ROUTINE MAINTENANCE …………………………………………………… 4 STARTING THE ENGINE ……………………………………………………. 5 OPERATOR INSTRUCTIONS ……………………………………………….. 5 VEE BELT ADJUSTMENT ……………………………………………………. 5 WARRANTY CONDITIONS AND CLAIMS PROCEDURE ………………..

  • Page 3: Safety

    Turn off fuel when not using machine. Wear protective footwear, ear defenders and gloves. Comply with site safety regulations. Check condition and tightness of anti-vibration mounts between engine plate and base plate before lifting. SAFETY PICTOGRAMS USED ON FAIRPORT EQUIPMENT...

  • Page 4: Technical Data

    TECHNICAL DATA ENGINE MODEL ENGINE ENGINE POWER MANUFACTURER MODEL (HP/kW) FPC300 Robin EH09 3.0/2.2 FPC320 Honda GX100 3.0/2.2 DIMENSIONS MODEL HEIGHT- LENGTH – L WIDTH – W CONTACT WEIGHT (mm) (mm) (mm) AREA (sq. m) (kg) FPL300 614 550.2 0.095 FPL320 614 550.2 0.10...

  • Page 5: Using The Machine For The First Time

    USING THE MACHINE FOR THE FIRST TIME When the machine is delivered from Fairport it will have no oil in the engine. Please refer to the Engine Manufacturers Manual issued with the machine for instructions on filling the engine with the correct type and quantity of oil.

  • Page 6: Starting The Engine

    STARTING THE ENGINE Check oil level. Turn fuel tap on. Put speed control lever to tick-over. If engine is cold, close the choke (petrol engines only). Turn engine switch to ON(1) position. Pull the starter rope toggle lightly until resistance is felt, then pull briskly using quick short pull.

  • Page 7: Warranty Conditions And Claims Procedure

    WARRANTY CONDITIONS AND CLAIMS PROCEDURE All products supplied by Fairport Construction Equipment Ltd (hereafter referred to as FCE) are warranted to be free of defects due to faulty materials or workmanship for a period of 12 months from the date of original despatch from FCE or as specified below: Hydraulic hoses and hydraulic couplings –...

  • Page 8: Repairs And Estimates

    given for the repair and the conditions under the section headed REPAIRS AND ESTIMATES will apply. In the customer’s interest, goods must be accompanied by documentation detailing the nature of the fault or its symptoms. Phrases such as ‘Faulty’ are unacceptable and will result in delays and possible charges to defray costs incurred in identifying the fault.

  • Page 9: Parts List

    PARTS LIST – MACHINE DRIVE SYSTEM Parts List Part Code Description Qty Required W14644 Belt Guard W87300 Vee Belt W87061 Clutch (FPC320) W87060 Clutch (FPC300) P80167 1/4 UNF x 1” Setscrew (FPC320) W408/5/16 5/16” UNF x 1” Setscrew (FPC300) W432/6 M6 Spring Washer (FPC320) W432/8 M8 Spring Lock Washer (FPC300)
  • Page 10 PARTS LIST – MACHINE Parts List Part Code Part Description Qty Required W14663 Frame W81925 Honda GX100 (FPC320) W81800 Robin EH09 (FPC300) W14662 Engine Bed Plate W14680 Engine Fixing Plate W418/8 M8 Washer W437/8/30 M8 x 30 Hex Setscrew W440/8 M8 Nut W432/8 M8 Spring Lock Washer...
  • Page 11 PARTS DIAGRAM – MACHINE...
  • Page 12 PARTS LIST – BASEPLATE ASSEMBLY Parts List Part Code Description Qty Required W14653 End Cap W14679 Gasket W81090 Bearing W14661-2 Eccentric Weight W14660 Base (FPC320) W14678 Base (FPC300) W14764 Base (FPC350) W14765 Base (FPC400) W87301 Key 8 x 7 x 15 W81270 Oil Seal (Up To Serial No.
  • Page 13 PARTS DIAGRAM – BASEPLATE ASSEMBLY...
  • Page 14 PARTS LIST – HANDLE ASSEMBLY Parts List Part Code Part Description Qty Required W14667 Handle W88913 AV Mount W437/8/16 M8 x 16 Hex Setscrew W480/8 M8 Nyloc Nut W432/8 M8 Spring Lock Washer W14668 Top Plate W14683 Handle Pivot Bolt W88912 Handle Bush W418/8...

  • Page 15: Polypad Mat Kit

    PARTS DIAGRAM – HANDLE ASSEMBLY...

  • Page 16: Water Sprinkler Kit

    PARTS LIST – PAVING MAT MIT Model Parts List Part Code Part Description FPC300 W14724 Polypad W14728 Clamp bracket FPC320 W14725 Polypad W14729 Clamp Bracket Common M10 X 40 Coach Bolts W480/10 M10 Nyloc Nut W418/10 M10 Washer The paving mat kits have been designed to allow the machine to be used for compacting hard paving.
  • Page 17 PARTS LIST – WATER SPRINKLER KIT Model Parts List Part Code Part Description Qty Required FPC300 ------------- W14693 Spray Bar Comp W14692 Spray Bar W80566 Insert FPC320 ------------- W14692 Spray Bar Comp W14685 Spray Bar W80566 Insert Common W14670 Water Bottle W88460 ¼...
  • Page 18 PARTS DIAGRAM – WATER SPRINKLER KIT...

  • Page 19: Ec Declaration Of Conformity

    EC DECLERATION OF CONFORMITY WE, FAIRPORT CONSTRUCTION EQUIPMENT LTD, BLAGDEN ST, SHEFFIELD, SOUTH YORKSHIRE, S2 5QS DECLARES THAT THE PRODUCT: FPC320; FITTED WITH A HONDA GX100 ENGINE ENGINE POWER; 3.0HP/2.2kW at 3600RPM SERIAL No. ……………………………… CONFORMS TO THE FOLLOWING DIRECTIVE: 89/336/EEC, 89/392/EEC, 91/368/EEC, 2000/14/EC NOTIFIED BODY;...
