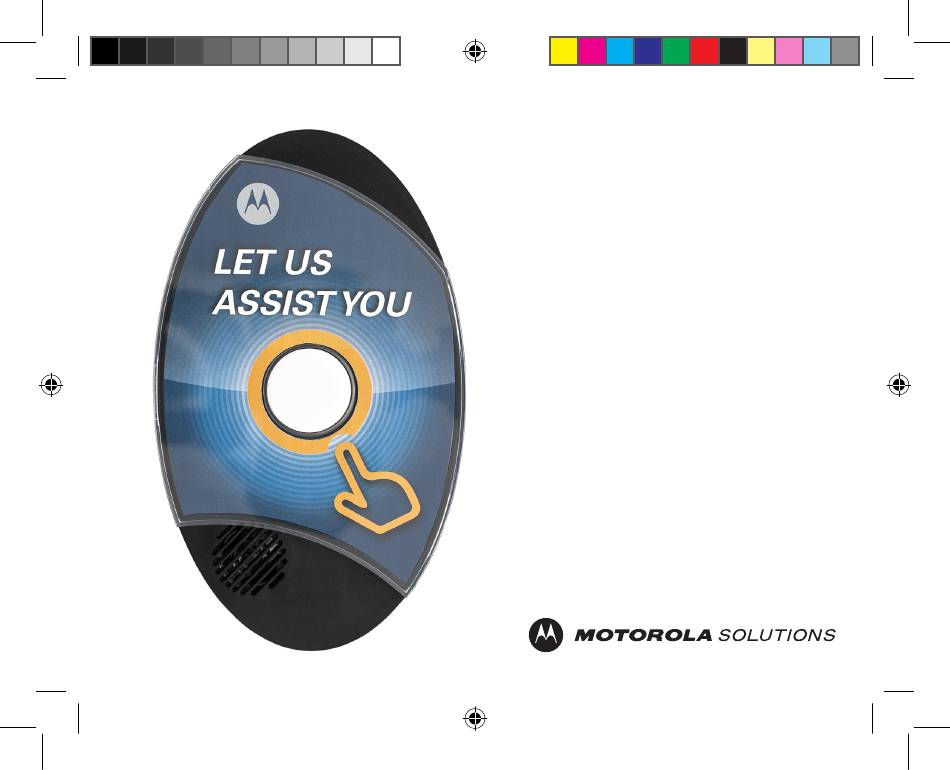

- Page 1 CB200-M User Guide Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 1 8/24/2017 7:34:47 PM...
-
Page 2: Table Of Contents
TABLE OF CONTENTS RF Safety & FCC..........................Safety & Information........................Computer Software Copyrights......................Documentation Copyrights....................... Battery Installation..........................Controls Interface ..........................LCD Display............................LCD Wakeup............................Scrolling Menu..........................Frequency Selection.......................... Code Selection........................... Message Recording.......................... Message Playback..........................Volume Adjusting..........................LCD Contrast............................User Defined Frequencies........................Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 2 8/24/2017 7:34:47 PM... - Page 3 TABLE OF CONTENTS Software Version..........................Call Cycles............................Cycle Delay............................Inverted Codes..........................Repeater Frequencies........................24-25 Mounting the Device........................26-28 Frequency Tables..........................29-30 Code Tables............................31-33 Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 3 8/24/2017 7:34:47 PM...
-
Page 4: Rf Safety & Fcc
RF SAFETY & FCC COMPLIANCE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 5: Safety & Information
SAFETY & INFORMATION The CB200 requires care in mounting and servicing. Observing the following precautions will ensure the proper function and safety of the unit. CAUTION! • Do not screw through the device to mount to a surface. t off •... -
Page 6: Computer Software Copyrights
Motorola Solutions computer programs stored in semiconductor memories or other media. Laws in the United States and other countries preserve for Motorola Solutions certain exclusive rights for copyrighted computer programs including, but not limited to, the exclusive right to copy or reproduce in any form the copyrighted computer program. -
Page 7: Documentation Copyrights
Motorola Solutions does not assume any liability arising out of the applications or use of any product or circuit described herein; nor does it cover any license under its patent rights, nor the rights of others. -
Page 8: Battery Installation
INSTALLING THE BATTERIES BATTERY The CB200 uses six (6) AA batteries. HOLDER 1. Remove the battery holder from cardboard packaging. COPPER 2. Orient the battery holder with the CONTACT four copper contacts pointed towards you. 3. Insert batteries with positive (+) pointing towards the end of the holder BATTERY with four copper contacts. -
Page 9: Controls Interface
CONTROL INTERFACE Available Controls and Components 1. Menu Button 2. Enter Button 3. Esc Button 4. Display 5. Microphone 6. Wake Up Button 7. Call Button Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 9 8/24/2017 7:34:47 PM... -
Page 10: Lcd Display
LCD DISPLAY Initial Power-Up Once the batteries are installed in the unit, the Call Button blinks and LCD display shows INTERFACE ENA Interface ENA. -ESC to EXIT- If the USB Serial Interface is not to be used, press the ESC button to exit this mode. The default status screen will be shown on the display. -
Page 11: Lcd Wakeup
LCD WAKEUP The screen is in a blank “sleep” state during most operation, even when the system is operating. This is a feature to increase battery life and prevent tampering. To enter the Menu options, press the Wakeup button on the unit. The large round button blinks to indicate it is awake. -
Page 12: Scrolling Menu
SCROLLING MENU You can setup preferred features on CB200 by scrolling through the menu options. Press the Menu buttons to scroll through menus. Menu options are presented in the order below, and the list repeats continuously. Set Radio Frequency Set Radio Code Message Record Message Playback Volume Adjust... -
Page 13: Frequency Selection
RADIO FREQUENCY SELECTION Set Radio Frequency When the unit is awake and displaying the Status Screen, press the UP or Down Menu buttons until “Radio Freq?” appears. Press Enter Press Up or Down to select new frequency Press Enter to select new frequency Press Enter to select new frequency... -
Page 14: Code Selection
RADIO CODE SELECTION Set Code Frequency When the unit is awake and displaying the Status Screen, press the UP or Down Menu buttons until “Radio Code?” appears. Press Enter Radio Code? Press Up or Down to Old:12 100.0 Hz New:12 100.0 Hz select new code Press Enter to select new Old:12 100.0 Hz... -
Page 15: Message Recording
MESSAGE RECORDING Press Up or Down button until “Msg Record?” appears. Press Enter Msg Record? Press Up or Down to find Select Message? Aux Message message to record. Press Enter to select mes- Select Message? Local Message sage to record. Hold Enter button to record Hold ENTER Btn To Record Msg... -
Page 16: Message Playback
MESSAGE PLAYBACK Press Up or Down button until “Msg Playback?” appears. Press Enter Msg Playback? Press Up or Down to find Select Message? Local Message message to playback. Press Enter to select Select Message? Radio Message message to playback. Select new message to -Playback Act- Radio Message playback or press Esc to exit. -
Page 17: Volume Adjusting
VOLUME ADJUSTMENT Press Up or Down button until “Volume Adjust?” appears. Press Enter Volume Adjust? Press Up or Down to select which volume Speaker Volume? to adjust, then press Enter. Press Up or Down until desired volume -Speaker Vol- Vol(1-63): 45 selection is shown. -
Page 18: Lcd Contrast
LCD CONTRAST Press Up or Down button until “LCD Contrast?” appears. Press Enter LCD Contrast? Press Up or Down until desired contrast -LCD Contrast- (0-15): 0 selection is shown. The contrast settings take place immediately. Press Esc to exit. If the need arises to adjust the LCD contrast, check the batteries first. The batteries may be too weak to operate the unit correctly. -
Page 19: User Defined Frequencies
USER DEFINED FREQUENCIES If the radios you are using are set to frequencies not listed in our predefined set, you can reset them in this area. There are placeholders for 5 channels, 57-61. Press Up or Down button until “User Def Freq?” appears. Press Enter User Def Freq? Press Up or Down to select which memory... -
Page 20: Software Version
SOFTWARE VERSION You may be asked by a field support or technical support personnel to determine the CB200 device’s software version. Press Up or Down button until “Software Ver?” appears. Press Enter The software version is shown Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 20 8/24/2017 7:34:48 PM... -
Page 21: Call Cycles
CALL CYCLES Call Cycles refers to the repeating radio broadcasts that will occur when the call button is active. Press Up or Down button until “Call Cycles?” appears. Press Enter Call Cycles? Press Up or Down to increase or decrease Old: 2 cycles New: 2 cycles the Call Cycle selection. -
Page 22: Cycle Delay
CYCLE DELAY Call Delay refers to the delay (in seconds) between repeating radio broadcasts that occur when the call button (or aux button) is active. Press Up or Down button until “Cycle Delay?” appears. Press Enter Cycle Delay? Press Up or Down to increase or decrease Old: 45 sec New: 45 sec the Cycle Delay selection. -
Page 23: Inverted Codes
INVERTED CODES When selecting digital CTCSS (squelch) codes, some receiving units may require inverted Octal numeric codes. Typically, receivers use the non-inverted codes. CB200 is set to non-inverted by default. Press Up or Down button until “Inverted Codes?” appears. Press Enter Press Up or Down to select between NORMAL and INVERTED. -
Page 24: Mounting The Device
MOUNTING THE DEVICE The CB200 can be mouted to the wall using the included 3M DuoLock strips or by using the optional wall mounting bracket. Using 3M DuoLock Ensure both the back of the callbox and the area of the surface that is being attached to is clean, flat, and dry. - Page 25 3. Once the callbox appears aligned, firmly press it to the wall in one motion. Note: The callbox is now removable by applying firm pressure around the exterior edge of the unit. For permanent and tamper proof mounting, please use the mounting bracket available from your Motorola CB200 distributor. Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 25 8/24/2017 7:34:48 PM...
- Page 26 MOUNTING THE DEVICE Optional Mounting Bracket WALL MOUNTING PLATE 1. Attach mounting rails [4] to the CB200. 2. Attach triangle shaped wall plate [3] securely to wall, using correct hardware for the application (dry wall anchors, masonry anchors) [1]. 3. Slide the callbox over the mounted wall mounting plate.
- Page 27 FREQUENCY SELECTION CHART Freq. Freq. Value Freq. Freq. Value Freq. Freq. Value (MHz) (MHz) (MHz) 464.5000 461.1375 462.8125 464.5500 461.1625 462.8375 467.7625 461.1875 462.8625 467.8125 461.2125 462.8875 467.8500 461.2375 462.9125 467.8750 461.2625 464.4875 467.9000 461.2875 464.4875 467.9250 461.3125 464.5375 RAIL 461.0375 461.3375 464.5625...
- Page 28 FREQUENCY SELECTION TABLE Freq. Freq. Value Freq. No. Freq. Value Freq. No. Freq. Value (MHz) (MHz) (MHz) 466.1125 467.8375 User Defined 466.1625 467.8625 466.1625 467.8875 466.1875 467.9125 466.2125 469.4875 466.2375 469.5125 466.2625 469.5375 466.2875 469.5625 466.3125 User Defined 466.3375 User Defined 466.3625 User Defined 467.7875...
- Page 29 CTCSS CHART (ANALOG) Code Hz Code Hz Code Hz Code Hz 67.0 103.5 241.8 156.7 71.9 107.2 162.2 250.3 74.4 110.9 167.9 77.0 114.8 173.8 79.7 118.8 179.9 82.5 123.0 186.2 85.4 127.3 192.8 88.5 131.8 203.5 91.5 136.5 210.7 94.8 141.3 218.1...
- Page 30 CTCSS CHART (DIGITAL) Code Code Code Code Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 30 8/24/2017 7:34:48 PM...
- Page 31 CTCSS CHART (DIGITAL) Code Code Code Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 31 8/24/2017 7:34:48 PM...
- Page 32 NOTES Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 32 8/24/2017 7:34:48 PM...
- Page 33 NOTES Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 33 8/24/2017 7:34:48 PM...
- Page 34 Motorola_CB200_SMBL_REV5_08242017_FCC_Test.indd 34 8/24/2017 7:34:48 PM...
