Cobra GCT300 Owner's Manual

Garden cart trolley

Download this manual

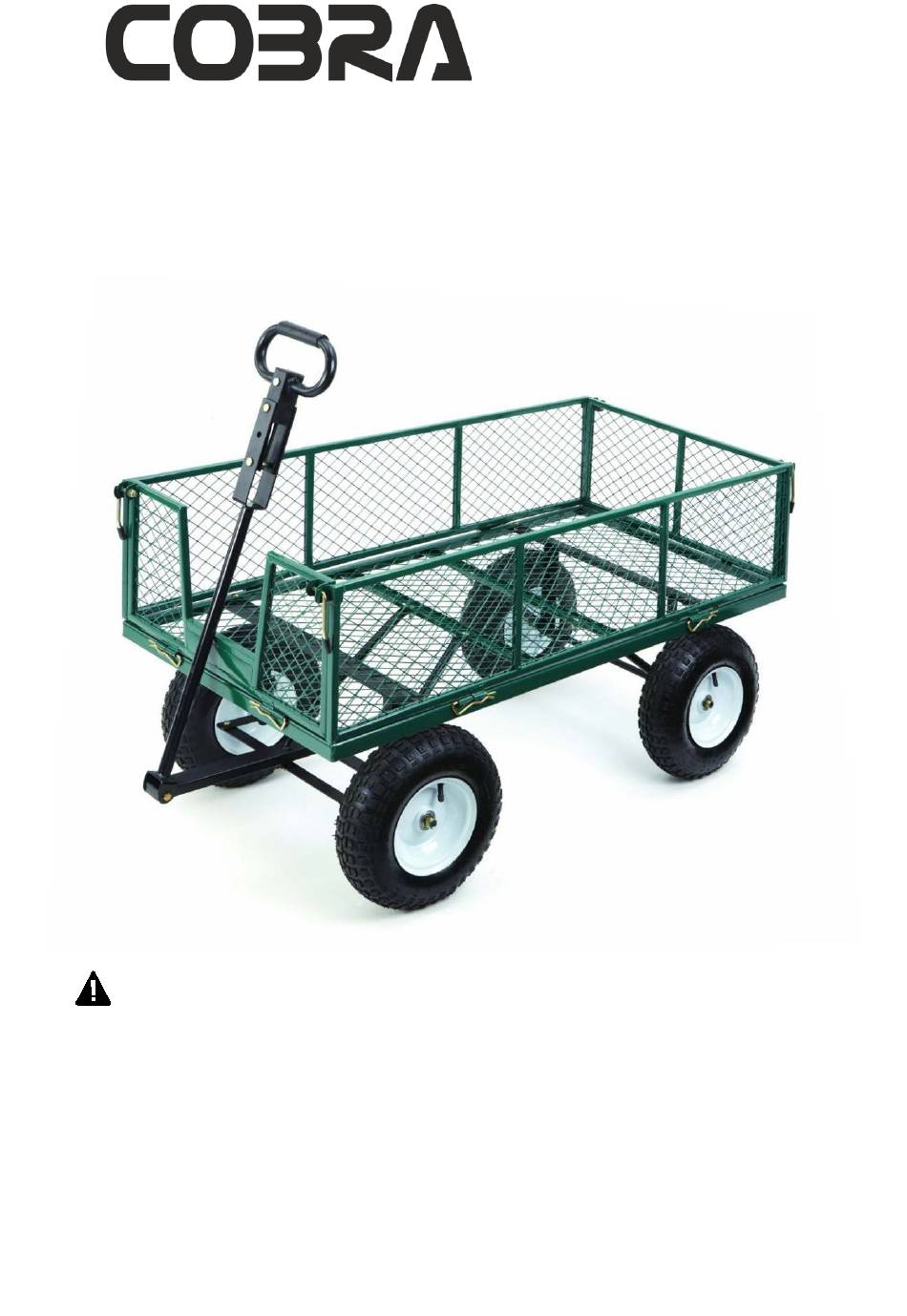

MODEL: GCT300

GARDEN CART TROLLEY

OWNERS MANUAL

CAUTION:

Before using this product, please read this manual carefully to understand the proper use of

your garden cart. Please keep this manual for future reference.

PLEASE NOTE: NEVER CARRY PASSENGERS IN THE GARDEN CART TROLLEY

Product colours may vary.

Table of Contents

Page 1 MODEL: GCT300 GARDEN CART TROLLEY OWNERS MANUAL CAUTION: Before using this product, please read this manual carefully to understand the proper use of your garden cart. Please keep this manual for future reference. PLEASE NOTE: NEVER CARRY PASSENGERS IN THE GARDEN CART TROLLEY...
Page 2: Exploded Drawing For Assembly
EXPLODED DRAWING FOR ASSEMBLY...
Page 3: Parts And Hardware Identification
PARTS AND HARDWARE IDENTIFICATION MAIN FRAME PARTS 1. Bed - (1) 2. sides - (2) 3. Front - (1) 4. Back - (1) 5. 10" x 3.5 Wheels - (4) REAR SUPPORT ASSEMBLY 6. Rear Axle Support - (1) 7. Left Rear Axle Brace - (1) 8.
Page 4: Importantant Safety Instructions
IMPORTANTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS CAREFULLY BEFORE USE. Do not allow children to use the Garden Cart Trolley unsupervised. It is NOT a toy. Always distribute payload evenly over the surface of the bed. Do not lay any items on top of the fence. Lower the fence side panels before loading objects into the Garden Cart Trolley.
Page 5 STEP 4 Install the Wheels in the following order. Place the Wheel onto the axle with the valve stem facing out. Use the (12mm) washer and spring washer and then the (12mm) Nut to secure the wheel. Tighten Securely. STEP 5 Turn the Garden Cart Trolley upright onto its wheels. Attach the Tractor Pull Handle Yoke Washers and the Plastic coupling using the (8 x60mm) pull handle bolt, (8mm) washer and nut.
