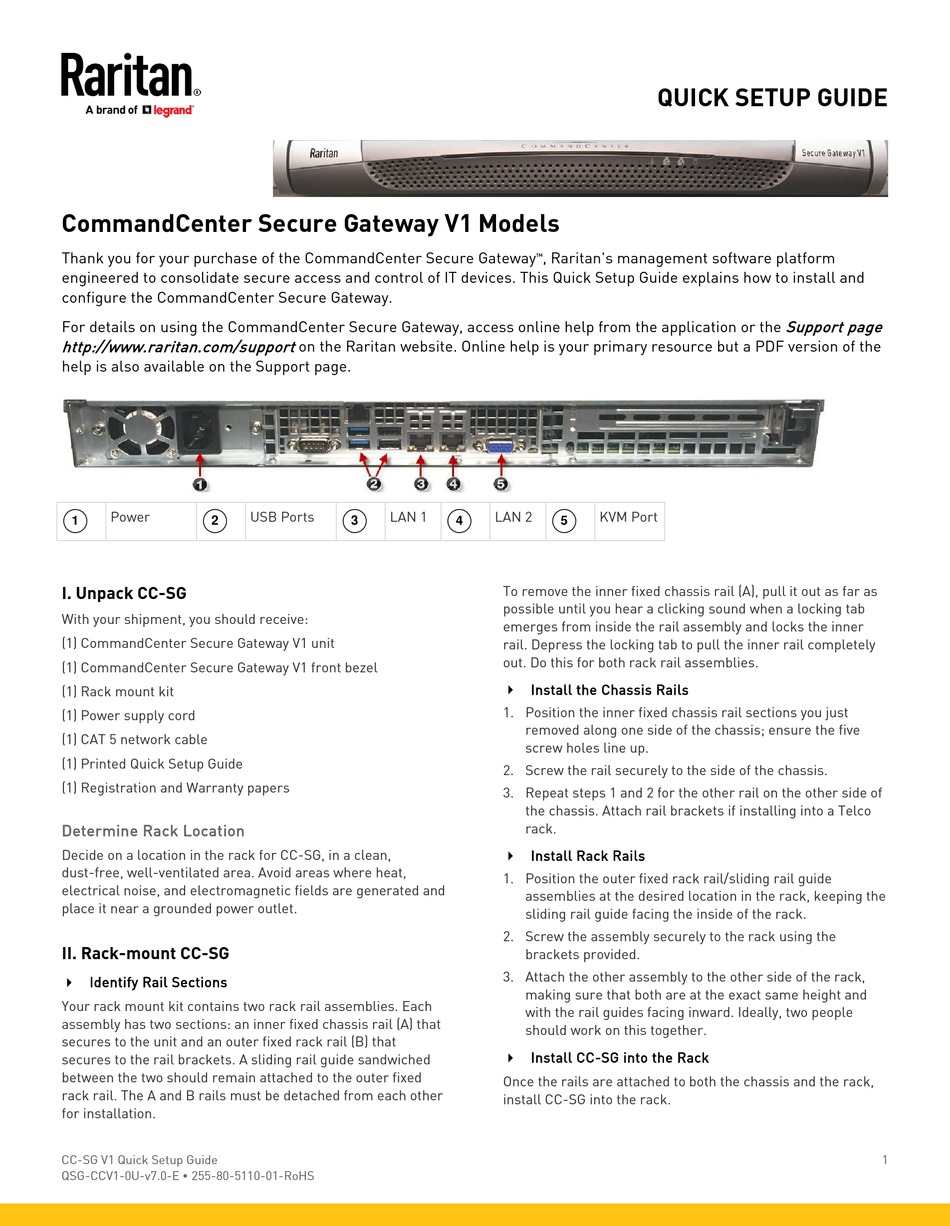

Raritan CommandCenter Secure Gateway CC-SG V1 Quick Setup Manual

CommandCenter Secure Gateway V1 Models
Thank you for your purchase of the CommandCenter Secure Gateway
engineered to consolidate secure access and control of IT devices. This Quick Setup Guide explains how to install and
configure the CommandCenter Secure Gateway.
For details on using the CommandCenter Secure Gateway, access online help from the application or the
http://www.raritan.com/support
help is also available on the Support page.
Power
1 2
I. Unpack CC-SG
With your shipment, you should receive:
(1) CommandCenter Secure Gateway V1 unit
(1) CommandCenter Secure Gateway V1 front bezel
(1) Rack mount kit
(1) Power supply cord
(1) CAT 5 network cable
(1) Printed Quick Setup Guide
(1) Registration and Warranty papers
Determine Rack Location
Decide on a location in the rack for CC-SG, in a clean,
dust-free, well-ventilated area. Avoid areas where heat,
electrical noise, and electromagnetic fields are generated and
place it near a grounded power outlet.
QS Rule
II. Rack-mount CC-SG
 Identify Rail Sections
Your rack mount kit contains two rack rail assemblies. Each
assembly has two sections: an inner fixed chassis rail (A) that
secures to the unit and an outer fixed rack rail (B) that
secures to the rail brackets. A sliding rail guide sandwiched
between the two should remain attached to the outer fixed
rack rail. The A and B rails must be detached from each other
for installation.
CC-SG V1 Quick Setup Guide
QSG-CCV1-0U-v7.0-E  255-80-5110-01-RoHS
on the Raritan website. Online help is your primary resource but a PDF version of the
USB Ports LAN 1
3
, Raritan's management software platform
™
LAN 2 KVM Port
4 5
To remove the inner fixed chassis rail (A), pull it out as far as
possible until you hear a clicking sound when a locking tab
emerges from inside the rail assembly and locks the inner
rail. Depress the locking tab to pull the inner rail completely
out. Do this for both rack rail assemblies.
 Install the Chassis Rails
1. Position the inner fixed chassis rail sections you just
removed along one side of the chassis; ensure the five
screw holes line up.
2. Screw the rail securely to the side of the chassis.
3. Repeat steps 1 and 2 for the other rail on the other side of
the chassis. Attach rail brackets if installing into a Telco
rack.
 Install Rack Rails
1. Position the outer fixed rack rail/sliding rail guide
assemblies at the desired location in the rack, keeping the
sliding rail guide facing the inside of the rack.
2. Screw the assembly securely to the rack using the
brackets provided.
3. Attach the other assembly to the other side of the rack,
making sure that both are at the exact same height and
with the rail guides facing inward. Ideally, two people
should work on this together.
 Install CC-SG into the Rack
Once the rails are attached to both the chassis and the rack,
install CC-SG into the rack.
