MINI COMPONENT SYSTEM
MODEL
CD-G14000

OPERATION MANUAL

T
hank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.

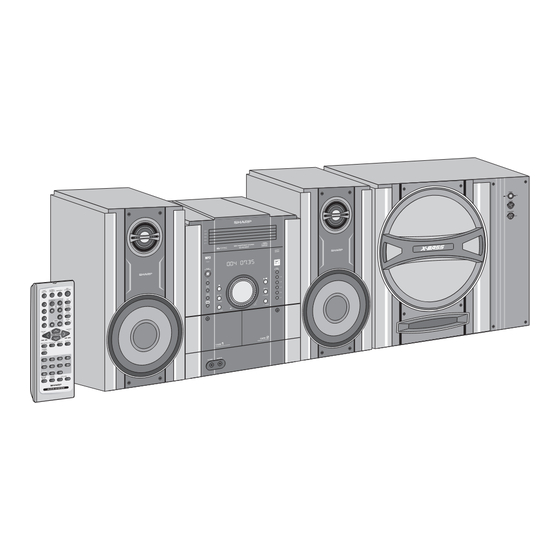

CD-G14000 Mini Component System consisting of CD-G14000
(main unit), CP-G14000 (consisting of 1 set of front speaker) and
1 unit of CP-SW14000 (active subwoofer).
Accessories
Please confirm that the following accessories are included.
Remote control
1
AM loop antenna
(RRMCGA159AWSA)
Red
Black
Wires for front speaker
1
FM antenna
(QANTL0010AWZZ)
(92LFANT1535A)
2
Subwoofer cable
1
1
