Page 1: Operating Instructions

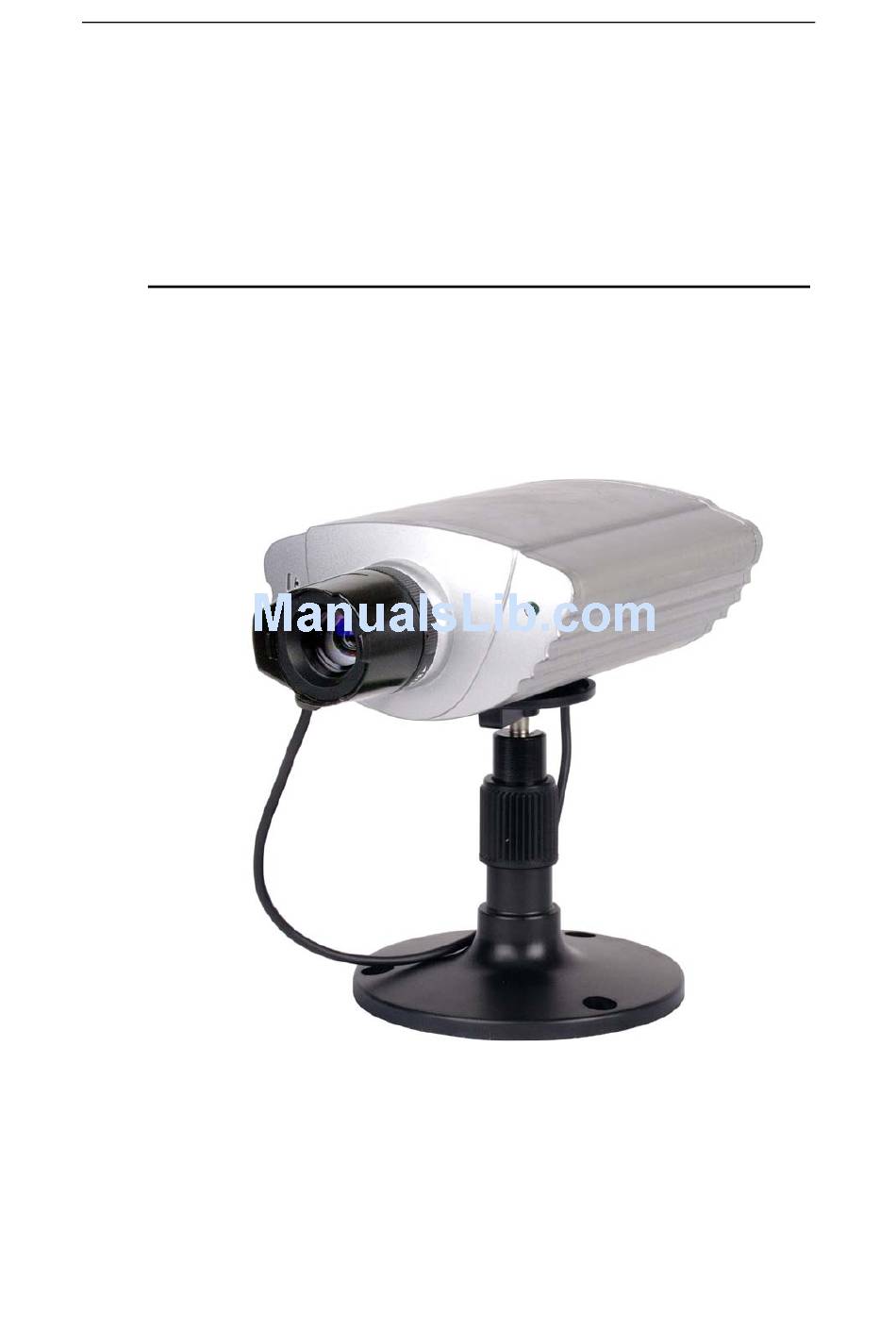

Operating Instructions Network Camera Operating Instructions QSINUFO... - Page 2 Please read this manual before using and save this manual for future reference. Please check the following items when unpacking. AC adaptor I/O port link line Category 5 cross cable Setup CD-ROM Operating Instructions Trademarks Netscape and Netscape Navigator are registered trademarks of Netscape Communications Corporation in the U.S.
-
Page 3: Table Of Contents
Operating Instructions Table of Contents 1. Product Introduction ... 4 1.1 Getting to know the Network Camera...4 1.1.1 Main features...4 1.1.2 System Requirements...5 1.2 Camera Feature Locations...5 1.2.1 Front View...5 1.2.2 Rear View...6 1.3 Network Camera Installation ...6 1.3.1 Connecting the Cable and the Power Supply ...6 1.3.2 Confirming the Network Camera Setting...8 1.3.3 Setting Network Parameters...8 Use reset key ...9... -
Page 4: Product Introduction
2.3.14 PTZ Control Settings...30 2.3.15 Other settings ...31 Technical Guides ... 34 3.1 Maintenance ...34 3.2 Interfacing to the I/O Connector ...34 3.3 I/O ...34 1. I/O ...34 2.COMM ...35 3.switch ...36 Specifications and Troubleshooting... 37 Network Camera reset procedure—default settings...37 Specification...37 Troubleshooting ...39 4.4 Important Safety Instruction...40... -
Page 5: System Requirements
Operating Instructions 1.1.2 System Requirements The PC and the network must meet the following technical specifications for the Network Camera to work properly. Item Operating System Microsoft Windows 98 Microsoft Windows 2000, Microsoft Windows ME Microsoft Windows NT® 4.0, Microsoft Windows XP Network Protocol TCP/IP network protocol installed. -
Page 6: Rear View
Operating Instructions 1.2.2 Rear View From left to right: RJ45: 100 Base-T：Ethernet Indicator I/O：Including two I/O inputs and two I/O outputs. COMM port: including one RS-232 and one RS-485and one LINE OUT。 BNC port: video output. Reset key DC IN jack: 12v 1A Switch: BLC, IRIS, AGC, AWB 1.3 Network Camera Installation This section explains how you can install the Network Camera. - Page 7 Operating Instructions 2.Hub Connection needs category 5 straight cable and PC Connection needs category 5 cross cable. 3.LAN (Intranet)、Internet Connection with Ethernet Switching Hub Network Camera can be installed on the LAN. Network Camera can be accessed through the Internet.
-
Page 8: Confirming The Network Camera Setting
1.3.2 Confirming the Network Camera Setting To confirm if the Network Camera is configured correctly, please access to Top Page. If the Top Page appears, your Network Configuration is completed. 1. Start up the web browser. 2. Enter "http://IP address : Port No." in the address field and press [Enter]. Top Page appears. -
Page 9: Use Reset Key
Operating Instructions permission to download ActiveX Controls (OCX file) used to display motion video. Please allow the file to be installed. It is required and will not cause any problems with other applications on the PC. Use reset key IP will be changed to 192.168.1.252. Blinking will occur during the following situation. Press reset key until the electrical source blinking. - Page 10 C:\>arp -d C:\>arp -s 192.168.1.61 00-0c-e8-00-00-01 C:\>ping -t 192.168.1.61 Pinging 192.168.1.61 with 32 bytes of data: Request timed out. Request timed out. Request timed out. Reply from 192.168.1.61: bytes=32 time=5ms TTL=255 Reply from 192.168.1.61: bytes=32 time=4ms TTL=255 Reply from 192.168.1.61: bytes=32 time=4ms TTL=255 Reply from 192.168.1.61: bytes=32 time=4ms TTL=255 Ping statistics for 192.168.1.61: Packets: Sent = 7, Received = 4, Lost = 3 (42% loss),...
-
Page 11: Network Camera Screen And Setup Window
Operating Instructions 2. Network Camera Screen and Setup window 2.1 Network Camera View Image The view image enables you to access to the Top View Image screen (Single Camera/Multi-Camera screen). Authentication window can set password for the link... -
Page 12: Viewing The Top View Image Screen
Operating Instructions 1. View Image Single Camera / Multi-Camera 2. System Configuration 3. Help 4. Language : English Chinese . 2.2 Viewing the Top View Image screen The Top View Image screen consists of Single Camera and Multi-Camera screen. Single Camera screen Item Description... -
Page 13: Setup Window-System Configuration
Operating Instructions Brightness Brightness control has 17 steps including Saturation Saturation control has 9 steps including Volume Volume control has 10 steps including Iris Adjust Iris Resolution Selects 640X 480, 320X240 (default) or 160X120. Image quality Favor clarity/Standard/Favor motion 2.3 Setup window—System Configuration Setup Page controls all features of the Network Camera. -
Page 14: System Configuration
User: admin Password: admin System Configuration Operating Instructions... - Page 15 Operating Instructions Network Date/Time Administrator General User Picture/voice Basic Setup Multi-Server I/O port Timer Motion Detect Constant Constant recording Recording Event Manage Event Manage Picture Viewer Configures the network setting Sets the network Date and Time Sets administrator ID and password for the security.
-
Page 16: Network
Event Viewer Restart Reset Setting Others System information Update firmware Language 2.3.1 Network Network window can set up the each parameter. Please restart the Network Camera when making the parameters effective. Operating Instructions Show the event properties: message type and alarm type, ID, time. PTZ control settings. - Page 17 Operating Instructions Network Name Port No. IP Address and Subnet Mask DHCP Default Gateway DDNS Max. Bandwidth Usage 4 to 15 English letters，2 to 7 Chinese characters Set to 80. (Default) Check Static and set Static IP address and Subnet Mask.
-
Page 18: Date/Time
2.3.2 Date/Time Item Display current Camera date 1.Date and Time and time. 2.Set Network Network Camera can adjust Camera Date and the internal clock. Time Make the Network Camera the (1)Synchronize internal With Current current the calculator clock is Computer Time synchronous Set time to adjust the internal (2) Set Manually... -
Page 19: Administrator
Operating Instructions 2.3.3 Administrator Administrator window allows the administrator to limit or exclude the access to selected Network Camera feature. Individual levels of access can be defined for multiple users. The administrator can select one of three security levels: [None] [Administrator only]: Setup Page for Administrator only [Administrator and General User]: Setup Page for Administrator and Viewer Page for General User... -
Page 20: General User
Operating Instructions 2.3.4 General User General User window allows the administrator to create the General User ID and password for the security level defined as General User. User Name List: User Name List displays the registered user name.[Delete] and [Modify] deletes/modifies the General User in the list. -
Page 21: Video Settings
Operating Instructions 2.3.5 Video Settings [Video Adjust ]: Permit General User adjust. [Header Display]: Display the network camera name, date and time. [Image Mirror]:you can browse the image like look into the mirror. [BLC Control]:enable BLC. [White Balance]: Auto (default)、 Electric Bulb、 Natural fluorescent light、 Solar light、 Hold. -
Page 22: Multi-Server
Operating Instructions 2.3.6 Multi-server Multi-Camera window enables the setting of Multi-Camera screen. 2nd to 4th cameras are named on this Multi-Camera window. -
Page 23: I/O Ports
Operating Instructions 2.3.7 I/O Ports Setup alarm occur condition: when the electricity falling. when the electricity rising. output ports status :high impedance and low impedance. output port status keep live times. -
Page 24: Timer Capture
Operating Instructions 2.3.8 Timer Capture You can set eight timers of The timer mode can be activated by entering the active time. every week. -
Page 25: Motion Detect
Operating Instructions 2.3.9 Motion Detect Setup the alarm scope of motion detection. -
Page 26: Constant Recording
2.3.10 Constant Recording [Constant Recording]: Permit constant recording or not. [Image Setting]: Set the image resolution and image quality. Image resolution: 640 x 480/320 x 240/160 x 120 Image quality: Favor Clarity/Standard/Favor Motion [Image Frequency]: Sets the interval to send the image. [FTP Server]: Enters the server address or Host Name, Port no. -
Page 27: Event Manage
Operating Instructions 2.3.11 Event Manage [Event Source Select]:I/O port Occur Timer Occur Motion Detection Occur The Alarm mode and the motion detection mode can transfer the image via e-mail or FTP when the alarm trigger is active. To activate the alarm trigger, the digital input terminal of the I/O Connector must be connected with the external sensors/devices. -
Page 28: Event Picture
[Image Setting]: Set the image resolution Image resolution: 640 x 480/320 x 240/160 x 120 [Image Buffer Setting]: [Over Buffer Setting]:over write the buffer or not when the buffer is full. [FTP Server]: Enters the server address or Host Name, Port no. (1–65535), Login ID and password to access the FTP server and upload file name including full path. -
Page 29: Event Properties
Operating Instructions 2.3.13 Event Properties Show the event properties. Message type ,alarm type , alarm id and alarm time. -
Page 30: Ptz Control Settings
Operating Instructions 2.3.14 PTZ Control Settings [PTZ Control]: Permit General User control or not. [COM Settings]: Sets baud rate. [PTZ Control Identity]: Sets PTZ ID. [Select PTZ Control Driver]: Select PTZ protocols. -
Page 31: Other Settings
Operating Instructions 2.3.15 Other settings Restart the network camera. - Page 32 Operating Instructions Reset the video server form factory default. The IP will be changed to 192.168.1.252. Show the system information: firmware version and software version..
- Page 33 Operating Instructions Select the language : Chinese or English.
-
Page 34: Technical Guides
5. Technical Guides 3.1 Maintenance To keep the Network Camera in the good condition, maintenance plays an important part. Please keep maintenance when using the Network Camera. Network Camera • Network Camera is intended for indoor use only. Prolonged exposure to direct sunlight or halogen light may damage the CMOS sensor. -
Page 35: Comm
Operating Instructions Explanation of I/O Connector I/O-IN I/O-OUT (1) +12V DGND I/O-IN I/O-OUT (2) 2.COMM COMM ports have one RS-232 , RS-485 and one LINE OUT。 ： Function (<100mA) -
Page 36: Switch
Explanation of COMM Connector Function 232/(RXD UFO-II-H 232/(TXD UFO-II-H LINE OUT 485/(B UFO-II-H 485/(A UFO-II-H 3.switch Explanation of Connector IRIS ： ： DGND DGND AGND ：： Function Operating Instructions... -
Page 37: Specifications And Troubleshooting
Operating Instructions 4. LENS Explanation of Connector DAMP- DAMP+ DRIVE+ DRIVE- 6. Specifications and Troubleshooting 6.1 Network Camera reset procedure—default settings If the user forgets the settings or passwords, the Network Camera can be easily reset to the default settings. 6.2 Specification ：：... - Page 38 TCP/IP, HTTP, FTP, SMTP, DDNS, DNS，DHCP, PPPOE MODEM、ISDN、XDSL、LAN 32 bits，RISC CPU Embedded real time operation system JPEG, MOTION-JPEG Microsoft IE, Netscape 25(SIF),15(VGA) 640×480，320×240，160×120 80frames I/O Trigger，timer Trigger，motion detection 2 I/O in & 2 I/O out indoor G.711,G.726,G.723.1,G.729 1/3,SHARP, CCD 480 line 1.0 Lux(F1.2) Operating Instructions...
-
Page 39: Troubleshooting
Operating Instructions Video control LENS Serial port P/T/Z Size Power supply Operating Temperature 6.3 Troubleshooting Problem Cause and Remedy • AWB: White Balance (ATW/Push/Indoor/Outdoor) • AGC: Automatic Gain Control (On/Off) • Manual Electronic Shutter (1/50 or 1/60 when AES off) •... -
Page 40: Important Safety Instruction
When the Top Page does • Enter the correct IP address set up to the Network not appear. Camera. • IP address of the PC and the Network Camera must be in the same class of the private IP address on the LAN. •... - Page 41 Operating Instructions 3) If the unit has been exposed to rain or water. 4) If the unit does not work normally by following the operating instructions. 5) If the unit has been dropped or physically damaged. 6) If the unit exhibits a distinct change in performance. WARNING TO PREVENT RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
