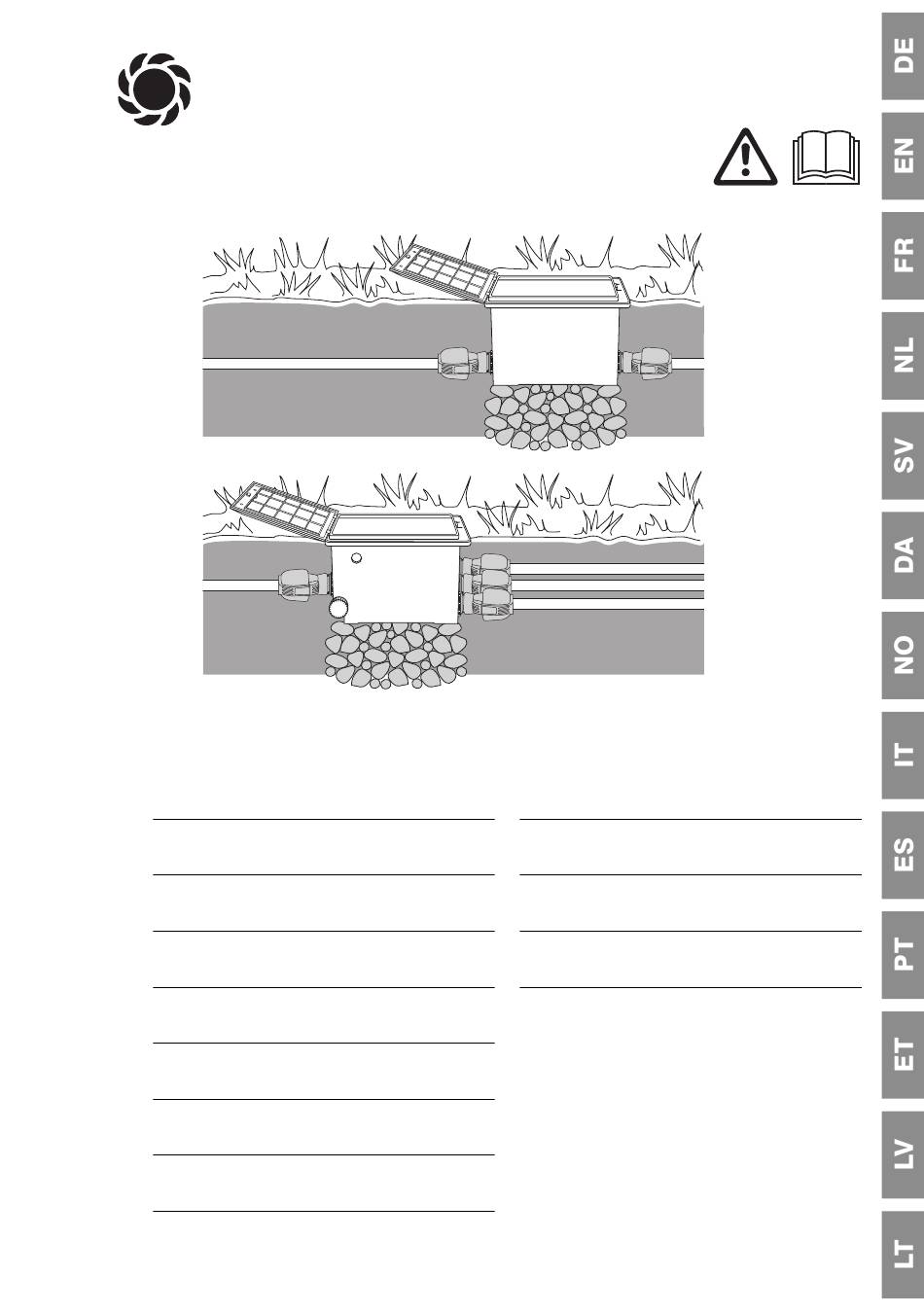

- Page 1 GARDENA ® V 1 Art.1254 V 3 Art.1255 Betriebsanleitung Manual de instrucciones Ventilbox Caja de válvulas Operating Instructions Instruções de utilização Valve Box Boxe de válvulas Mode d’emploi Käitamisjuhend Bloc-vanne Klapikast Instructies voor gebruik Lietošanas instrukcija Ventielbox Vārstu bloks Bruksanvisning...
-
Page 2: Table Of Contents
Art. 1277 and the Connection Cable Art. 1280. * Only available on selected markets. You must read and comply with the Operating Instructions provided by GARDENA to ensure that you use the Valve Box properly. 2. Safety Precautions Winter Storage V Read the notes on safety in the Valve Box V Before the frost period starts : see point 5. -
Page 3: Assembly
Valve Box from the outside using the two nuts The GARDENA Connecting Pipes 25 mm Art. 2700 / 2701 and 32 mm Art. 2704 / 2705 can be connected using the GARDENA Connectors 25 mm Art. 2762 and 32 mm Art. 2768. - Page 4 V 3 : Close open distributor If you are only installing 2 valves in a Valve Box V 3, the open output : distributor output must be sealed with an end cap. 1. Push the short telescopic pipe into the open distributor output.
-
Page 5: Operation
Valves and the entire watering system : 1. Close the water tap and disconnect the hose from the GARDENA Water Connection Point Art. No. 1594 / 2795 This allows air to flow freely. 2. If the watering system is directly connected to the water tap, turn off the water supply and open the venting tap. -
Page 6: Trouble-Shooting
Set selector lever “ON” position. “AUTO / OFF”. In the event of other faults please contact GARDENA Service. Repairs should only be carried out by GARDENA service centres or dealers authorised by GARDENA. 7. Accessories Control GARDENA Soil Moisture Sensor Art. -
Page 7: Service / Warranty
This warranty includes defective product along with a brief description all significant defects of the product that can be of the fault to GARDENA Manufacturing GmbH, proved to be material or manufacturing faults. making sure to have sufficiently covered any... - Page 8 Gefahr ! Diese Maschine erzeugt ein elektromagnetisches Feld während des Betriebs. Dieses Feld kann unter Umständen mit aktiven oder passiven medizinischen Implantaten wechselwirken. Um das Risiko einer ernsten oder tödlichen Verletzung zu vermeiden, empfehlen wir Personen mit medizinischen Implantaten ihren Arzt oder Hersteller des medizinischen Implantats vor dem Betrieb der Maschine zu befragen.
