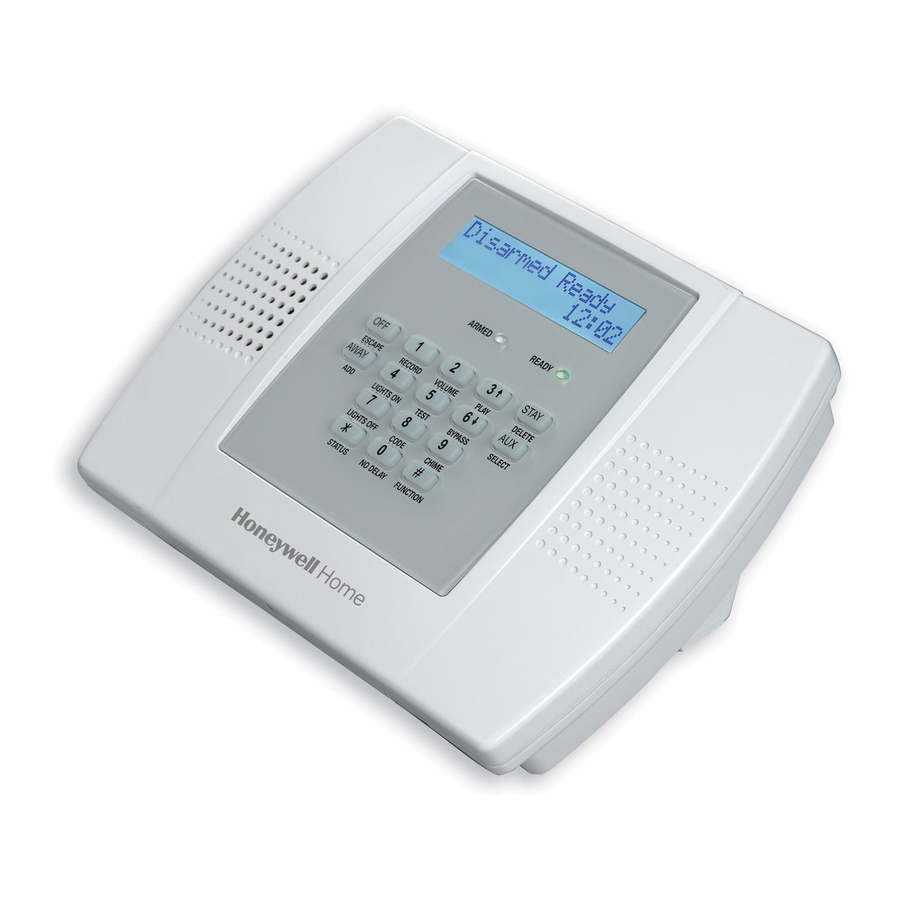

Honeywell LYNX Series Installation Instructions

Connecting LYNX Series Controls to the GSMX4G, GSMV4G,
IGSMV4G, or CDMA-X Communications Device
For Online Support visit: https://mywebtech.honeywell.com
Refer to the GSMX4G, GSMV4G, iGSMV4G or CDMA-X and LYNX PLUS, LYNXR-2 or LYNXR-I Installation
Instructions for additional information and procedures. If you are installing the Communications Device with a
LYNX PLUS control, ensure that the LYNXGSMEXTCB Cable Assembly is properly routed. If used,
interconnecting wiring between the cable and the communications device must not exceed 20ft in length.
Connecting the GSMX4G or CDMA-X
1. Splice the stripped end of two LYNXGSMEXTCB Cable Assemblies (P/N 600-00151) to each other as shown in Figure 1
and Table 1.
It is essential that the wires are spliced exactly as shown on Figure 1. If used, interconnecting wiring between
the two LYNXGSMEXTCB Cable Assemblies must not exceed 20ft in length.
2. Connect one end of the spliced LYNXGSMEXTCB Cable Assembly (P/N 600-00151) to the receptacle on
as shown in Figure 1.
CDMA-X
3. Connect the other end of the spliced LYNXGSMEXTCB Cable Assembly (P/N 600-00151) to the communications port
on the LYNX PLUS, LYNXR-I or LYNXR-2 as shown in Figure 1. For the LYNX PLUS, ensure that the cable is properly
routed as shown on Figure 2.
Table 1. Cable Assembly LYNXGSMEXTCB Splice Configuration
LYNX Series
Yellow
Red
Black
Green
Figure 1. GSMX4G or CDMA-X Connections
GSMX4G or CDMA-X
Green
Black
Red
Yellow
GSMX4G or
