Summary of Contents for Wallgate CWC-80 series

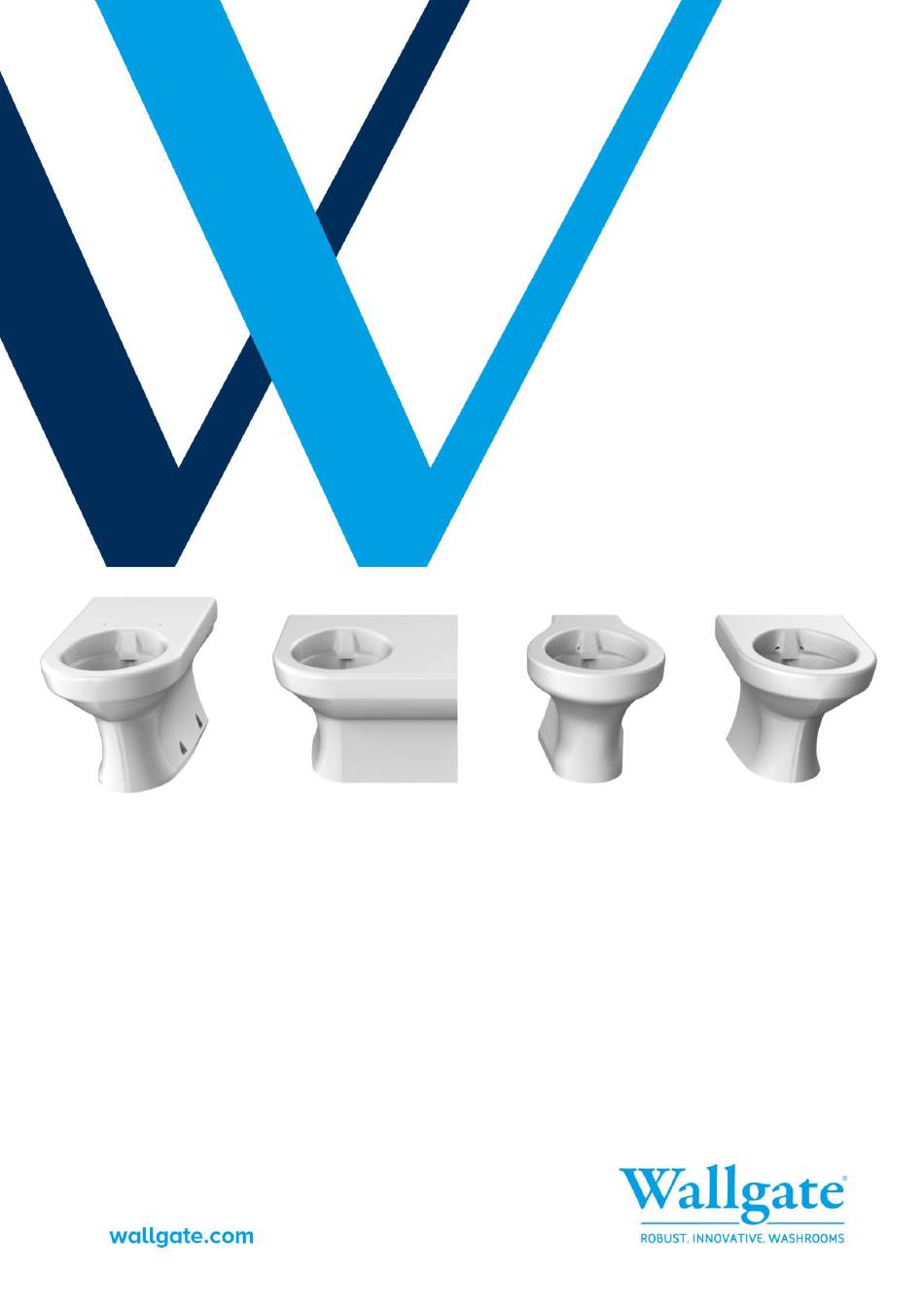

- Page 1 Product Manual Solid Surface WC Pans CWC-80 & CWC-280 series CWC-150 & CWC-250 series CWC-170 & CWC-270 series CWC-155 & CWC-255 series...
- Page 2 Product Manual Solid Surface WC Pans AS 1172 Certificate No 23109 Revision 12...
-
Page 3: Table Of Contents
Product Manual Solid Surface WC Pans Table of Contents 1. Disclaimer ......................... 4 2. Conventions ......................5 2.1. Warning ........................5 2.2. Note .......................... 5 2.3. Numbered procedures ....................5 2.4. Bullet lists ........................5 2.5. Menu items ....................... 5 3. -
Page 4: Disclaimer
Every effort has been made to supply information within this manual which is correct. Wallgate Limited will not be liable for any damage or loss that arises if the person installing, operating or maintaining the unit has not read or not complied with the manual In any event, and without prejudice to any warranties in Wallgate Limited’s terms and... -
Page 5: Conventions
Product Manual Solid Surface WC Pans 2. Conventions Certain conventions are used in this manual to make it easier to read and understand. They are given in the sections below. 2.1. Warning A warning with white text on a red background is used to give information about hazards that can cause injury or death. -
Page 6: Glossary
Product Manual Solid Surface WC Pans 3. Glossary The glossary lists all words, abbreviations and technical terminology used in this manual, along with a short description of these terms. Term Description Anti-Ligature Recently we have become aware that there is some inconsistency in the market as to the exact meaning of "anti-ligature". -
Page 7: Overview
CWC-170R / 270R* Back to wall corner fit pan right hand orientation. *Models variant of 200 series (i.e. 280) have lower height outlet spigot. For model identification refer to individual model drawing supplied separately & available from the Wallgate website. Revision 12... -
Page 8: Installation And Commissioning
• The CWC is a back to wall type pan for installations with a concealed but accessible flushing device. • The CWC is suitable for various types of flushing device that Wallgate can provide & have been tested, to ensure compliance & compatibility with the WC pans. -
Page 9: Preparing & Fitting The Water Closet
CWC using a suitable connector such as those made by McAlpine which Wallgate can supply as an optional extra. • A mains cold water supply should be provided and terminated with a suitable isolating tap for connection to the flushing device. - Page 10 Product Manual Solid Surface WC Pans 2. The CWC models that include a separate rear extension (i.e.; CWC-81-EXT) that is clamped between the WC pan & the wall, are provided with longer length wall fixing threaded M10 studs. 3. The CWC models that include a fixed rear shroud (i.e. CWC-155) are fitted with 4 x M10 bolts (inside the rear shroud section) fastened into the rear of the WC pan;...
-
Page 11: Commissioning For Use
Product Manual Solid Surface WC Pans 11. Install the flushing device in accordance with the instructions provided with it. Note that for a cistern type device it must be mounted at the correct height to its base from floor level as shown on the installation drawing provided to ensure the flush performance is not impaired. -
Page 12: Technical Specifications
Product Manual Solid Surface WC Pans 5.5. Technical Specifications Weight 50 - 70Kg (Dependent on CWC model). Dimensions Refer to CWC model drawing supplied separate to these instructions. Water Supply Refer to the applicable product manual for the WC flush device. Soil pipe connection 105/108mm external diameter male spigot. -
Page 13: User And Maintenance Instructions
& maintenance routine will ensure that the product will last for many years. Refer to the “Care & Maintenance Instructions Leaflet” available from Wallgate (www.wallgate.com). Further advice on this & other Wallgate products may be obtained by contacting the “Wallgate Sales or Service Offices”. Revision 12... -
Page 14: Related Documentation
7. Related Documentation The CWC can be used with any of the following control units & flushing devices, product manuals & drawings listed below are available from the Wallgate website: • WDC100 control unit. For more information on this control unit, refer to the WDC100 product manual. - Page 15 Product Manual Solid Surface WC Pans PAGE INTENTIONALLY LEFT BLANK Revision 12...
- Page 16 Wallgate Ltd. Crow Lane, Wilton, Salisbury, Wiltshire, SP2 0HB, England tel: +44 (0) 1722 744594 fax: +44 (0) 1722 742096 email: service@wallgate.com web: www.wallgate.com Revision 12...
