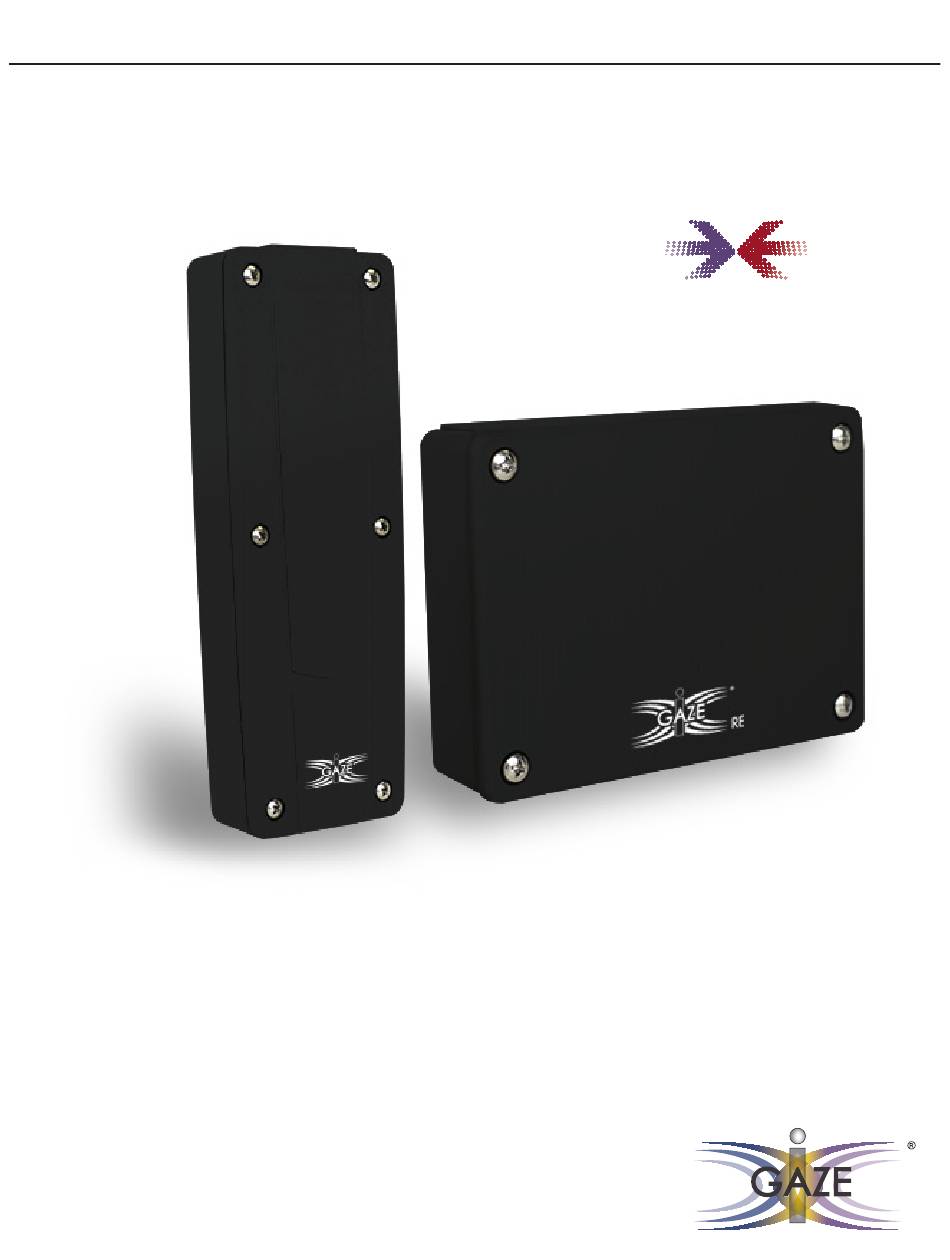

REP KIT ® Transceiver System for 10kΩ, or 8.2kΩ Resistive Safety Edges Pulsed output BI-DIRECTIONAL COMMUNICATION Fixed Device RCOO900P Movable Device TCOO900 INSTRUCTION MANUAL v.05.24.18... -
Page 2: Technical Specifications
RCOO900P power supply 12/24 Vac-dc Battery duration 2 years (normal functioning mode). 5 years (Low power mode). Minimum battery level (TCOO900) 1.9V Compatible safety edges (TCOO900) Resistive (8.2 kΩ / 10kΩ) Number of outputs (RCOO900P) Maximum number of Transmitters for each 8 for each device. - Page 3 1 fixed device (RC00900P) with 2 pulsed outputs, which is connected to the operator, and up to 8 movable devices (TC00900) for each relay. The system TCOO900 will accept only resistive safety edge 10kΩ or 8.2kΩ. The transmission signal is bi-directional and utilizes the frequencies 902-928MHz. Maximum range between the movable and fixed devices is 60 feet.
- Page 4 STEP 3 SET DIP SWITCHES 2 AND 3 ON THE TCOO900 AND 3 AND 4 ON THE RCOO900P TO THE SAME SETTINGS. RCOO900P TCOO900 N° DIP Function N° DIP Function 1 Low power. (see Section E on page 9) 1 2 Freq / 3 Freq...
- Page 5 STEP 6 MOUNT THE RCOO900P AS CLOSE AS POSSIBLE TO THE TCOO900. IF MOUNTED TO A WALL, USE SUITABLE SCREWS AND ANCHORS TO SECURE THE RCOO900P. STEP 7 DEPENDING ON THE TYPE OF SIGNAL REQUIRED, CONNECT THE OUTPUTS AS EXPLAINED IN THE FOLLOWING EXAMPLES.
- Page 6 Vdc/Vac Operator 1 Operator 2 Operator 2 2-wire pulsed Operator 1 N.O. 4-wire pulsed STEP 8 STEP 9 MOUNT THE IGAZE REP RCOO900P POWER THE RCOO900P WITH 12-24 VAC/DC ® INSULATED POWER SUPPLY (NOT INCLUDED WITH THE IGAZE® REP KIT).
- Page 7 (*) If you hear 4 BEEPS, it means that the maximum number of safety edges for the selected channel has been reached and that no new devices on the same channel output can be memorized. NOTE: When the TCOO900 is used with two connected safety edges, it is necessary to carry out the learning process two times, one for each input.
-
Page 8: Receiver Reset
Check each associated device NOTE: If one TCOO900 is in the alarm state and it is necessary to open or close the operating device, press and keep pressed the programming / test button of the TCOO900 in alarm at the same time the operating device is activated to open or close. -
Page 9: Fcc Compliance
ENERGY SAVING (LOW POWER) With the dip switch set to low power it is important to remember that the TCOO900 will only check in with the RCOO900P every 15 seconds. If a power failure (dead battery) were to occur during this 15 second interval, the RCOO900P will only signal an alarm after the 15 second interval has been reached. -
Page 10: Troubleshooting
Safety Device 1 and DIP 6 for Output2 and Safety Device 2) 3 – To ensure that the TCOO900 and RCOO900P are communicating within the same frequency DIP switch 2 and 3 on the TCOO900 and DIP switch 3 and 4 on the RCOO900P need to be in the same position. - Page 11 WARRANTY The warranty period of this product is 24 months, beginning from the manufacturing date. During this period, if the product does not operate correctly, due to a defective component, the product will be repaired or replaced at the sole discretion of Transmitter Solutions.
- Page 12 2 480 South 3850 West, Suite Salt Lake City, UT 84120 (866) 975-0101 • (866) 975-0404 fa www.transmittersolutions.com...
