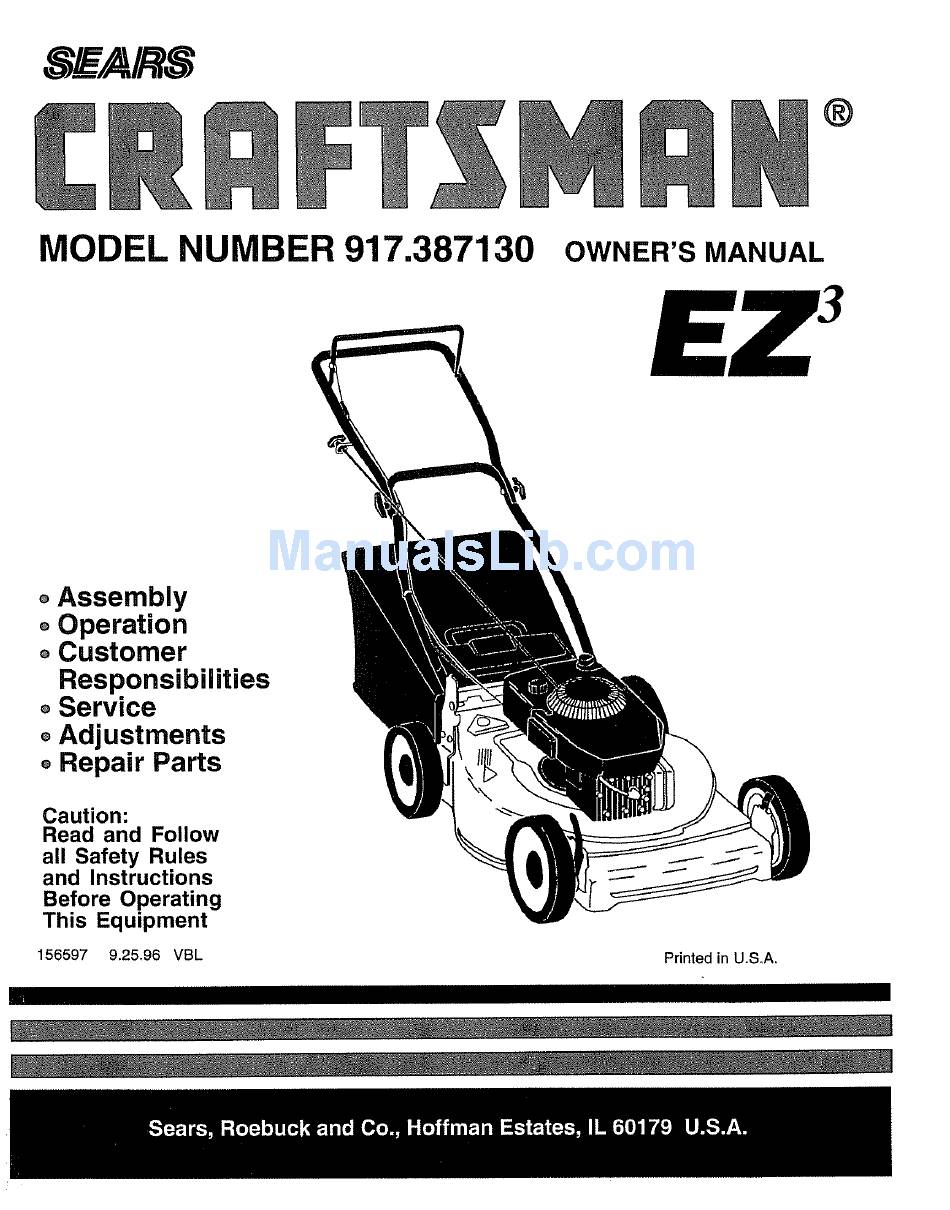

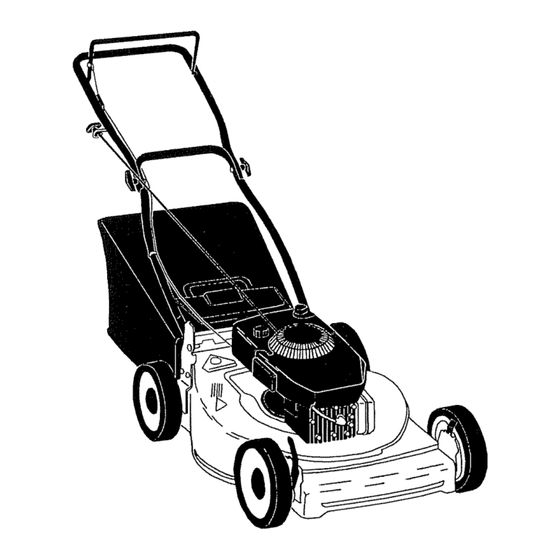

- Page 1 MODEL NUMBER 917.387130 o Assembly o Operation o Customer Responsibilities o Service o Adjustments o Repair Parts Caution: Read and Follow all Safety Rules and Instructions Before Operating This Equipment 156597 9.25,96 OWNER'S MANUAL Printed in U.S,A,...
- Page 2 Safe Operation IMPORTANT: THIS CUTTING MACHINE FAILURE TO OBSERVE THE FOLLOWING SAFETY STANDARDS REQUIRE OPERATOR EQUIPPED WITH SUCH CONTROLS. CONTROLS UNDER ANY CIRCUMSTANCES TRAINING: Read this operator's manual carefully the controls arrd know how to operate your mower properly Learn how to quickly stop mower. Do not allow children to use your mower.
- Page 3 LqMITED TWO YEAR WARRANTY For two years from date of purchase, when this Craftsman Lawn Mower is maintained, according to the operating and maintenance instructions in the owner's manual, Sears will repair free of charge any defect in material or workmanship.
-
Page 4: Table Of Contents
Lubrication ... 1 3 Spark Plug ... Cutting Levels ... 9 SERVICE AND ADJUSTMENTS STORAGE ... TROUBLESHOOTING REPAIR PARTS - LAWN MOWER ... 16-17 REPAIR PARTS - ENGINE ... PARTS ORDERING/SERVICE Engine: Air Filter ... Oil Change ... 13 Oil Level ... 13 Oil Type ... - Page 5 These accessories were available when this lawn mower was produced° They are also available at most Sears retail outlets and service centers° Most Sears stores can also order repair parts for you, when you provide the model number of your lawn mower., Some of these accessories...
- Page 6 Read these instructions and this manual in its entirety before you attempt to assemble or operate your new lawn mower_ Your' new lawn mower has been assembled at the factory with the exception of those parts left unassembled for shipping purposes.
- Page 7 CAUTION: Do not run your lawn mower without clipping deflector or approved grass catcher in place. Never attempt to operate the lawn mower with the rear door removed or propped open. TUBULAR FRAME SEWN...
- Page 8 PLUG MEETS Sears rotary walk-behind power lawn mowers conform to the safety standards of the American National Standards Institute and the U.S. Consumer Product Safety Commission_ The blade turns when the engine is running. OPERATOR PRESENCE CONTROL BAR - must be held down to the handle to start the engine.
-
Page 9: Carburetor
The operation of any lawn mower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating your lawn mower or performing any adjustments or repairs. We recommend a wide vision safety mask over the spectacles or standard safety glasses. -
Page 10: Operator Presence Control Bar
For extremely heavy cutting, reduce the width of cut and raise the rear of the lawn mower housing one (1) wheel adjuster setting higher than the front for better discharge of grass. - Page 11 GENERAL RECOMMENDATIONS The warranty on this lawn mower does not cover items that have been subjected to operator abuse or negligence, To receive full value from the warranty, operator must maintain mower as instructed in this manual,...
- Page 12 Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with spark plug. • Turn lawn mower on its side_ Make sure air filter and carburetor are up. Use a wood block between blade and mower housing to prevent blade from turning when removing blade bolt.
-
Page 13: Air Filter
Remove engine oil cap; lay aside on a clean surface. Tip lawn mower on its side and drain oil into a suitable container. Rock lawn mower back and forth to remove any oil trapped inside of engine. -
Page 14: Lawn Mower
The rear' deflector, attached between the rear wheels of your' lawn mower, is provided to minimize the possibility that objects will be thrown out the rear of the lawn mower into the operator's mowing position_ If the rear deflector becomes damaged, it should be re- placed, (See Figs. -
Page 15: Oil
30 days or more. LAWN MOWER When lawn mower is to be stored for a period of time, clean it thoroughly, remove all dirt, grease, leaves, etc. Store in a clean, dry area. - Page 16 REPAURPARTS CRAFTSMAN 20" ROTARY LAWN MOWER - - MODEL NO. 917.387130 32 33 .,,& 36 38...
-
Page 17: Repair Parts
Hex Flange Locknut Hubcap Danger Decal Hex Head Thread Rolling Screw 3/8-16 x 1 Lawn Mower Housing (Incl. Key #18, 22, 24, 44, 50) Locknut 3/8-16 Front Baffle Hex Head Machine Screw 3/8-24 x 1-3/8 (Grd. 8) Helical Lockwasher 3/8 Washer Blade 20"... - Page 18 CRAFTSMAN 4=CYCLE ENGUNE MODEL N UMBER 143.974500 182 ^._ "_'310 _307 '174 </_...
-
Page 19: Engine
CRAFTSMAN 4=CYCLE ENGINE REF PART NO. NO. DESCRIPTION 36478A Cylinder (Incl 2,7,20 & 125) 26727 Dowel Pin 33734 Breather Element 36557 BreatherAss'y. 12A 36558 Breather Cover & Tube (IncL 12B) 12B 34695 Breather Tube Elbow 28277 Washer 30589 Governor Rod (lncL. 14) 32651 Governor Lever 31335... - Page 20 CRAFTSMAN &CYCLE 48_O _ -49 %_27 44_! ,-e[ 18 EI--_ ENGINE REF PART NO. NO. 632747 631615 631767 631184 631183 632504 650506 631807 631867 631024 632019 631028 631021 631022 36045 632735 632547 632736 27110 631027 REF PART NO. NO. 590694 590599A 590600 590696...
- Page 21 Depress control bar to upper handle before pulling starter rope Contactan authorized service center/department Replace blade adapter Move lawn mower to cut grass or to hard surface to start engine Raise catting height Replace blade Clean grass catcher Contact an authorized service center/department...
- Page 22 The model number for your engine will be found on the blower' housing of the engine.. All parts listed herein may be ordered from any Sears, Roebuck and Co. Service Center/Department Retail Stores.
