Philips HD3060 User Manual

Always there to help you
1
Register your product and get support at
www.philips.com/welcome
HD3060
Question?
Contact
Philips
a
b
c
d
EN User manual TW 使用手冊
e
4
1
5
5
Specifications are subject to change without notice
© 2014 Koninklijke Philips N.V.
All rights reserved.
HD3060_UM_TW_V2.0
staff kitchen areas in shops, offices
English •
and other working environments;
farm houses;
•

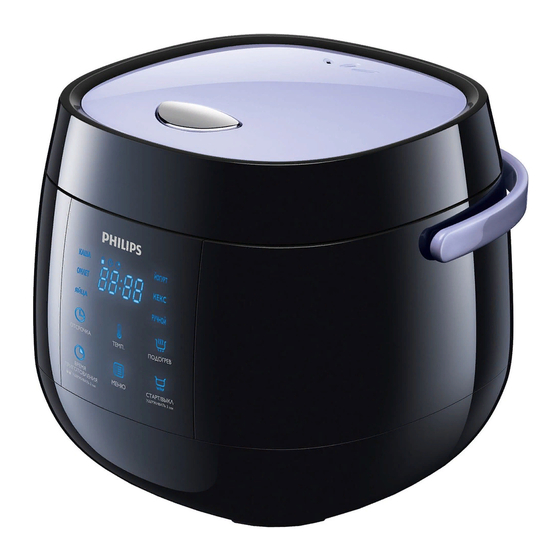

1 Your rice cooker
by clients in hotels, motels
•
Congratulations on your purchase, and welcome to Philips!
and other residential type
To fully benefit from the support that Philips offers, register your
product at www.Philips.com.tw/welcome. environments;
bed and breakfast type
2 Important •
environments.
Please read this safety leaflet carefully before you use the rice cooker
and save it for future reference. Make sure that the damaged power
•
Danger
cord is replaced by Philips, a service
Do not immerse the rice cooker in center authorized by Philips or
•
water, nor rinse it under the tap. similarly qualified persons in order
to avoid a hazard.
Warning
The appliance is not intended to be
•
This appliance shall not be used by
•
operated by means of an external
children from 0 year to 8 years. This
timer or a separate remote-control
appliance can be used by children
system.
aged from 8 years and above if
Check if the voltage indicated on
•
they are continuously supervised.
the rice cooker corresponds to
This appliance can be used by
the local power voltage before you
people with reduced physical,
connect it.
sensory or mental capabilities or
Only connect the rice cooker to
•
lack of experience and knowledge
a grounded power outlet. Always
if they have been given supervision
make sure that the plug is inserted
or instruction concerning use of
firmly into the power outlet.
the appliance in a safe way and
Do not use the appliance if the
understand the hazards involved. •
plug, the power cord, the inner pot,
Keep the appliance and its cord
the sealing ring, or the main body is
out of reach of children aged less
damaged.
than 8 years. Cleaning and user
Do not let the power cord hang
maintenance shall not be made by •
over the edge of the table or
children.
worktop on which the rice cooker
Children shall not play with the
•
stands.
appliance.
Make sure the heating element,
•
Cooking appliances should be
•
the temperature sensor, and the
positioned in a stable situation with
outside of the inner pot are clean
the handles (if any) positioned to
and dry before you put the plug in
avoid spillage of the hot liquids.
the power outlet.
This appliance is intended to be
•
Do not plug in the rice cooker or
used in household and similar •
press any of the buttons on the
applications such as:
control panel with wet hands.
2
h
i
www.philips.com/w e lcome HD3060
g
使用手冊
j
www.philips.com/w e lcome HD3060
f
保固卡 k
2 3 4
http://item.jd.com/986783.html?browser=fullscreen
6 7 8
嘀
Caution
Never use any accessories or
•
parts from other manufacturers
or that Philips does not specifically
recommend. If you use such
accessories or parts, your guarantee
becomes invalid.
Do not expose the rice cooker to
•
high temperatures, nor place it on a
working or still hot stove or cooker.
Do not expose the rice cooker to
•
direct sunlight.
Place the rice cooker on a stable,
•
horizontal, and level surface.
Always put the inner pot in the rice
•
cooker before you put the plug in
the power outlet and switch it on.
Do not place the inner pot directly
•
over an open fire to cook rice.
Do not use the inner pot if it is
•
deformed.
The accessible surfaces may
•
become hot when the rice cooker
is operating. Take extra caution
when touching the rice cooker.
Beware of hot steam coming out
•
of the steam vent during cooking
or out of the rice cooker when you
open the lid. Keep hands and face
away from the rice cooker to avoid
the steam.
The inner pot and steamer during
•
and after cooking process, may be
hot and heavy.
Do not lift and move the rice
•
cooker while it is operating.
Do not exceed the maximum
•
water level indicated in the inner
pot to prevent overflow which
might cause potential hazard.
3
r
q
p
o
s
n
m
t
l
6 9
嘀
7
25
25
10
嘀
8
嘀
嘀
Do not place the cooking utensils • If the power supply is resumed after two hours, the
•
appliance will not resume the previous work, but be
inside the pot while cooking,
in standby mode.
keeping warm or reheating rice.
Electromagnetic fields (EMF)
Only use the cooking utensils
•
provided. Avoid using sharp utensils. This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
To avoid scratches, it is not
•
3 What's in the box (fig. 1)
recommended to cook ingredients
with crustaceans and shellfish.
a Rice cooker main unit
Remove the hard shells before
b Power cord
cooking. c Rice scoop
d Soup ladle
Do not insert metallic objects or
•
alien substances into the steam
4 Overview
vent.
Do not place a magnetic substance
•
Product overview (fig. 2)
on the lid. Do not use the rice
h Steam valve
cooker near a magnetic substance.
i Lid release button
Always let the rice cooker cool
•
j Control panel
down before you clean or move it.
k Main unit
Always clean the rice cooker after
• l Power socket
use. Do not clean the rice cooker
in dishwasher.
Controls overview (fig. 3)
Always unplug the rice cooker if
•
r Display screen
not used for a longer period.
s Preset button
If the rice cooker is used
•
t Cooking time button
improperly or for professional
u Reheat button
or semiprofessional purposes, or
if it is not used according to the
Cooking time regulating range
instructions in this user manual,
Program Default cooking time
the guarantee becomes invalid
Rice about 35 min
and Philips refuses liability for any
2 hr
Soup
damage caused.
Congee 2 hr
Stew 2 hr
Yogurt 6 hr
Power failure backup function
Reheat 25 min
This appliance has a backup function that remembers the status
Claypot rice about 1 hr 20 min
before a power failure.
• If the power failure occurs during a cooking process, Warm 12 hr
and the power supply is resumed within two hours,
the countdown of the cooking time continues
where it left off.
• If the power failure occurs when the appliance is
at preset mode, and the power supply is resumed
within two hours, the countdown of the preset time
continues where it left off.
x
w
v
u
11
嘀
嘀
12
4s
嘀
13
嘀
3s 3s
5 Using the rice cooker
Note
•
If you press the keep-warm/off button ( ) to cancel the current
setting and the existing function, the rice cooker enters into the
standby mode; if you press the keep-warm/off button
( ) in the standby mode, the rice cooker automatically enters the
keep-warm mode.
•
To switch off, you need to unplug the appliance.
•
The cooking time begins once the rice cooking function starts and ends
when the rice cooker enters into the keep-warm mode.
e Measuring cup
f Warranty card
g User manual Before first use
1
Take out all the accessories from the inner pot. Remove all
packaging materials of the inner pot.
2
Clean the parts of the rice cooker thoroughly before using the
rice cooker for the first time (see chapter 'Cleaning').
Note
•
Make sure all parts are completely dry before you start using the
m Heating element
rice cooker.
n Cooker handle
o Water level indications
(fig. 4 & 5)
Cooking rice
p Inner pot
q Detachable inner lid
1
Measure the rice accurately by using the measuring cup
provided; level the rice off at the top of the cup to maintain
accuracy.
2
Rinse the rice thoroughly.
v Menu button
Note
w Warm/Off button
•
The first rinse should be done quickly, swishing and stirring the
x Start button
rice by hand with plenty of water. Drain the water immediately
afterwards. Then rinse the rice 2-3 times with fresh water to clean
out the bran.
3
Put the pre-washed rice in the inner pot.
4
Add water to the level indicated on the scale inside the inner
pot that corresponds to the number of cups of rice used. Then
Time regulation Preset time
smooth the rice surface.
N/A 24 hr
» For instance, if you cook 4 cups of rice, add water up to
1-4 hr 24 hr
the 4-cup level indicated on the scale.
1-4 hr 24 hr
Note
1-4 hr 24 hr
4-12 hr 24 hr
•
It it normal that rice overflows due to unstable voltage.
25-59 min N/A
•
The level marked inside the inner pot is just an indication; you can always
N/A 24 hr
adjust the water level for different types of rice and your own preference.
•
Besides following the water level indications, you may also add rice and
Activated automatically after
water at 1:1-1.2 ratio for rice cooking.
cooking functions are finished
•
Do not exceed the volume indicated nor exceed the maximum water
(excluding yogurt)
level indicated in the inner pot, as this may cause the rice cooker to
overflow and cause potential hazard.
5
Press the lid release button to open the lid.
6
Wipe the outside of the inner pot dry, then put it in the rice
cooker. Check if the inner pot is in proper contact with the
heating element.
Note
•
Make sure that the outside of the inner pot is dry and clean, and that there
is no foreign residue on the heating element.
7
Close the lid of the rice cooker, and put the plug in the power
socket.
8
Press the menu button ( ) until the rice cooking function is
selected.
9
Press and hold the start button ( ) for 3 seconds to start
cooking.
10
When the cooking is finished, you will hear 4 beeps and the
selected cooking function light will be off.
11
The rice cooker will be in keep-warm mode automatically.
» The keep-warm indicator ( ) lights up.
Note
•
After the cooking is finished, stir the rice and loosen it immediately to
release excessive moisture for fluffy rice.
•
Depending on the cooking conditions, the bottom portion of the rice may
become slightly browned.
Making soup (fig. 6)
1
Put ingredients and water into the inner pot.
2
Follow steps 6 and 7 in "Cooking rice".
3
Press the menu button ( ) until the soup cooking function
is selected.
» To set a different cooking time, refer to chapter "Adjusting
the cooking time".
4
Press and hold the start button ( ) for 3 seconds to start
cooking.
5
When the cooking is finished, you will hear 4 beeps and the
selected cooking function light will be off.
6
The rice cooker will be in keep-warm mode automatically.
» The keep-warm indicator ( ) lights up.
4s
Cooking congee (fig. 6)
1
Follow steps 1 to 7 in "Cooking rice".
Note
•
Do not exceed the maximum water level indicated in the inner pot,
as this may cause the rice cooker to overflow.
Tip
•
Besides following the water level indications, you may also add rice
4s
and water at 1:4 ratio for congee cooking
2
Press the menu button ( ) until the congee cooking function
is selected.
» To set a different cooking time, refer to chapter "Adjusting
the cooking time".
3
Press and hold the start button ( ) for 3 seconds to start
cooking.
4
When the cooking is finished, you will hear 4 beeps and the
selected cooking function light will be off.
5
The rice cooker will be in keep-warm mode automatically.
The keep-warm indicator ( ) lights up.
»
Stewing (fig. 6)
1
Put the food and ingredients in the inner pot.
2
Follow steps 6 and 7 in "Cooking rice".
3
Press the menu button ( ) until the stewing function is
selected.
» To set a different cooking time, refer to chapter "Adjusting
the cooking time".
4
Press and hold the start button ( ) for 3 seconds to start
cooking.
5
When the cooking is finished, you will hear 4 beeps and the
selected cooking function light will be off.
6
The rice cooker will be in keep-warm mode automatically.
» The keep-warm indicator ( ) lights up.
Making yogurt (fig. 7)
1
Whisk the ingredients for the yogurt well and put them in the
sealed containers.
Note
•
Use sealed containers which are made of food-grade plastics or glass
that can bear temperature more than 80°C.
2
Put the containers in the inner pot. Make sure that containers
sealed.
3
Pour some water in the inner pot. Make sure that half of the
containers are immersed in water.
4
Follow steps 6 and 7 in "Cooking rice".
5
Press the menu button ( ) until the yogurt making function
is selected.
» To set a different cooking time, refer to chapter "Adjusting
the cooking time".
6
Press and hold the start button ( ) for 3 seconds to start
cooking.
7
When the cooking is finished, the rice cooker beeps and
switches to stand by mode automatically.
Cooking claypot rice (fig. 8)
1
Follow steps 1 to 7 in "Cooking rice".
2
Press the menu button ( ) until the claypot rice cooking
function is selected.
3
Press and hold the start button ( ) for 3 seconds to start
cooking.
4
After the rice is cooked for some time, the rice cooker beeps
for a while.
5
Add the ingredients for the claypot rice by placing them on top
of the rice. Close the lid to resume the cooking process.
6
When the cooking is finished, you will hear 4 beeps and the
selected cooking function light will be off.
7
The rice cooker will be in keep warm mode automatically.
» The keep-warm indicator ( ) lights up.
