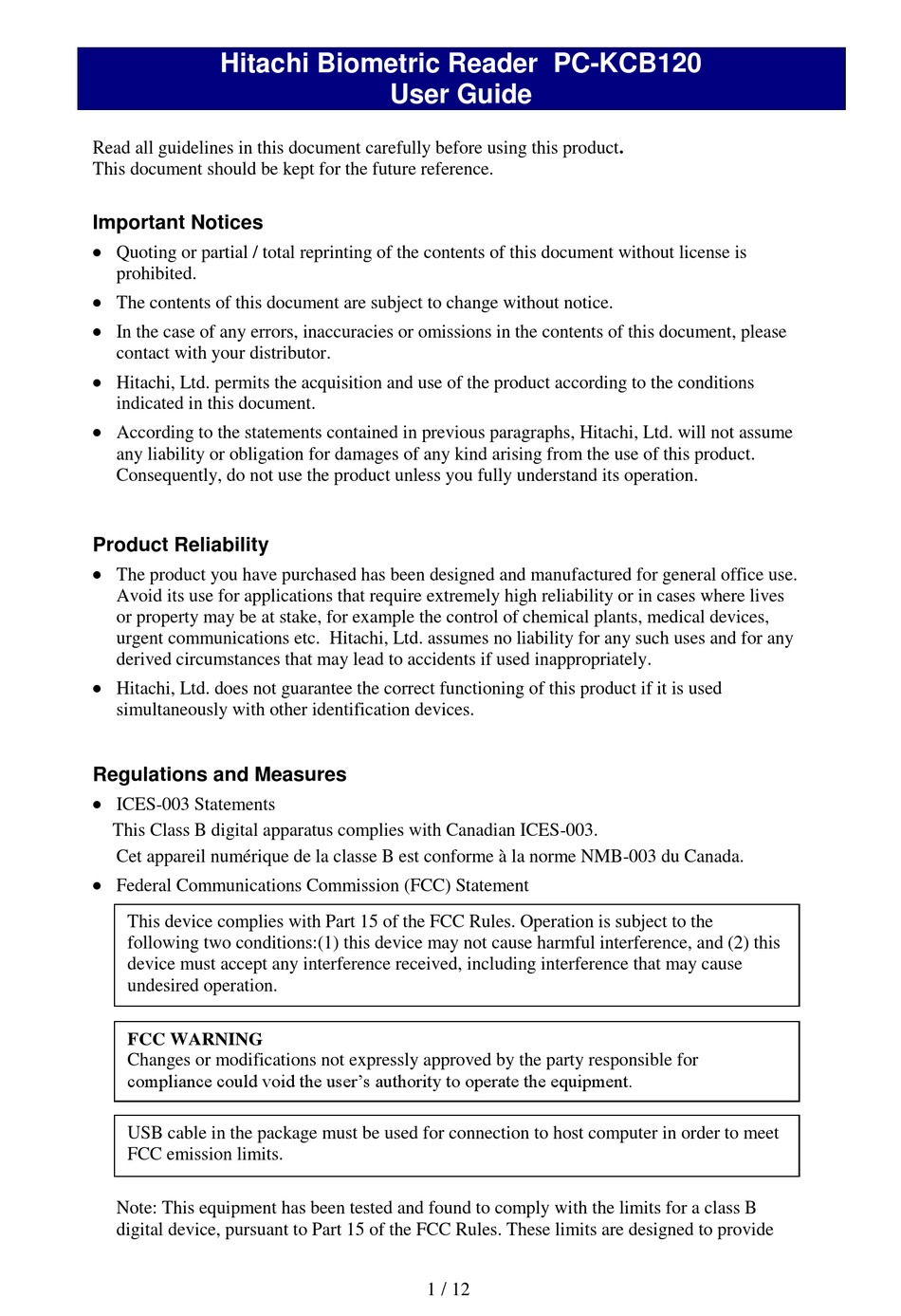

Hitachi Biometric Reader PC-KCB120
Read all guidelines in this document carefully before using this product.
This document should be kept for the future reference.
Important Notices
Quoting or partial / total reprinting of the contents of this document without license is
prohibited.
The contents of this document are subject to change without notice.
In the case of any errors, inaccuracies or omissions in the contents of this document, please
contact with your distributor.
Hitachi, Ltd. permits the acquisition and use of the product according to the conditions
indicated in this document.
According to the statements contained in previous paragraphs, Hitachi, Ltd. will not assume
any liability or obligation for damages of any kind arising from the use of this product.
Consequently, do not use the product unless you fully understand its operation.
Product Reliability
The product you have purchased has been designed and manufactured for general office use.
Avoid its use for applications that require extremely high reliability or in cases where lives
or property may be at stake, for example the control of chemical plants, medical devices,
urgent communications etc. Hitachi, Ltd. assumes no liability for any such uses and for any
derived circumstances that may lead to accidents if used inappropriately.
Hitachi, Ltd. does not guarantee the correct functioning of this product if it is used
simultaneously with other identification devices.
Regulations and Measures
ICES-003 Statements
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Federal Communications Commission (FCC) Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:(1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
USB cable in the package must be used for connection to host computer in order to meet
FCC emission limits.
Note: This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
User Guide
1 / 12
Advertisement
Table of Contents
Related Manuals for Hitachi PC-KCB120
Summary of Contents for Hitachi PC-KCB120
- Page 1 Hitachi, Ltd. assumes no liability for any such uses and for any derived circumstances that may lead to accidents if used inappropriately.
- Page 2 reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no guarantee that interference will not occur in a particular installation.
-
Page 3: What's In The Box
1. Introduction 1. Introduction Hitachi gratefully acknowledges your purchase of the Hitachi USB Finger Vein Biometric Authentication Unit (hereafter referred to as “Biometric Reader”). The objective of this document is to provide a basic understanding of how to handle and use the Biometric Reader. -
Page 4: Rating Label
The indicator LED shows the status of the Biometric Reader. Depending on its color and blinking state, please take an appropriate action. Note that Hitachi Finger Vein Biometric PKI Middleware (C-N1719-11) (hereafter called the Middleware) needs to be installed in the PC. -
Page 5: Connect The Usb Cable
2. Installation of the Biometric Reader 2.1 Place the Biometric Reader Install the Biometric Reader on a horizontal and stable place. No light through a window or from lamps should enter the scanning area of the Biometric Reader. It is recommended that you use the Biometric Reader in the 300-1000 lx luminance environment, which is equivalent to brightness suitable for reading a newspaper. - Page 6 2.3 Check the Biometric Reader is recognized After connecting the Biometric Reader to your PC, check that the Biometric Reader is recognized correctly by the PC. Note that Windows uses the Human Interface Device driver to access the Biometric Reader, so you do not need to install a specific device driver for the Biometric Reader.
- Page 7 3. How to use the Biometric Reader 3.1 How to insert / remove the Smart Card Disconnect the USB cable before you insert or remove the Smart Card. - Insertion Insert the Smart Card to the slot with the contact part in front. Pinching the Smart Card with fingers from both sides of the card and insert it into the slot.
- Page 8 3.2 How to perform a finger vein authentication Place your finger on the scanning area of the Biometric Reader. Place your fingertip on the groove of the back finger rest. Place the underside of your finger gently on the front finger rest as indicated by the red circle in the illustration below.
- Page 9 Biometric Reader maintenance 4. Biometric Reader maintenance Attention Disconnect the USB cable before the maintenance of your Biometric Reader. Keeping the cable connected during maintenance may cause failures. Take caution so that the Biometric Reader is not exposed to any liquid or humidity as it may cause malfunctioning.
-
Page 10: Hardware Specifications
5. Hardware specifications Name Biometric Reader Model PC-KCB120 Applicable finger width *1 Wider than 10 mm/0.4 inch and narrower than 25 mm/1 inch Interface USB 1.1 *2 *3 *4 Approx. Dimensions 69mm/2.7inch(W) x 97mm/3.8inch(D)x 79mm/3.1inch(H) (USB cable not included) Approx. - Page 11 The supported Smart Card is not inserted. → Insert the supported Smart Card. You need to insert a Smart Card in which Hitachi Hitachi Finger Vein PKI CAP F (C-N190F-43) is installed. The required software is not installed.
-
Page 12: User Guide
The software and the manual can be used and managed under the responsibility of the administrator registered in the relevant document of Biometric Reader. Without the express consent of Hitachi, Ltd., the following is prohibited: 1. Reproduction, photocopying or transference of this user's guide contents, either partially or in its entirety, as well as the transfer of the registration information contained in the Unit memory.
