WAVFR User Manual
What is WAVFR
WAVFR allows mechanical switches and logic levels to add additional control of a Rako Wired
system.
This includes inputs from Alarm sensors, PIR modules, Thermo sensors, Light detectors. In fact
anything that can provide an electrical contact or a DC logic output.

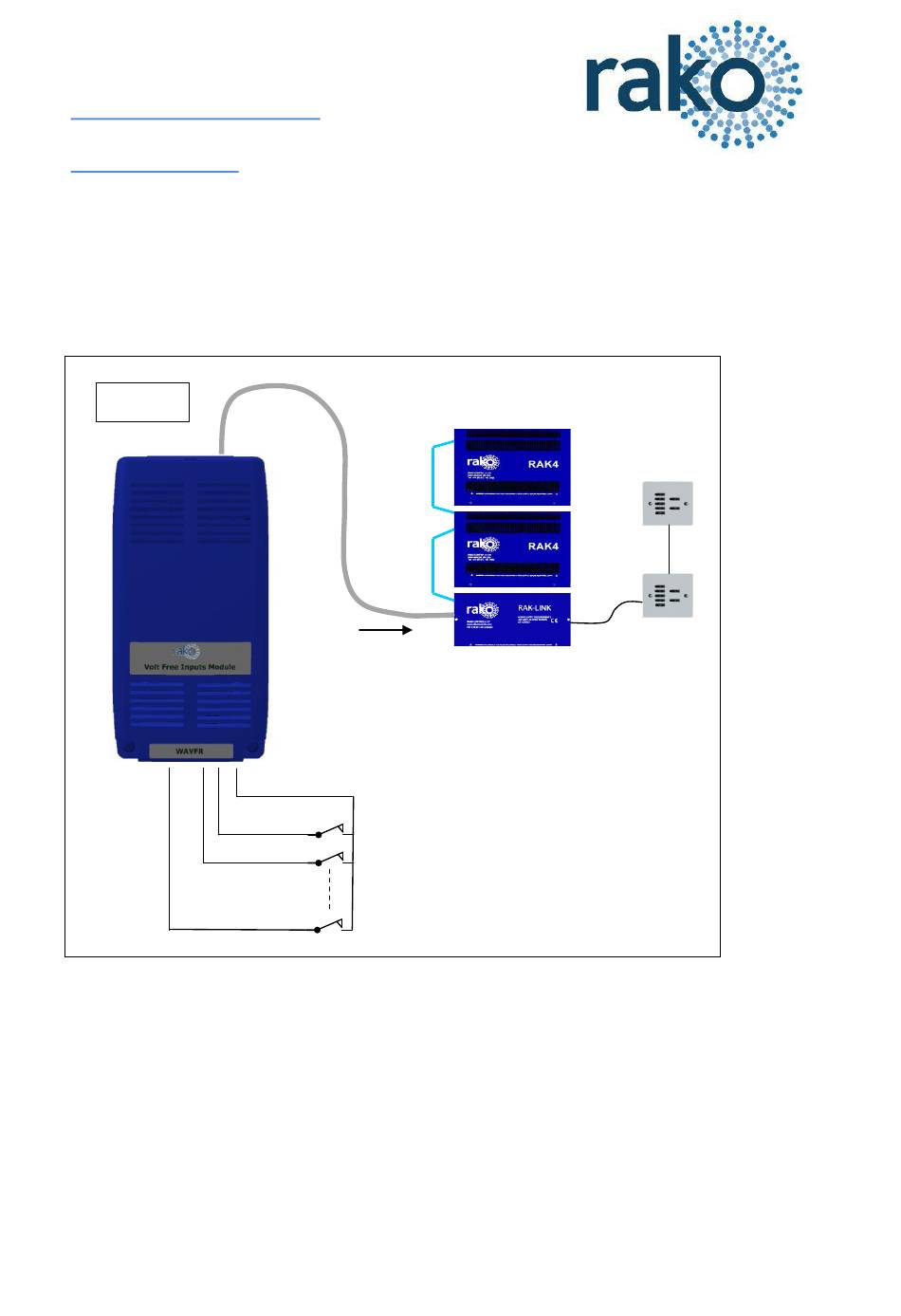

Figure 1
Issue A Nov 2011
Send Commands to
Rako Wired system
Up to Ten Volt
free switches or
Logic Level Inputs
Page 1 of 5
