Summary of Contents for Varad Vision ULX210
- Page 1 ULX210 COLOR CHANGING LED UNDERCAR LIGHTING SYSTEM Installation Manual...
-
Page 2: Technical Specifications
Technical Specifications Colors: 1000 Patterns: 1 Strobe, 1 breathing Auto Color Change, 9 preset colors Auxiliary input for trigger with +12v Current draw - 40 ma to 2.7 amps depending on mode, color or pattern LED LightBar: Long LED LightBar length is 48.5” +/- 0.5” Short LED LightBar length is 25”... -
Page 3: Parts List

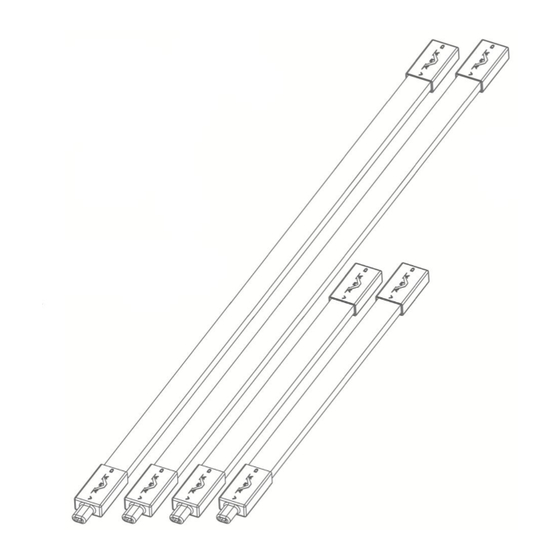

Parts list Two 48.5” LED lightbars. Two 25” LED lightbars. Power harness with LED indicator, switch and fuse. Self tapping screws, 12pcs. Tie straps, 12pcs. Mounting clamps, 12pcs. Installation manual. Items not show to scale Push button switch LED Lightbars LED indicator Mounting clamp... -
Page 4: Required Tools
Required tools • Wire strippe • Wire cutte • Assorted drill bit • Cordless dril • Screwdrive Installation of LED lightbars Visually inspect underneath your vehicle to determine a suitable location for mounting each LED lightbar. Hold the LED lightbar up in the prospective mounting location to verify that it will not interfere with existing parts under the vehicle. - Page 5 Installation of LED & Switch Install the single button momentary switch and LED indicator inside the vehicle. Find a location that will allow all the wires to the LED lightbars to connect without binding. The momentary switch should be installed in a location within reach of the driver.
- Page 6 Wiring Schematic Front of vehicle Use provided Blue wire heat shink to Green wire attach same White wire color wires Purple wire Brown wire Black wire • Momentary switch • LED indicator solder and heat-shrink points while soldering is not necessary it will make for a more secure install —...
- Page 7 • Black wire - Negative (ground), and momentary switch / LED indicator When all LED lightbars are connected and installed you can proceed to heat-shrink all connectors into the ULX210 push button control and LED indicator. Proceed to the “Operation of ULX210” section.
- Page 8 Operation of ULX210 The ULX210 is operated with a single button remote control. All features can be controlled by two types of button operations: • “Push and Hold” (greater than 1 second) to change modes. • “Push and release” (momentary) to change features in selected mode.
-
Page 9: Auxiliary Lighting
Operation of ULX210 Continued There are three modes of operation: Mode 1 - Color Wash Mode 2 - Strobe / Breath Mode 3 - Preset Colors Refer to “Mode Features” on page 11 for details on features for each mode. - Page 10 Mode Operation flow chart “Push and Hold” to change modes MODE 1 COLOR WASH MODE 2 STROBE / BREATHING MODE 3 PRESET COLORS...
- Page 11 Mode Features Mode 1 • Color Wash Mode 1 allows you to select the system color. To set system color push the button momentarily and the digital controller will begin the color wash process. Each time you push the button momentarily the system will start and stop the color wash process leaving you your selected color.
-
Page 12: Trouble Shootig
Trouble Shootig System does not turn “ON” Check “Ignition Wire”, make sure it is getting constant 12 volts positive when engine is “ON”. Check fuse. If fuse looks bent or blown replace with a 5amp fast acting glass fuse. LED lightbar does not work. Check to see that cable between LED lightbar and wire harness is not damaged. -
Page 13: Warranty
Warranty VARAD’s product warranty covers against breakage due to defects in materials or workmanship for one year from the date of purchase. Warranty is only valid with proof of purchase from an Authorized VARAD Dealer. VARAD’s warranty program does not cover cosmetic damage, and damage due to acts of God, accident, misuse, abuse or negligence to the product.
