Breville Cli-mate CLI-DH8D Instruction Book

Breville Cli-mate CLI-DH8D Instruction Book

Air dehumidification system
Hide thumbs

Advertisement

Quick Links

Download this manual
Air Dehumidification System
Instruction Book – CLI-DH8D
by

Advertisement

loading

Related Manuals for Breville Cli-mate CLI-DH8D

Summary of Contents for Breville Cli-mate CLI-DH8D

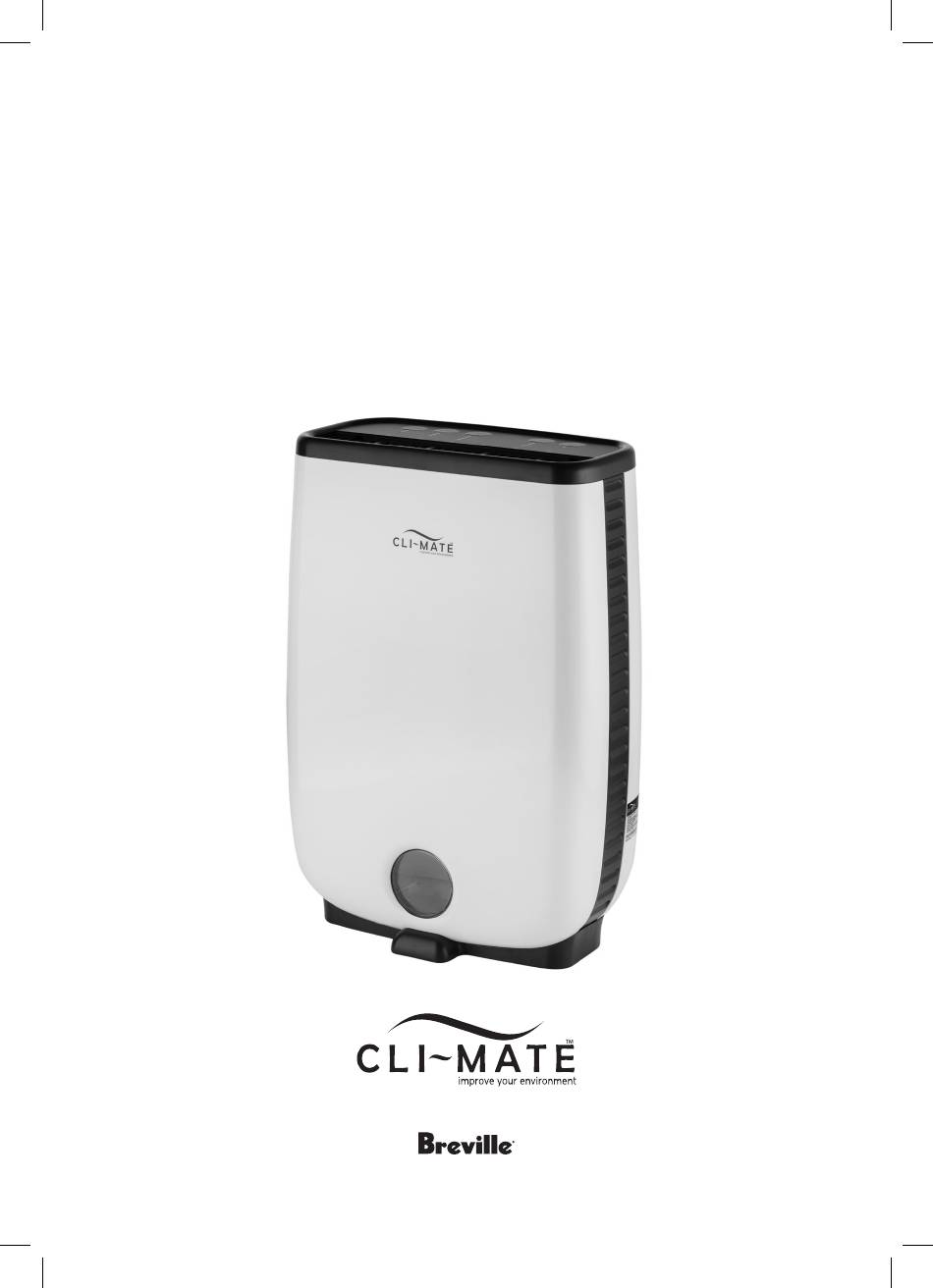

  • Page 1 Air Dehumidification System Instruction Book – CLI-DH8D...

  • Page 2: Table Of Contents

    IMPORTANT Contents SAFEGUARDS READ ALL 2 Cli-Mate Recommends Safety First INSTRUCTIONS BEFORE 7 Components USE AND SAVE FOR 9 Functions FUTURE REFERENCE 12 Care & Cleaning 13 Troubleshooting • All components need to be installed in accordance CLI-MATE with the user manual RECOMMENDS instructions for correct performance of unit.
  • Page 3 • Do not operate any • Unplug from outlet when appliance with a damaged not in use and before cord or plug or after the cleaning. Never plug in appliance malfunctions, or or unplug unit with wet has been damaged in any hands.
  • Page 4 SPECIAL • Keep the unit away from fire, flammable gas, PRODUCT combustible products INSTRUCTIONS or vapours, and corrosive substances. • This appliance is designed • Do not operate the unit for household use only. Do without filters. not use • When transporting the this unit outdoors or on air purifier, always hold wet surfaces.
  • Page 5 IMPORTANT • Empty the water when water reservoir is full or SAFEGUARDS not in use for a prolonged FOR ALL period. ELECTRICAL • Recommended operating temperature range is APPLIANCES minimum 5 degrees • Unwind the power cord Celsius (RH 41%) and fully before use.
  • Page 6 • Children should be • This appliance is supervised to ensure recommended for they do not play with household use only. the appliance. Do not use this appliance for anything other than • It is recommended its intended use. Do not to regularly inspect the use in moving vehicles or appliance.

  • Page 7: Components

    Components A. Dry Air Outlet F. Power Cord B. Handle G. LED Monitor C. Humid Air Inlet Grille H. Control Panel D. Continuous Drainage Outlet I. Water Pane (For hose connection)* * Continuous drainage hose is an extra drainage option; hose does not need to be connected if using E.
  • Page 8 Components CONTROL PANEL POWER TIMER Turns unit ON/OFF. To set automatic off timer at 1 /2 / 4 /8 hour settings. MODE Allows selection of dehumidification speed • Quiet dehumidification (Low speed) Switches ionizer ON/OFF. • Normal dehumidification (Medium speed) •...

  • Page 9: Functions

    Functions OPERATION INSTRUCTIONS 1. Plug unit into power socket and press 3. To select room relative humidity (RH) POWER button to turn unit on, unit ratio, press HUMID button to select 40%- will beep three times and LED monitor 50%-60% respectively. When selecting lights will illuminate indicating current the HUMID ratios this will change the settings.
  • Page 10 6. As unit operates, condensed water will PROTECTION OF INTERNAL OVER drain into water reservoir. When water HEATING reservoir is full, unit will beep 10 times and In the event the unit malfunctions and WATER FULL indicator light will blink. overheats due to air intake or air outlet being Unit will automatically stop operating.
  • Page 11 Optional Continuous Drainage Installation 1. Ensure that unit is OFF and unplugged from wall socket. 2. Remove water reservoir out and connect water drain hose to spigot (continuous drainage outlet) as shown 3. The other end of this hose must be placed over a water drain.

  • Page 12: Care & Cleaning

    Care & Cleaning CAUTION: Before carrying out any STORAGE maintenance or cleaning of the unit, make If not using the unit for a prolonged period, sure that the power to the unit is turned off and switch off and unplug the unit, empty the water power cord is removed from the power socket.

  • Page 13: Troubleshooting

    Troubleshooting PROBLEM POSSIBLE CAUSES EASY SOLUTION • • No Power. Unit is not plugged into Check connection to wall socket. wall socket. • • No Air. Unit is not plugged into wall socket 1. Check connection to wall socket • •...
  • Page 14 Notes...
  • Page 15 Notes...
  • Page 16 Web: www.breville.co.nz Breville is a registered trademark of Breville Pty. Ltd. A.B.N. 98 000 092 928. Copyright Breville Pty. Ltd. 2018. Due to continued product improvement, the products illustrated/photographed in this brochure may vary slightly from the actual product.
