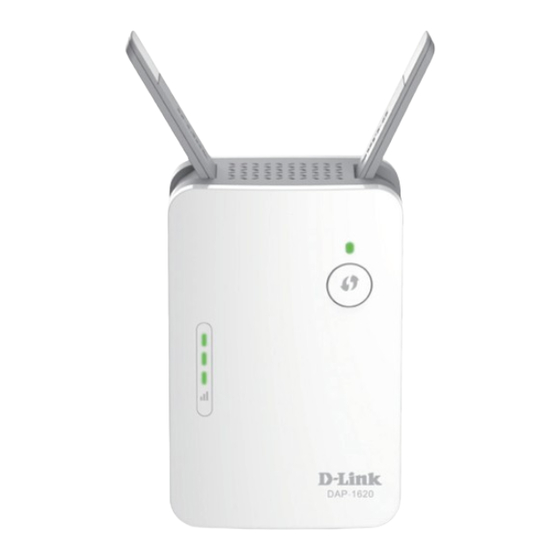

D-Link DAP-1620 Quick Install Manual

Ac1200 wi-fi range extender
Hide thumbs Also See for DAP-1620:
Table of Contents

Advertisement

Quick Links

See also: User Manual

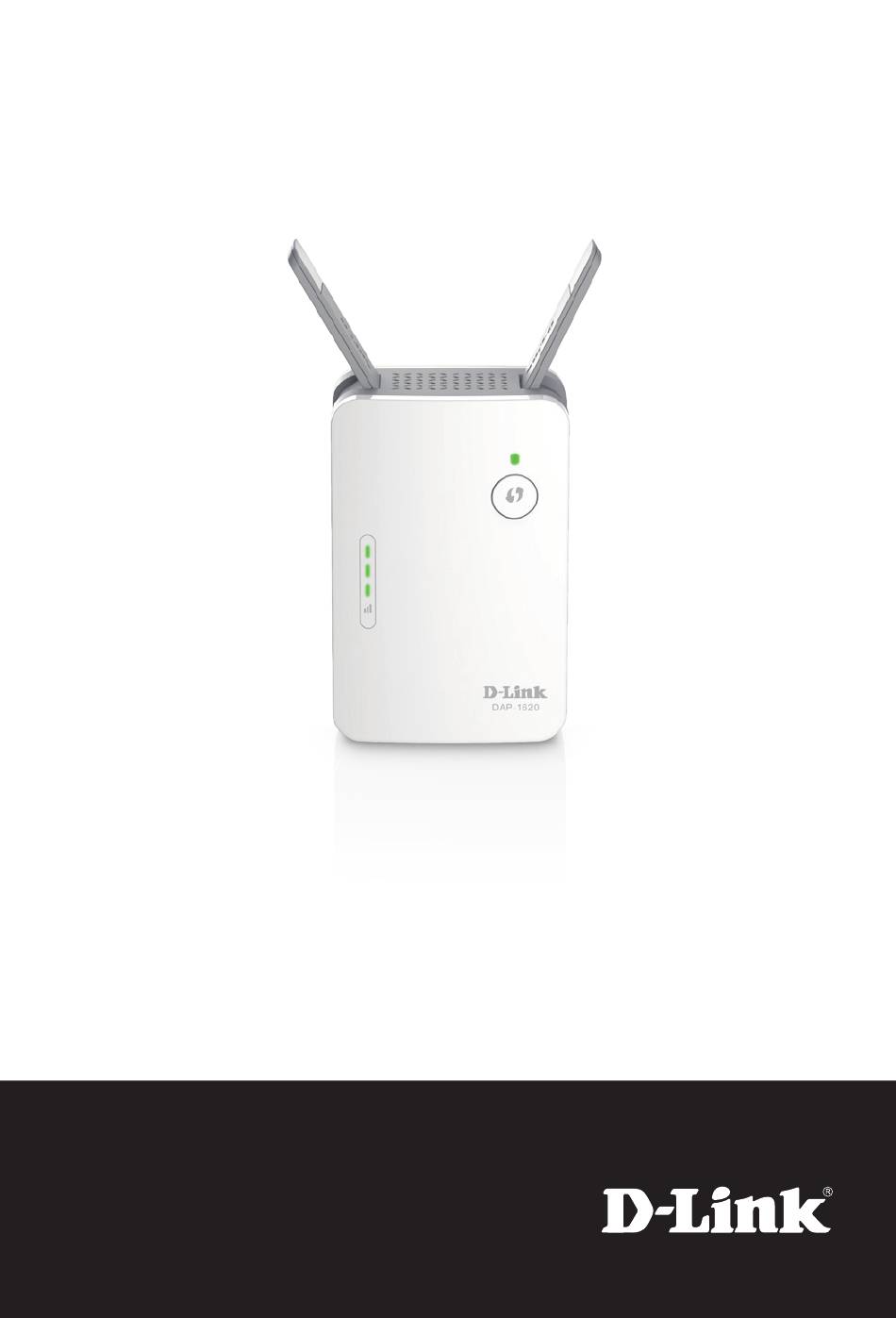

DAP-1620
AC1200 Wi-Fi
Range Extender
Quick Install Guide

Advertisement

Table of Contents
loading

Related Manuals for D-Link DAP-1620

Summary of Contents for D-Link DAP-1620

  • Page 1 DAP-1620 AC1200 Wi-Fi Range Extender Quick Install Guide...

  • Page 2: Package Contents

    • If your wireless router or access point does not support WPS, follow the steps under Configure the DAP-1620 Using QRS Mobile Setup to connect to the DAP-1620 and run the Setup Wizard. If you are not sure how to enable WPS on your wireless router, please refer to your router’s user manual.

  • Page 3: Product Overview

    The device is ready but not connected to an uplink Amber Blinking router. Status LED Indicates that the DAP-1620 is securely connected Solid to your wireless router or access point. Green The WPS button has been pushed and the device is Blinking processing a connection.
  • Page 4 It is recommened that you use Method One if your router has a WPS button. If your router does not support WPS or you are not sure, see Method Two, Configure the DAP-1620 Using QRS Mobile Setup, on page 6. Method One: Connect to Your...
  • Page 5 When the Status LED turns solid green, this indicates that the DAP-1620 is securely connected to your wireless router or access point. You can now unplug and move the DAP-1620 to a location between your wireless router and the area that you need wireless coverage.
  • Page 6 Once connected, tap on the QRS Mobile icon from your mobile device, then tap Start to continue. Please follow the on-screen instructions to complete the setup. Your setup is complete! To connect your wireless devices to your DAP-1620, see Connect Your Wireless Devices, on page 7 DAP-1620 Install Guide...

  • Page 7: Connect Your Wireless Devices

    • 2.4GHz (Your Router’s SSID)-EXT • 5GHz (Your Router’s SSID)-EXT5G The Wi-Fi password for the DAP-1620 will be the same as your router. Your device is now connected to the DAP-1620 and can connect to your wireless router. To connect additional devices, repeat step 1.

  • Page 8: Troubleshooting

    Note: If you have changed the Wi-Fi Network name, the device you are currently using to connect to the DAP-1620 will drop. You will need to open your wireless utility and connect to the DAP-1620 using the new network name and password.
  • Page 9 Where should I place my DAP-1620 when using it as a range extender? Poor Ideal location location Poor Ideal location location A Range Extender only works as well as the signal it is extending. Therefore, proper placement of your DAP-1620 is important in achieving desired results.
  • Page 10 Status LED on your Range Extender does not turn solid green after running WPS setup, try again. If it still does not turn solid green, see Configure the DAP-1620 Using QRS Mobile Setup, on page 6. DAP-1620 Install Guide...

  • Page 11: Gpl Code Statement

    GPL Code Statement This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL,...

  • Page 12: Technical Support

    Version 1.20(NA)_85X125 October 19, 2018 ©2018 D-Link. All rights reserved. D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries. All other third-party marks mentioned herein may be trademarks of their respective owners. This publication may not be reproduced,...
