Instruction Manual
Thank you for purchasing the FM-2023 mini parallel remover.
Please read this manual before operating the FM-2023. Keep this
• The FM-2023 cannot function by itself. It must be connected to an
FM-202 soldering station.
• Specific information can be found in the instruction manual for your
FM-202 soldering station.
1. PACKING LIST .........................................................1
2. SPECIFICATIONS ....................................................1
3. WARNINGS, CAUTIONS AND NOTES ...................2
4. PART NAMES ...........................................................3
5. SETTING UP THE FM-2023 ....................................3
6. OPERATION .............................................................4
7. MAINTENANCE .......................................................7
8. TROUBLESHOOTING GUIDE .................................8
9. PARTS LIST ...........................................................10
10. WIRING DIAGRAM ................................................11

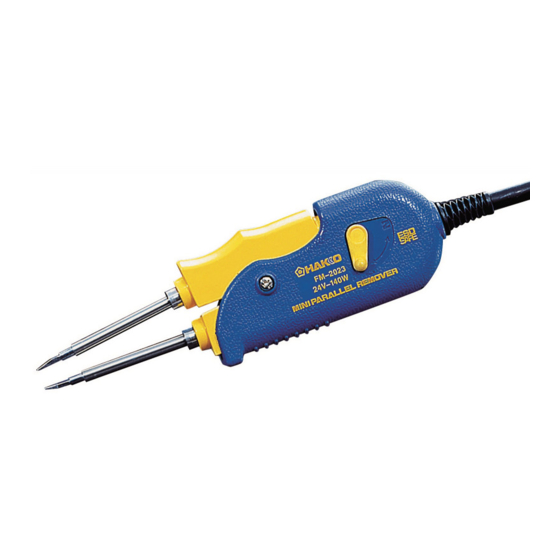

MINI PARALLEL REMOVER
manual readily accessible for reference.
TABLE OF CONTENTS
●
●
CAUTION
Advertisement
Related Manuals for Hakko Electronics FM-2023
Summary of Contents for Hakko Electronics FM-2023
-
Page 1: Table Of Contents
Please read this manual before operating the FM-2023. Keep this manual readily accessible for reference. ● CAUTION • The FM-2023 cannot function by itself. It must be connected to an FM-202 soldering station. • Specific information can be found in the instruction manual for your FM-202 soldering station. -
Page 2: Packing List
Component bed Tip ID number key Heat resistant pad Cleaning sponge Applicable Models In order to function, the FM-2023 must be connected to the FM-202 soldering station. 2. SPECIFICATIONS FM-2023 Mini parallel remover Power Consumption 140W (24 V) Temperature Range 200 –... -
Page 3: Warnings, Cautions And Notes
● Do not wet the unit or use the unit when your hands are wet. ● The operating process will produce smoke. Make sure the area is well ventilated. ● Pull on the plug to disconnect the FM-2023 from the station outlet. Do not pull the cord. -
Page 4: Part Names
1. Connect the plug to the FM-202. it is fully inserted. Receptacle 2. Place the FM-2023 in the iron holder. 3. Plug the power cord into the power supply. Be sure to ground the unit. Push the plug in as far as... - Page 5 ● Controls and displays Please refer to the FM-202 instruction manual. MODEL FM-202 CAUTION: Soldering station FM-2023 tips do not have a tip ID. Use the Tip ID number key. Process gate Receptacle NOTE: If the buzzer sounds three times when the...
- Page 6 300°C (572°F) for all normal work. Using 2. Switch lever on the handle the lowest possible effective temperature not The FM-2023 is double acting. only helps protect parts that are sensitive to heat, it also helps protect the tip from deterio- •...
- Page 7 Please refer to the FM-202 Instruction manual. ● Replacing the tip Removing and inserting the tip: FM-2023 24V-140W Removing the tip: Hold the handle and pull the tip out of the Hold the handpiece at the front to remove tip.
- Page 8 2. Measure the resistance value between two pins. Pin 1 - Pin 3 7~9Ω Pin 5 - Pin 3 8~10KΩ Pin 7 - Pin 4 7~9Ω Pin 8 - Pin 4 8~10KΩ If the measured value exceeds above values, re- place the FM-2023.
- Page 9 ● The soldering iron error CHECK : Is the connection cord broken? ACTION : See “Checking the connection cord is displayed. for breakage”. • The LED heater lamp does not CHECK : Is the FM-2023 plug disconnected? light. ACTION : Connect the FM-2023.
- Page 10 : Is the tip for FM-2023? ● Heater terminal short ACTION : Turn the power switch OFF and in- circuit error is dis- sert the correct FM-2023 tip. Turn the played. power switch ON. ● The tips cannot be CHECK : Is there a foreign object between the closed.
- Page 11 9. PARTS LIST Mini parallel remover Item No. Part No. Part Name Specifications B2300 Heat resistant pad B2847 Tip ID number key B2848 Holder clip With screw A1519 Cleaning sponge B2849 Component bed w/o tip Handpiece only FM2023-02 Tips ...
- Page 12 10. WIRING DIAGRAM P.W.B/LED LED1 HEAD OFFICE 4-5, SHIOKUSA 2-CHOME, NANIWA-KU, OSAKA, 556-0024 JAPAN TEL:+81-6-6561-3225 FAX:+81-6-6561-8466 http://www.hakko.com AMERICAN HAKKO PRODUCTS, INC. 28920 N. AVENUE WILLIAMS VALENCIA CA 91355, U.S.A. TEL: (661) 294-0090 FAX: (661) 294-0096 Toll Free (800)88-HAKKO www.hakkousa.com 4 2 5 5 6 2005.12 MA01234JZ051219...
