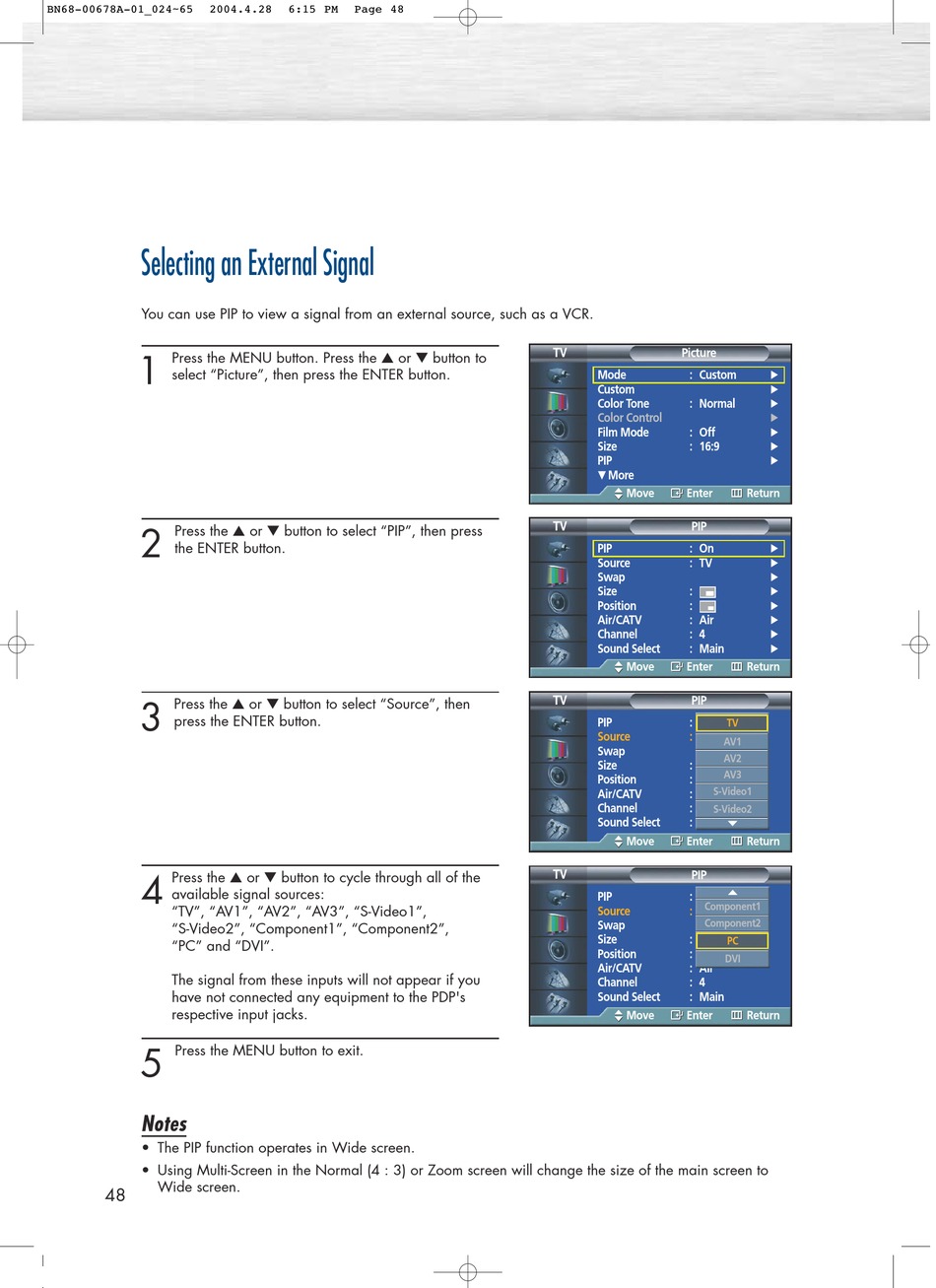

Selecting an External Signal
You can use PIP to view a signal from an external source, such as a VCR.
Press the MENU button. Press the ▲ or ▼ button to
1
select "Picture", then press the ENTER button.
Press the ▲ or ▼ button to select "PIP", then press
2
the ENTER button.
Press the ▲ or ▼ button to select "Source", then
3
press the ENTER button.
Press the ▲ or ▼ button to cycle through all of the
4
available signal sources:
"TV", "AV1", "AV2", "AV3", "S-Video1",
"S-Video2", "Component1", "Component2",
"PC" and "DVI".
The signal from these inputs will not appear if you
have not connected any equipment to the PDP's
respective input jacks.
Press the MENU button to exit.
5
Notes
• The PIP function operates in Wide screen.
• Using Multi-Screen in the Normal (4 : 3) or Zoom screen will change the size of the main screen to
Wide screen.
48
6:15 PM Page 48
TV
Mode : Custom
Custom
Color Tone : Normal
Color Control
Film Mode : Off
Size : 16:9
PIP
† More
Move Enter
PIP
TV
PIP : On
Source : TV
Swap
Size :
Position :
Air/CATV : Air
Channel : 4
Sound Select : Main
Move Enter
PIP
TV
PIP : Off
TV
Source : TV
AV1
Swap
AV2
Size :
AV3
Position :
S-Video1
Air/CATV : Air
Channel : 22
S-Video2
Sound Select : Main
†
Move Enter
TV PIP
...
PIP : Off
Component1
Source : TV
Component2
Swap
Size :
PC
Position :
DVI
Air/CATV : Air
Channel : 4
Sound Select : Main
Move Enter
√
√
√
√
√
√
√
Return
√
√
√
√
√
√
√
√
Return
Return
Return
