Asus Zenfone ZE551KL User Manual

User Guide

E10822
Charging your ASUS Phone
To charge your ASUS Phone:
1. Connect the USB connector into the power adapter's
USB port.
2. Connect the other end of the micro USB cable to
your ASUS Phone.
3. Plug the power adapter into a wall socket.
3
2
1
IMPORTANT!
• When using your ASUS Phone while it is plugged to
a power outlet, the grounded power outlet must be
near to the unit and easily accessible.
• When charging your ASUS Phone through your
computer, ensure that you plug the micro USB
cable to your computer's USB 2.0 / USB 3.0 port.
• Avoid charging your ASUS Phone in an
environment with ambient temperature of above
o o
35 C (95 F).
NOTES:
• Use only the power adapter that came with your
device. Using a different power adapter may
damage your device.
• Using the bundled power adapter and ASUS Phone
signal cable to connect your ASUS Phone to a
power outlet is the best way to charge your ASUS
Phone.
• The input voltage range between the wall outlet and
this adapter is AC 100V - 240V. The output voltage
of the micro USB cable is DC +5.2V, 1A, 5W.
First Edition/ August 2015
Model: ZE551KL (ASUS_Z00TD)
Before you start, ensure that you have read all the safety
information and operating instructions in this User Guide
to prevent injury or damage to your device.
NOTE: For the latest updates and more detailed
information, please visit www.asus.com.

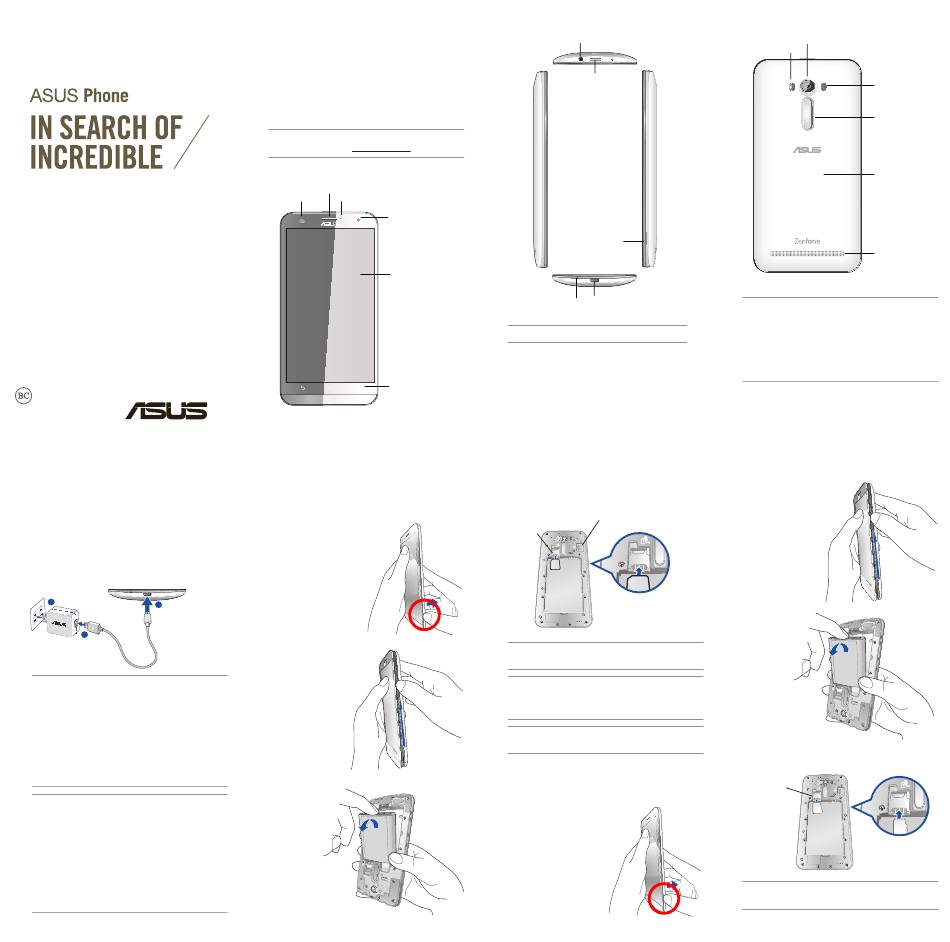

Front features
Receiver
LED indicator Sensor
Front camera
Touch screen
display
Touch keys
Installing a micro SIM card
To install a micro SIM card:
1. Locate the groove on the
bottom-right corner of your
ASUS Phone.
2. Pry the cover loose
and then pull the
rear cover off.
3. Remove the battery.
Side features
Audio jack
Power Key
Groove
Micro USB port
Microphone
NOTE: Pry open the rear cover from the groove.
4. Insert the micro SIM card into one of the micro SIM
card slots.
Micro SIM card slot 2
Micro SIM/
microSD combo
card slot
NOTE: The micro SIM card slot 1 is at the lower part of
the micro SIM/ microSD combo card slot.
IMPORTANT: Both micro SIM card slots support 3G
WCDMA/ 4G LTE network band. But only one micro
SIM card can connect to 3G WCDMA/ 4G LTE service
at a time.
CAUTION: Do not use sharp tools or solvent on your
device to avoid scratches on it.

Installing a microSD card

To install a microSD card:
1. Locate the groove on the
bottom-right corner of your
ASUS Phone.
Rear features
Rear camera
Camera flash
Laser focus
Volume key
Rear cover
Speaker
NOTES:
• Remove the rear cover to display the dual micro
SIM and microSD card slots.
• The micro SIM card slots support LTE, WCDMA,
and GSM/EDGE network bands.
• The microSD card slot supports microSD and
microSDHC card formats.
2. Pry the cover loose
and then pull the
rear cover off.
3. Remove the battery.
4. Insert the microSD card into the microSD card slot.
Micro SIM/
microSD combo
card slot
NOTE: The microSD card slot is at the upper part of the
micro SIM/ microSD combo card slot.
