Bosch ICP-EZTS Installation Manual

6 |
1.
2. x.x in ( x.x mm)??
x.x in ( x.x mm)??
F01U001670B
F 101 - 105 mm (3.95 - 4.1 in.) 99 - 103 mm (3.85 - 4.0 in.)
E 97 - 101 mm (3.8 - 3.95 in.) 95 - 99 mm (3.7 - 3.85 in.)
D 93 - 97 mm (3.65 - 3.8 in.) 91 - 95 mm (3.55 - 3.7 in.)
C 89 - 93 mm (3.5 - 3.65 in.) 87 - 91 mm (3.4 - 3.55 in.)
B 85 - 89 mm (3.35 - 3.5 in.) 83 - 87 mm (3.25 - 3.4 in.)
A 81 - 85 mm (3.2 - 3.35 in.) 79 - 83 mm (3.1 - 3.25 in.)
8 |
x.x in (x.x mm)
F01U027116B
F
120- 124 mm (4.72 - 4.88 in.) 118 - 122 mm (4.64 - 4.80 in.)
E 116 - 120 mm (4.56 - 4.72 in.) 114 - 118 mm (4.48 - 4.64 in.)
D 112 - 116 mm (4.4 - 4.56 in.) 110 - 114 mm (4.33 - 4.48 in.)
C 108 - 112 mm (4.25 - 4.4 in.) 106 - 110 mm (4.17 - 4.33 in.)
B 104 - 108 mm (4.09 - 4.25 in.) 102 - 106 mm (4.01 - 4.17 in.)
A 100 - 104 mm (3.93 - 4.09 in.) 98 - 102 mm (3.85 - 4.01 in.)
MOD-2
MODULE RELEASE
MOD-1
29 30
PWR+/R PWR+/R
28 29
A/Y A/Y
olice olice
27 28
B/G B/G
ting ting
27 26
COM/B COM/B
ire ire
26 26
PWR+/R PWR+/R
25 25
A/Y A/Y
TAMPER
24 24
B/G B/G
COM/B COM/B 23 23
TMPR
ZONEX ZONEX TAMPER TAMPER RESET RESET
ZONEX TMPR
7 |
0% to 93% at +40°C (+104°F)
UL: 0% to 85% at +30°C (+86°F)
Non-condensing
-10°C to +55°C (+14°F to 131°F)
UL: 0°C to +49°C (+32°F to +120°F)
Changes or modifications not expressly approved
by Bosch Security Systems, Inc. can void the user's
authority to operate the equipment.
Copyright
This document is the intellectual property of Bosch
Security Systems, Inc., and is protected by copyright.
All rights reserved.
Trademarks
All hardware and software product names used in
this document are likely to be registered trademarks
and must be treated accordingly.
Bosch Security Systems, Inc. product manufacturing
dates
Use the serial number located on the product label
and refer to the Bosch Security Systems, Inc. website
at http://www.boschsecurity.com/datecodes/.

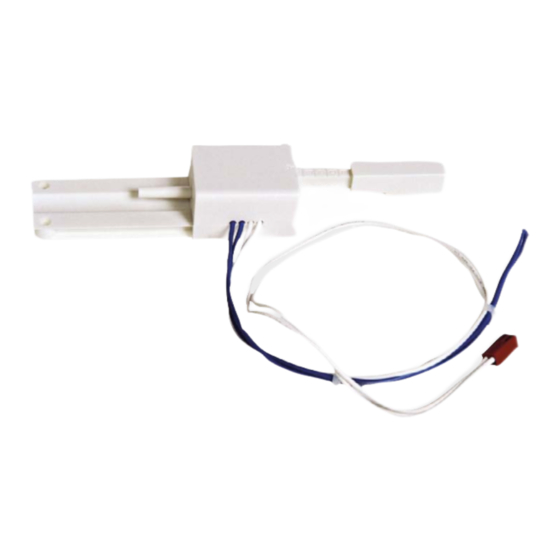

ICP-EZTS Tamper Switch
de Installationshandbuch
el Οδηγός εγκαταστάτη
en Installation Guide
es Manual de instalación
fr Guide de l'installateur
it Manuale di installazione
nl Installatiehandleiding
pt-BR Guia de Instalação
ru Руководство по установке
tr Montaj Kılavuzu
zh-CHS 安装指南
ICP-EZTS Install
Bosch Security Systems, Inc. Bosch Sicherheitssysteme GmbH
130 Perinton Parkway Robert-Bosch-Ring 5
Fairport, NY 14450 85630 Grasbrunn
USA Germany
www.boschsecurity.com
© 2018 Bosch Security Systems, Inc.
F.01U.003.734 | 05 | 2018.10
