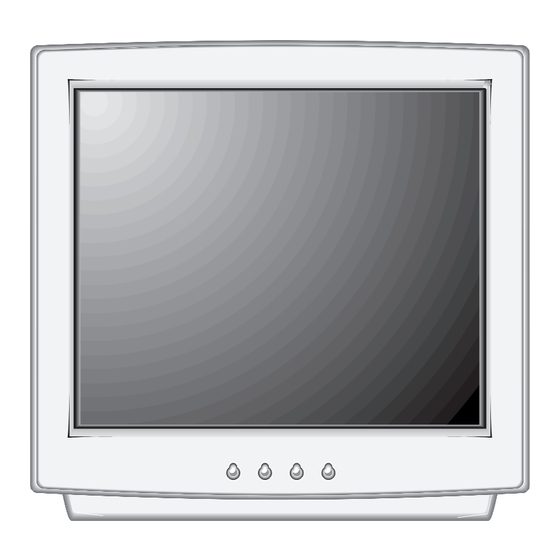

- Page 1 SyncMaster 750ST Color Monitor Owner’s Instructions...
-
Page 2: Safety Instructions
Be sure to hold the plug, not the cord, when disconnecting the monitor from an electric socket. Openings in the monitor cabinet are provided for ventilation. -
Page 3: Table Of Contents
Connecting Your Monitor & Speakers ........ -
Page 4: Your New Monitor
Your New Monitor Please make sure the following items are included with your monitor. If any items are missing, contact your dealer. Manual Stereo input cable DC input cable Monitor Left output cable Warranty Card Speaker Assembly (Not available in all locations) -
Page 5: Speaker Assembly
(Note: Left and right speakers are not identical.) Install the two retainers ( a, b ) at the two front-most holes on left and right side of the monitor and then put a third retainer ( c ) in the rear-most hole on left and right side of the monitor. -
Page 6: Connecting Your Monitor & Speakers
Your New Monitor Connecting Your Monitor & Speakers Caution : Turn the power off to the monitor, computer and speakers before connecting or disconnecting the speakers. Signal cable Connect the end of the signal cable to your computer’s video port. If you are... -
Page 7: Control Viewing Angle
Your New Monitor Control Viewing Angle Control the viewing angle to allow the user optimum viewing. (This monitor can tilt up and down from 4 to 11 degrees.) Control Turn the stand feet underneath the monitor to control viewing angle. -
Page 8: Multimedia Speakers
BBS button Push the BBS (bass boost sound) button to amplify a specific frequency band for audio. (The BBS purpose is to amplify 6-8 dB at 100 Hz band. Therefore, the amplification provided by the BBS is dependant on input signal.) -
Page 9: Front Panel
Your New Monitor Front Panel EXIT ( ) button Closes the on-screen menu. It is also used to return to the previous menu when using the on-screen menu system. These buttons allow you to select and adjust items using the on-screen menu. -
Page 10: Direct Access Buttons
Your New Monitor Direct Access Buttons Most of the adjustments you make to your monitor will be accessed through the on-screen menu described in the next section. The Contrast and Brightness features can also be accessed directly from the front of your monitor. -
Page 11: Operation
On-screen Menu System Your monitor has an on-screen menu system, accessed by the buttons on the front of your monitor, that allows you to adjust characteristics of the screen image. Display changes are indicated by on-screen adjustment icons. Some functions have sub-menus. -
Page 12: Monitor Function Control
Icon Monitor Function Control Brightness Background brightness of screen. -– Decreases brightness + Increases brightness Contrast Contrast of screen image. -– Decreases contrast + Increases contrast Horizontal Position Horizontal screen position. -– Moves screen left + Moves screen right Vertical Position Vertical screen position. -
Page 13: Pincushion
Straightens screen vertical edges. -– Curves image inward + Curves image outward Geometry Trapezoid Width of top and bottom of screen. -– Widens bottom of screen + Widens top of screen Parallelogram -– Skews screen image left + Skews screen image right Rotation -–... -
Page 14: Language
+ Select 1.0 V Color Temperature -– 9300k more blue + 6500k more red Halftone -– Off + On Operation 1 2 3 4 5 6 7 8 9 + - : English Language English Access Function Exit Menu Advanced... -
Page 15: Zoom
You can unlock the OSD controls at any time by using the same procedure. Push and hold the Menu ( for 10 seconds or more to Lock or to Unlock. Operation ) button English... -
Page 16: Troubleshooting
Troubleshooting Before calling for service, check the information in this section to see if you can solve the problem yourself. If you do need assistance, please call the phone number on the warranty card, the phone number on the back cover of this manual, or contact your dealer. -
Page 17: Powersaver
This monitor has a built-in power management system called PowerSaver. This system saves energy by switching your monitor into a low-power mode when it has not been used for a certain amount of time. The monitor automatically returns to normal operation when you move the computer's mouse or press a key on the keyboard. -
Page 18: Specifications
Separate Sync.: Terminated • Maximum Pixel Clock • 110 MHz Power Supply • AC 100-240 V ± 10%, 60 Hz / 50 Hz ± 3 Hz Power Consumption • 90 W maximum Dimensions/Weight • Unit (Without Speakers): (WxDxH) • Carton (With Speakers): Tilt •... -
Page 19: Index
Access, 8 Brightness, 7, 10 Color temperature, 12 Connecting your monitor & Speakers, 4 Contrast, 7, 10 Degauss, 13 Dimension, 16 Display modes, 15 Display timing, 13 Driver software, 14 Frequency, 15 Front panel, 7 Geometry, 11 Halftone, 12 H- Moiré, 12... -
Page 20: Regulatory Information
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This... - Page 21 Saturno 44 Col. Nva. Industrial Vallejo Del. Gustavo A. Madero C.P. 07700 Mexico D.F. Tel. 5747-5100 RFC: SEM950215S98 IMPORTADO POR:SAMSUNG ELECTRONICS MEXICO S.A. DE C.V. SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO DEL. GUSTAVO A. MADERO C.P. 07700 MEXICO D.F. RFC: SEM950215S98 EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.
