Summary of Contents for Identiv uTrust TS ScramblePad SC

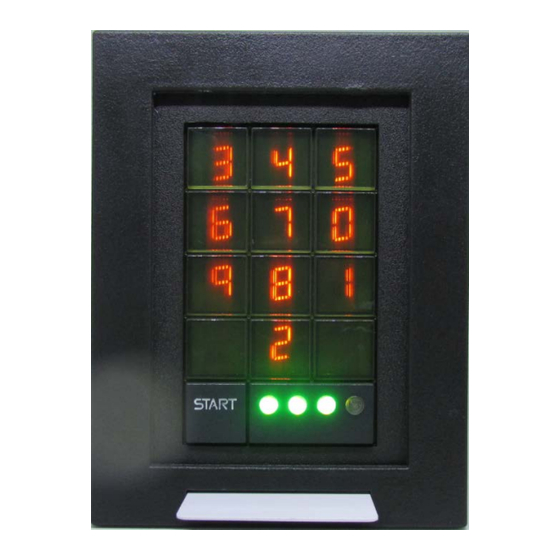

- Page 1 Installation and User Manual for uTrust TS ScramblePad SC Reader Version 1.3 8336 Confidential Author Sixtus Stanly Version Date 24-Apr-2018 Document no 833601...
- Page 2 Document History Version Date Description of Change Author 10-Jan-18 Initial version Sixtus Stanly 31-Jan-18 Updated comments from UL Sixtus Stanly 20-Mar-18 Updated the Current at 55V Sixtus Stanly based on UL comments 24-Apr-18 Updated the UL1076 details Sixtus Stanly based on UL comments...
-
Page 3: Table Of Contents
TS Scramblepad SC Contents Introduction ..........................4 Reader ............................4 Functionality ..........................4 Front/Top Casing with Contact Card ..................4 Rear view with back plate and metal bracket ................5 Product details ........................... 5 Specifications ..........................6 Rated current - PoE operating voltage range ................6 Power up and Testing ........................ -
Page 4: Introduction
TS Scramblepad SC 1.0 Introduction This document details the Physical Access Control Reader uTrust TS ScramblePad SC, Model Number: 8336) and its user instruction and installation procedures. The 8336 reader extends the features already supported by the UL 294 certified 8330 readers, by adding an interface for accessing a Contact Smart Card. -
Page 5: Rear View With Back Plate And Metal Bracket
TS Scramblepad SC Rear view with back plate and metal bracket 3.0 Product details Product Name : uTrust TS ScramblePad SC Model Name : 8336 Device Type : Physical Access control Reader (accessory equipment) that has RFID reader, 13.56MHz (HF) / 125 KHz (LF), Scramble Keypad and Contact Smart Card interface. -
Page 6: Specifications
TS Scramblepad SC 10BaseT ETH – Not evaluated by UL Specifications Wiring methods shall be in accordance with the National Electrical Code (ANSI/NFPA70), local codes, and the authorities having jurisdiction. Model Operating Voltage Current Operating Operating temp humidity 12 VDC... -
Page 7: Product Label
TS Scramblepad SC Reader can be powered from POE. Communication happens through Ethernet also, but not evaluated by UL. This is the default reader behavior in a standalone condition. 6.0 Product Label SHIELD – should be connected to the cable shield. - Page 8 TS Scramblepad SC Page 8 of 9...
-
Page 9: Certifications
—Consult the dealer or an experienced radio/TV technician for help. Information to user Changes or modifications not expressly approved by Identiv could void the user's authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s).
