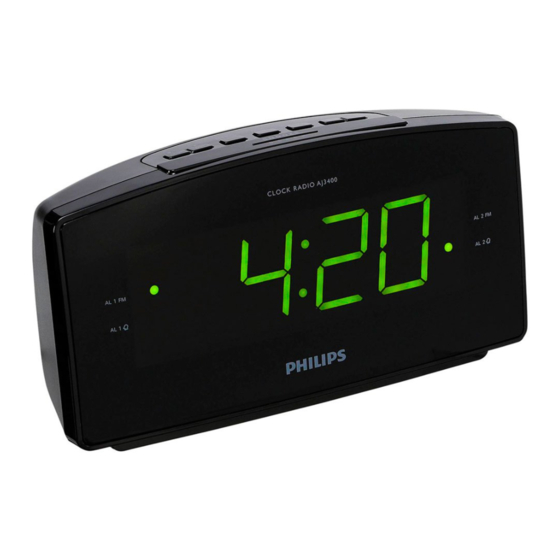

Philips AJ3400 User Manual

Register your product and get support at
www.philips.com/support
AJ3400
User manual
Specification are subject to changes without notice
2014 © WOOX Innovations Limited. All rights reserved.
This product was brought to the market by WOOX
Innovations Limited or one of its affiliates, further referred
to in this document as WOOX Innovations, and is the
manufacturer of the product. WOOX Innovations is the
warrantor in relation to the product with which this booklet
was packaged. Philips and the Philips Shield Emblem are
registered trademarks of Koninklijke Philips N.V.
AJ3400_79_UM__V3.0
1 Important
•
Read these instructions.
•
Heed all warnings.
•
Follow all instructions.
•
Do not block any ventilation openings. Install in accordance with
the manufacturer's instructions.
•
Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
•
Protect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point
where they exit from the clock radio.
•
Only use attachments/accessories specified by the manufacturer.
•
Unplug this clock radio during lightning storms or when unused
for long periods of time.
•
Refer all servicing to qualified service personnel. Servicing is
required when the clock radio has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the clock radio, the clock radio
has been exposed to rain or moisture, does not operate normally,
or has been dropped.
•
Battery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the clock radio:
•
Install the battery correctly, + and - as marked on the clock radio.
•
Remove the battery when the clock radio is not used for a long time.
•
The battery shall not be exposed to excessive heat such as
sunshine, fire or the like.
•
This clock radio shall not be exposed to dripping or splashing.
•
Do not place any sources of danger on the clock radio (e.g. liquid
filled objects, lighted candles).
•
Where the plug of the Direct Plug-in Adapter is used as the disconnect
device, the disconnect device shall remain readily operable.
2 Your clock radio
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
What's in the box
User manual
3 Get started
Always follow the instructions in this chapter in sequence.
Install battery
If there is power interruption, the clock memory backup allows your
alarm and clock settings to be stored for up to a day. The display
backlight will be off.
Caution
•
Risk of explosion! Keep the battery away from heat, sunshine
or fire. Never discard battery in fire.
•
The battery contains chemical substances, so it should be
disposed of properly.
Insert 2 x 1.5V AAA battery (not supplied) with correct polarity
(+/-) as illustrated.
Connect power
Caution
•
Risk of product damage! Make sure that the power voltage
corresponds to the voltage printed on the back or underside
of the clock radio.
•
Risk of electric shock! When you unplug the power adapter,
always pull the plug from the socket. Never pull the cord.
Note
•
The type plate is located at the bottom of the clock radio.
Set time
Note
•
You can only set time in standby mode.
1 2
PRESET/
HOUR
SET TIME
2 sec
3
4
PRESET/
MIN
SET TIME
4 Listen to FM radio
Note
•
Keep the clock radio away from other electronic devices to
avoid radio interference.
•
For better reception, fully extend and adjust the position of the
FM antenna.
Tune to FM radio stations
1 2
RADIO TUNING
2 sec
ON/OFF
MIN
4
3
- VOLUME +
TUNING
2 sec
HOUR
Store FM radio stations manually
You can store up to 10 FM radio stations.
1 Tune to an FM radio station.
2 Press and hold PRESET for two seconds.
» The preset number begins to blink.
3 Press TUNING repeatedly to select a number.
4 Press PRESET again to confirm.
5 Repeat steps 1 to 4 to store other stations.
Tip
•
To remove a pre-stored station, store another station in its place.
Select a preset radio station
In tuner mode, press PRESET repeatedly to select a preset number.
Adjust volume
While listening, press - VOLUME + to adjust volume.
» The volume level (1~15) shows in the display.
5 Other features
Set alarm timer
Set alarm
Note
•
You can only set the alarm in standby mode.
•
When alarm sounds, volume rises gradually. You cannot adjust
the alarm volume manually.
•
Make sure that you have set the clock correctly.
Follow the illustration to set the first alarm.
•
AL1: set the first alarm.
•
AL2: set the second alarm.
1 2
2 sec HOUR
AL1
3 4
MIN AL1
Tip
•
The clock radio exits alarm setting mode when being idle for 10 seconds.
Select alarm source
You can select FM radio or buzzer as the alarm source.
» The corresponding alarm icon lights up.
