A Division of Cisco Systems, Inc.
Package Contents
• Wireless-B USB Network Adapter
• USB Cable
• Wall Mount
• Setup CD-ROM with User Guide
• Quick Installation
• Registration Card
2.4
GHz

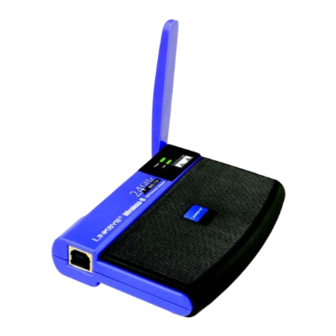

Wireless-B
802.11b
USB Network Adapter
Wireless
Quick Installation for Windows XP
Model No.
WUSB11
Model No.
Connect the Wireless-B USB
1
Network Adapter
A
Power on your PC.
B
The Adapter comes with the
USB cable you will use to
connect the Adapter to your
PC.
Connect one end of then
included USB cable to the USB
port of the Adapter.
C
Connect the other end of the
B
USB cable to one of the USB
ports on your computer.
The Power LED should light up
when the Adapter is plugged
in.
D
Raise the antenna. Make sure
the antenna is positioned
straight up into the air, at a 90°
angle from the Adapter. This
will ensure optimum wireless
operating range and
performance.
D
2
Install the Driver
After connecting the Adapter to your
computer, you will install the driver
and configure the Adapter.
A
Windows XP will automatically
detect the Adapter. Insert the
Setup CD-ROM into your
computer's CD-ROM drive.
Click the radio button next to
Install the software
automatically
(Recommended). Then click
A
Next.
B
The Hardware Installation
screen may appear and
indicate that the Adapter has
not passed Windows Logo
testing. This Adapter has been
tested and found to work with
Windows XP . Click Continue
B
Anyway to proceed with the
installation.
C
When Windows has finished
installing the driver, click Finish.
C
