Radial Engineering Texas Pro User Manual

FEATURES
4 3 2
11
10

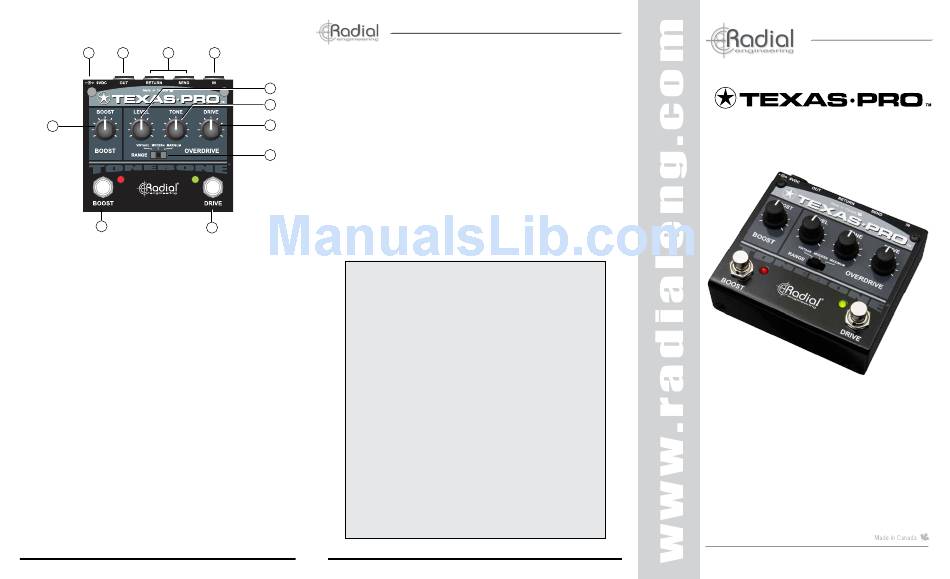

1. INPUT: High-Z ¼" connection from your instrument.
2. EFX LOOP: Send and return ¼" jacks used to connect effect
pedals.
3. OUTPUT: ¼" connection to your amplifier.
4. 9VDC POWER: Connection for 9 volt (center pin negative)
power adapter. Includes a cable clamp to prevent accidental
power disconnection.
5. LEVEL: Used to set the output volume level for the overdrive.
6. TONE: Brightens or darkens the Overdrive circuit to suit your
guitar and amp setup.
7. DRIVE: Used to adjust the overall amount of distortion
introduced in the Overdrive circuit.
8. RANGE: 3-position switch used to tailor the output of the
Overdrive to suit your guitar and amp setup.
9. DRIVE FOOTSWITCH: Used to activate the Overdrive circuit.
10. BOOST FOOTSWITCH: Activates the power booster and the
effects loop.
11. BOOST GAIN: Variable Class-A power booster – 100% discrete
with up to +22dB of clean gain.
Radial Engineering Ltd.
®
1
Radial Texas-Pro Specifications
5
Circuit Type: .......................................................................... Class-A discrete
6
Frequency Response: .......................Adjustable via tone and range controls
7
Gain – Boost: ...................................................... Variable from 0dB to +22dB
Gain – Overdrive: ............................................. Variable from +2dB to +30dB
8
Footswitch - Drive: ...................................Latching switch engages overdrive
Footswitch - Boost: ..............Latching switch engages boost and effects loop
Effects Loop: ....Send & return jacks for additional pedals before boost stage
Power: .................................................................9VDC, adapter not included
9
