Summary of Contents for GE Aquant

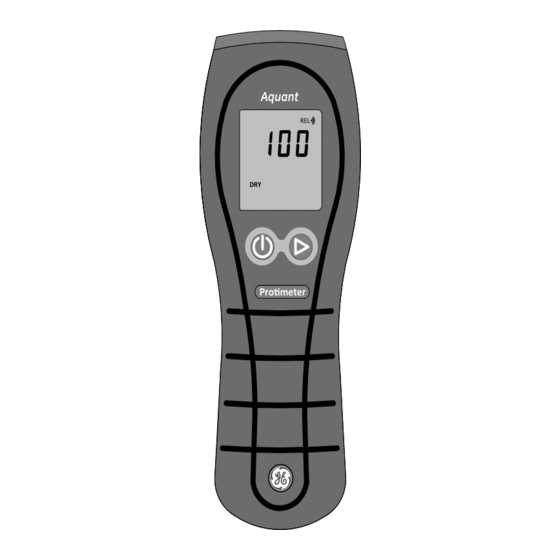

- Page 1 Measurement & Control ® Aquant Protimeter Non-Invasive Moisture Meter Aquant Instruction Manual INS5765 Rev. A June 2013...
-
Page 3: Safety Considerations
Conductive material such as salts, carbon and metal can give false positive readings. 2 Search Mode (REL) The Aquant non-invasive mode gives readings, in relative terms, of the moisture condition up to 3/4” beneath the surface of materials. This mode of... - Page 4 It is recommended that users place the meter onto different areas to measure and do not slide the meter across surfaces. Note: Sliding the meter can cause premature wear to the back of the meter. Page 2 Protimeter Aquant...
-
Page 5: Reference Mode
Reference mode can be useful when trying to establish what materials are above or below a point of reference or dry standard. See page 6 for further information. Protimeter Aquant Page 3... - Page 6 4 Operating Aquant Switch On: Press the ON/OFF button. The unit turns on, with the LCD displaying all the segments and sweeping the LED bar graph. Page 4 Protimeter Aquant...
- Page 7 2 seconds to enter the Reference Mode. The display will be similar to the one shown below. To return to the normal measurement mode, press again. Protimeter Aquant Page 5...
- Page 8 Settings: Press and hold the button and switch on the unit by pressing Hold both the buttons until the Aquant displays the version. Release both buttons while it shows the version number. The unit enters Settings Mode. Page 6 Protimeter Aquant...
- Page 9 This screen sets whether the indication on the display needs to be switched ON or OFF. When it is ON, the moisture condition will be displayed on the screen. When it is OFF, no indication is displayed on screen. Protimeter Aquant Page 7...
- Page 10 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Page 8 Protimeter Aquant...
- Page 11 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Protimeter Aquant Page 9...
- Page 12 If the unit detects no key press for 2 seconds in the Setting screen, it moves to the next setting. Pressing the button, after you have entered the desired setting, will save the setting and move the screen to the next setting. Page 10 Protimeter Aquant...
- Page 13 1- 6 minutes. If the auto off time is set to be "0", then the unit will not automatically turn off. A user must manually turn it off by pressing and holding the button for 5 sec. Protimeter Aquant Page 11...
- Page 14 (bottom right). This indicates that the battery is low and should be replaced soon. The unit will continue to perform in battery condition within the specified accuracy, and turns off when the battery reaches the limit. Page 12 Protimeter Aquant...
-
Page 15: Battery Replacement
5 Battery Replacement A 550mAh battery will last continuously for more than 20 hours for a Aquant in operation. A Battery Low indication on the screen indicates that the battery needs to be changed in a short time. Remove the screw assembled to fix the battery lid on the back side of the unit. -
Page 16: Technical Specifications
Battery low indication on LCD Size: 19cm x 6.5cm x 5cm (7.5" x 2.5" x 2") Gross Weight (without battery): ~240g Buzzer Audible buzzer for Key tone and measurement indication, user configurable Regulatory Compliance CE, RoHS, ETL Page 14 Protimeter Aquant... - Page 18 1100 Technology Park Drive Billerica, MA 01821-4111 Tel: 1-800-833-9438 Web: http://www.ge-mcs.com/en/ moisture-and-humidity/moisture- meters.html Ireland Sensing House Shannon Free Zone East Shannon, Co. Clare Tel: +353 61 470200...
