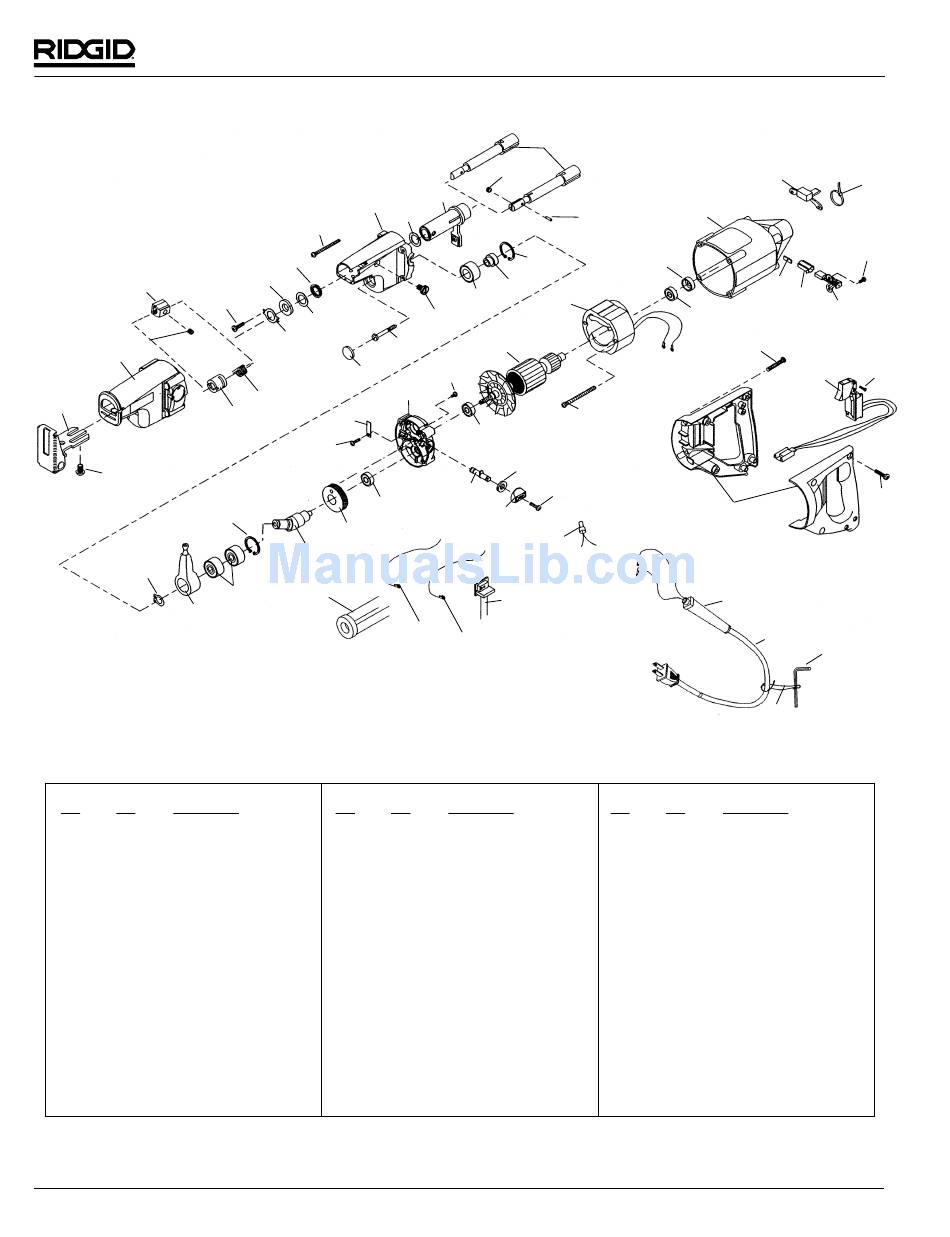

RIDGID 5228/530 Parts List

Variable Speed Dual Action Reciprocating Saw
4
5
3
1
2
20
26
27
NOTE: Order parts by Catalog Number only.
DO NOT order by Reference Number.
Ref. Catalog
No. No. Description
1 18867 Shoe & Bracket Assembly
2 18872 Screw
3 63422 Insulator Boot
4 63427 Blade Clamp Sleeve
5 63432 Blade Screw
6 71892 Clamp Sleeve (Type 2)
7 71912 Spring (Type 2)
8 63437 Screw
9 63442 Plate
10 63447 Felt Seal
11 63452 Flat Washer
12 63457 Oil Seal
13 63462 Screw
14 63467 Front Housing
15 63472 Felt Seal
16 63477 Carrier Tube Assembly
17 71907 Clamp Pin (Type 2)
18 63482 Recip. Shaft
71897 Recip. Shaft (Type 2)
19 71902 Roll Pin (Type 2)
20 45527 Retaining Ring
21 63487 Spacer
22 63492 Bearing
164
14
13
12
10
8
11
9
25
7
6
32
31
30
29
28
22
62
Ref. Ref.
No. No.
23 63497
24 63502
25 63507
26 63512
27 63517
28 63522
29 63527
30 63532
31 63537
32 63542
33 63547
34 63552
35 63557
36 63562
37 63567
38 63572
39 18467
40 63577
64907
41 63682
42 63582
64912
43 50022
Ridge Tool Company/Elyria, Ohio, U.S.A.
18
17
16
15
20
21
22
42
23
24
40
31
33
39
38
34
37
35
36
63
61
60
Catalog
Description
Screw
Screw
Plug
Retaining Ring
Wobble Plate
Drive Shaft
Gear
Bearing
Screw
Spring
Int. Plate
Selector Shaft
Knob
Connector
Screw
Felt Seal
Bearing
Armature (115V)
Armature (230V)
Screw
Field (115V)
Field (230V)
Bearing Mount
5228/530
19 44
43
30
51
41
55
56
Ref. Ref. Catalog
No. No. Description
44 63587 Motor Housing
45 63592 Mounting Bracket
46 63597 Wire Tie
47 63602 Screw
48 50017 Brush & Spring
49 18437 Brush Holder
50 18442 Brush Insulator
51 63607 Screw
52 63612 Switch Assembly (115V)
64917 Switch Assembly (230V)
53 63617 Screw
54 63622 Screw
55 63627 Handle Set
56 63632 Strain Relief
57 63637 Power Cord (115V)
64922 Power Cord (230V)
58 63642 Hex Wrench
59 63647 Wrench Holder
60 64927 Black Lead Assembly (230V)
61 64932 White Lead Assembly (230V)
62 64937 Coil (230V)
63 64942 Circuit Board (230V)
45
46
47
50
49
48
53
52
54
57
58
59
