Panasonic A-T-27-V User Manual

A-T-27-V
UD.6L0201D1829A02
Thank you for purchasing our product. If there
are any questions, or requests, please do not
hesitate to contact the dealer.
This manual may contain several technical
incorrect places or printing errors, and the content
is subject to change without notice. The updates
will be added to the new version of this manual.
We will readily improve or update the products or
procedures described in the manual.
Privacy Notice
Surveillance laws vary by jurisdiction. Check all
relevant laws in your jurisdiction before using
this product for surveillance purposes to ensure
that your use of this product conforms.
Please refer to the product specification for
camera parameters and functions.
0100001050305
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested
and found to comply with the limits for a digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instruction manual, may cause harmful interference
to radio communications. Operation of this
equipment in a residential area is likely to cause
harmful interference in which case the user will be
required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
EU Conformity Statement
This product and - if applicable - the
supplied accessories too are marked
with "CE" and comply therefore with
the applicable harmonized European
standards listed under the Low Voltage Directive
2006/95/EC, the EMC Directive 2004/108/EC, the
RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive):
Products marked with this symbol
cannot be disposed of as unsorted
municipal waste in the European Union.
For proper recycling, return this product
to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at designated collection points.
www.recyclethis.info.
For more information see:
2006/66/EC (battery
directive): This product contains a
battery that cannot be disposed of as
unsorted municipal waste in the
European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium
(Cd), lead (Pb), or mercury (Hg).
For proper recycling, return the battery to your
supplier or to a designated collection point. For
more information see: www.recyclethis.info.
1 Introduction

1.1 Product Features

This camera adopts new generation sensor with high
sensitivity and advanced circuit board design
technology. It possesses the features of high
resolution, low distortion, and low noise, etc. It is
extremely suitable for supervisory system and image
processing system.
The main features are as follows:
High performance CMOS sensor and high
resolution bring high-quality image;
Low illumination;
Support IR cut filter with auto switch; OSD
menu, parameters are configurable;
Support auto white balance, auto gain control,
electronic shutter control and internal
synchronization;
SMART IR mode;
Unit transmission control;
Advanced 3-axis design meets different
installation requirements.
1.2 Overview
1.2.1 Overview of Type I Camera
AC24V Power Cable
HD Video Cable
Black Liner Lens
Menu Joystick
DIP Switch
Auxiliary Video Output
Base Plate
Bubble

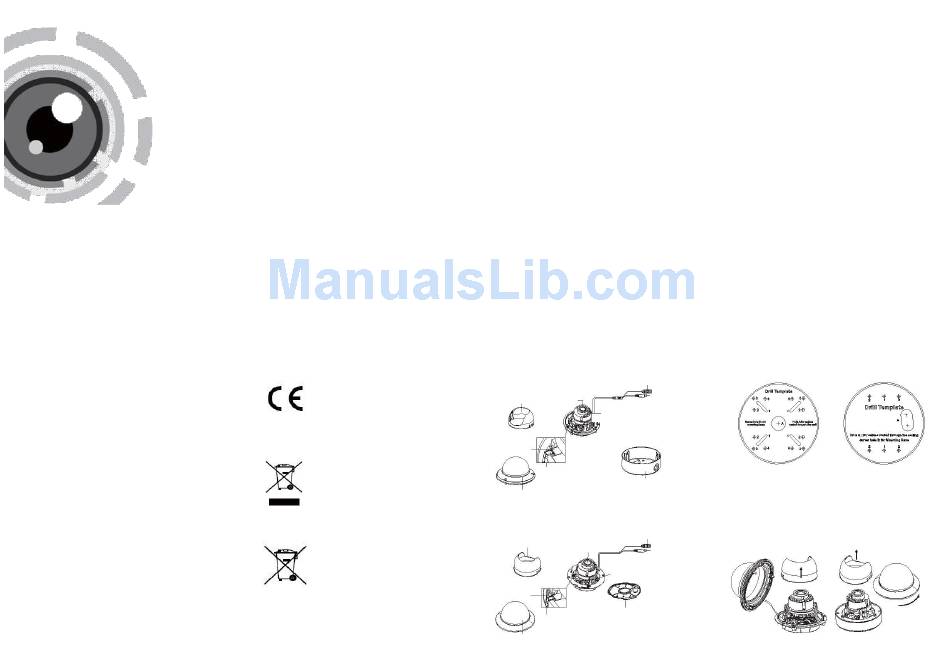

Figure 1-1 Overview of Type I Camera
II
1.2.2 Overview of Type Camera
AC24V Power Cable
Black Liner
Lens
HD Video Cable
Menu Joystick
DIP Switch
Base Plate
Auxiliary Video Output
Bubble
Figure 1-2 Overview of Type II Camera
2 Installation
Before you start:
Please make sure that the device in the package is
in good condition and all the assembly parts are
included.
Make sure that all the related equipment is
power-off during the installation.
Check the specification of the products for the
installation environment.
Check whether the power supply is matched
with your power output to avoid damage.
Please make sure the wall is strong enough to
withstand three times the weight of the camera
and the mounting.
If the wall is the cement wall, you need to insert
expansion screws before you install the camera. If
the wall is the wooden wall, you can use self-
tapping screw to secure the camera.
If the product does not function properly, please
contact your dealer or the nearest service center.
Do not disassemble the camera for repair or
maintenance by yourself.

2.1 Ceiling Mounting

Steps:
1.Drill the screw holes and the cable hole on the
ceiling according to the supplied drill template.
Type I: Type II:
Figure 2-1 The Drill Template
.
2 Loosen the screws on the bubble of type 1
camera /rotate the bubble of type2 camera to
remove the bubble and the black liner.
Type I: Type II:
Figure 2-2 Remove the Bubble
