Summary of Contents for Omega Power Equipment AeroFit MLM-300

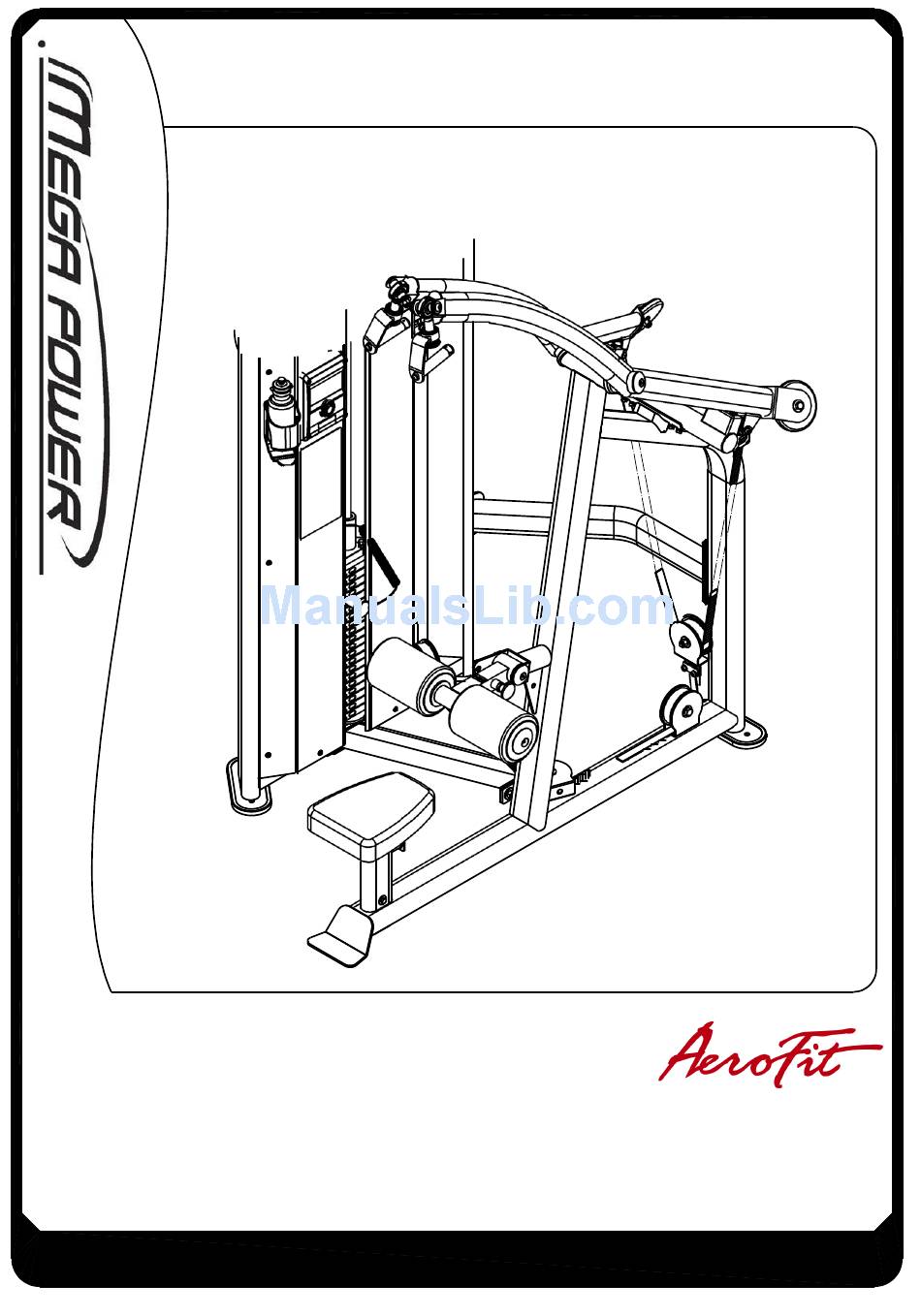

- Page 1 Официальный представитель: ООО «СпортРус» 117105, Российская Федерация, г.Москва, Варшавское шоссе, д.33 Телефон: (495) 276 27 26, 221 26 29 www.aerofit.ru MLM-300 OWNER'S MANUAL...
- Page 2 MLM-300 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (A1)HEX BOLT 1/2"x1-1/4"L PARTIAL THREAD QTY.2 (A2)HEX BOLT 1/2"x2"L PARTIAL THREAD QTY.2 (A3)HEX BOLT 1/2"x2-1/4"L PARTIAL THREAD QTY.1 (A4)HEX BOLT 1/2"x2-3/4"L PARTIAL THREAD QTY.3 (A5)ROUND ALLEN HEAD 1/2"x3-1/2"L PARTIAL THREAD QTY.2 (A6)HEX BOLT 5/16"x1-1/4"L PARTIAL THREAD QTY.4 inch 1"...
- Page 3 MLM-300 ASSEMBLY INSTRUCTIONS DOOR FRAME HARDWARE ILLUSTRATION (A7)HEX BOLT 1/2"x2-3/4"L PARTIAL THREAD QTY.3 (A8)ROUND ALLEN HEAD 3/8"x2"L PARTIAL THREAD QTY.1 (A9)ROUND ALLEN HEAD M6X16L PARTIAL THREAD QTY.16 (A10)ROUND ALLEN HEAD M10X40L PARTIAL THREAD QTY.1 (A11)ELASTIC BELT (F920003) QTY.1 inch 1" 2"...
- Page 4 MLM-300 ASSEMBLY INSTRUCTIONS DOOR FRAME HARDWARE ILLUSTRATION (A12)10LB PIN (8250-128) QTY.1 inch 1" 2" 3" 4" 5" 6" MLM300-022010 Page...
- Page 5 MLM-300 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION (B1)NYLON LOCK NUT 1/2" QTY.9 (C1)1/2"(I.D.)FLAT WASHER Ø25 QTY.2 (C2)1/2"(I.D.)FLAT WASHER Ø34 QTY.15 (C3)5/16" SPRING WASHER QTY.4 (C4)5/16"(I.D.)FLAT WASHER Ø24 QTY.4 inch 1" 2" 3" 4" 5" 6" MLM300-022010 Page...
- Page 6 MLM-300 ASSEMBLY INSTRUCTIONS DOOR FRAME HARDWARE ILLUSTRATION (C8)M6(I.D.)FLAT WASHER Ø19 QTY.16 (B2)NYLON LOCK NUT 1/2" QTY.3 (C9)M10(I.D.)FLAT WASHER Ø19 QTY.2 (B3)NYLON LOCK NUT M10 QTY.1 (C5)1/2"(I.D.)FLAT WASHER Ø25 QTY.2 (C6)1/2"(I.D.)FLAT WASHER Ø34 QTY.4 (C7)3/8" SPRING WASHER QTY.1 inch 1" 2" 3"...
- Page 7 MLM-300 ASSEMBLY INSTRUCTIONS HARDWARE ILLUSTRATION D1.Ø60 CAP COVER(8130-231)------------------------------------[4PCS] D2.Ø76 CAP COVER(8130-236)------------------------------------[2PCS] D3. n 1" CU WASHER (8520-008)-----------------------------------[2PCS] D4.Ø25X19L NYLON BUSHING(9211-151)----------------------[4PCS] D5.Ø25XØ13.5X30L NYLON BUSHING(9211-155)------------[4PCS] D6.50X100X56 RUBBER PAD(9214-038)-------------------------[2PCS] D7.Ø120 NYLON WASHER(9214-039)----------------------------[4PCS] D8.108X263 RUBBER PAD(9310-075)----------------------------[1PCS] D9. n 115 PULLEY(9213-042B)---------------------------------------[4PCS] D10.3040mm BELT(FMLM300A)------------------------------------[1PCS] D11.2200mm BELT(FMLM300B)------------------------------------[1PCS] D12.EXERCISE CHART (9420-052)--------------------------------[1PCS] magnet MLM300-022010...
- Page 8 MLM-300 ASSEMBLY INSTRUCTIONS DOOR FRAME HARDWARE ILLUSTRATION D13.3/4" SHAFT COLLAR(9211-147)-----------------------------------[2PCS] D14.Ø4" RUBBER PAD(9310-017)--------------------------------------[2PCS] D15.108X263 RUBBER PAD(9310-075)-------------------------------[2PCS] D16. n 115 PULLEY(9213-042A)------------------------------------------[1PCS] D17. n 115 PULLEY(9213-042B)------------------------------------------[2PCS] D18.2400mm BELT(FMDAEA)--------------------------------------------[1PCS] D19.BOTTLE BRACKET(8388-025)-------------------------------------[1PCS] D20.BOTTLE RACK(9260086-019)--------------------------------------[1PCS] D21.BOTTLE(9260-123)----------------------------------------------------[1PCS] magnet no magnet MLM300-022010 Page...
- Page 9 MLM-300 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET A[1PCS] B[1PCS] C[1PCS] D[1PCS] E[1PCS] F[1PCS] MLM300-022010 Page...
- Page 10 MLM-300 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET I[2PCS] G[1PCS] J[1PCS] 6640-009 8220-186 Ø25X91L Ø25 M[2PCS] K[4PCS] L[1PCS] 8230-018 8311-117 8313-144 Ø140X20TXØ13.5 60X25X6T 95X6TX250 O[2PCS] N[2PCS] 8210-155 6640-010 Ø5/8"x49L Ø15.9 P[2PCS] 6640-012 6680-011 6680012-26 6680-012 MLM300-022010 Page...
- Page 11 MLM-300 ASSEMBLY INSTRUCTIONS PARTS ILLUSTRATION SHEET R[2PCS] Q[1PCS] 9161-064 9121-070 MLM300-022010 Page...
- Page 12 MLM-300 ASSEMBLY INSTRUCTIONS DOOR FRAME HARDWARE ILLUSTRATION D22.TOP PLATE(8400-019)---------------------------------------------[1PCS] D23.Selector Rod(8210-042C)------------------------------------------[1PCS] MLM300-022010 Page...
- Page 13 MLM-300 ASSEMBLY INSTRUCTIONS DOOR FRAME PARTS ILLUSTRATION SHEET AA[1PCS] AB[1PCS] 6610-011 AC[1PCS] AD[1PCS] 9220-015 9220-016 AF[1PCS] AE[1PCS] 9211-148 9220-023 MLM300-022010 Page...
- Page 14 MLM-300 ASSEMBLY INSTRUCTIONS DOOR FRAME PARTS ILLUSTRATION SHEET AG[1PCS] AH[4PCS] AI[1PCS] 6640-015 8331-057 8313-169 133.5 AJ[3PCS] AK[2PCS] AL[2PCS] 8331-058 8313-144 5313-T002 Ø3/4"X1437L 98.8 AM[1PCS] AN[2PCS] AO[1PCS] 8331-056 8311-119 8311-120 53.5 AP[2PCS] 8311-117 MLM300-022010 Page...
- Page 15 MLM-300 ASSEMBLY INSTRUCTIONS Above shows STEP 1 assembled and completed 6640-011 CU WASHER(8520-008) CU WASHER(8520-008) Ø60 CAP COVER(8130-231) M10X25L CONE SCREW M10X25L CONE SCREW X2 M10X25L CONE SCREW X2 MLM300-022010 Page...
- Page 16 MLM-300 ASSEMBLY INSTRUCTIONS Above shows STEP 2 assembled and completed 1/2"X1-1/4" HEX BOLT X2 1/2" WASHER Ø25X2 1/2"x1-1/4"L HEX BOLT X2 1/2" WASHER Ø34 X2 1/2" WASHER Ø25 X2 1/2"X1"L HEX BOLT X2 MLM300-022010 Page...
- Page 17 MLM-300 ASSEMBLY INSTRUCTIONS Above shows STEP 3 assembled and completed 3/8"X2"L ROUND ALLEN HEAD X4 B1x2 C2x2 C2x2 D1x2 M10X25L CONE SCREW X2 3/8"ARC WASHER X4 3/8"SPRING WASHER X4 3/8"X1"L HEX BOLT X4 MLM300-062010 Page...
- Page 18 MLM-300 ASSEMBLY INSTRUCTIONS FOR ASSEMBLY SEE P12.1 The tread side should be outward Figure 1 NOTE: 1. THE BELT SMOOTH SIDE SHOULD ATTACH ON PULLEY SURFACE, AND THE BELT SMOOTH SIDE WRAP AROUND THE BELT RETAINER SHAFT (N) 2. PLEASE BE SURE THE PRESSURE BETWEEN THE BELT CLAMPS (K) DO Above shows STEP 4 NOT EXCEED 70 PSI...
- Page 19 MLM-300 ASSEMBLY INSTRUCTIONS M10 WASHER X4 M10X16L ROUND BOLT X4 M10X25L ROUND BOLT X4 M10 SPRING WASHER X4 The belt should reserve 40mm extra length Assemble Direction M10 SPRING WASHER X2 The tread side should be outward M10X25L ROUND BOLT X2 Figure 2 Figure 3 NOTE:...
- Page 20 MLM-300 ASSEMBLY INSTRUCTIONS B1 C2 The tread side should be outward NOTE: 1. THE BELT SMOOTH SIDE SHOULD ATTACH ON PULLEY SURFACE, AND THE BELT SMOOTH SIDE WRAP AROUND THE BELT RETAINER SHAFT (N) 2. PLEASE BE SURE THE PRESSURE BETWEEN THE BELT CLAMPS (K) DO NOT EXCEED 70 PSI M10 SPRING WASHER X2...
- Page 21 MLM-300 ASSEMBLY INSTRUCTIONS C2x2 C2x2 B1x2 Above shows STEP 7 assembled and completed M10X25L CONE SCREW X2 D7x2 D2x2 C4x4 C3x4 A6x4 M10X25L CONE SCREW X2 MLM300-022010 Page...
- Page 22 MLM-300 ASSEMBLY INSTRUCTIONS C8x2 C8x2 C8x2 C8x2 C8x2 Above shows STEP 8 assembled and completed MLM300-022010 Page...
- Page 23 MLM-300 ASSEMBLY INSTRUCTIONS M10X25L ROUND BOLT X2 M10 SPRING WASHER X2 M5X12L ROUND BOLT X4 M5 WASHER Ø14 X4 *Attention* Do not touch the sensor bracket (AG) during weight stack installation Push guide rods (AL) to tilt one side and then install weight stacks. Once finishing the weight stack installation, pull guide rods (AL) back and continue setup D22 →D13 Above shows STEP 9...
- Page 24 MLM-300 ASSEMBLY INSTRUCTIONS FOR ASSEMBLY SEE P17.1 M10X25L ROUND BOLT X2 M10 PSRING WASHER X2 The tread side should be outward Assemble Direction NOTE: 1. THE BELT SMOOTH SIDE SHOULD ATTACH ON PULLEY SURFACE, AND THE BELT SMOOTH SIDE WRAP AROUND THE BELT RETAINER SHAFT (N) 2.
- Page 25 MLM-300 ASSEMBLY INSTRUCTIONS The tread side should be outward Figure 6 Above shows STEP 11 assembled and completed MLM300-022010 17.1 Page...
- Page 26 MLM-300 ASSEMBLY INSTRUCTIONS M4X12L ROUND ALLEN CROSS BOLT X2 LINK D19 LINK AB 9542-145-Line LINK AB 9545-034-Line M4X12L ROUND ALLEN CROSS BOLT X4 M6X12L ROUND BOLT X5 M6 WASHER Ø14X5 M6 WASHER Ø14X4 M6X12L ROUND BOLT X4 9542-145-line link AG 9542-148-line link 9545-034 Above shows STEP 12 Figure 7...
- Page 27 MLM-300 ASSEMBLY INSTRUCTIONS Material detail drawing of line 9542-145-LINE JST-XHP-9 JST-XHP-9 1700 BLACK BLACK PLAM PLAM ORANGE ORANGE YELLOW YELLOW GREEN GREEN BLUE BLUE PURPLE PURPLE GREY GREY 9542-148-LINE JST-XHP-3 JST-SMP-03V-BC A:HOLE COLOR B:HOLE COLOR BLACK BLACK PALM PLAM MLM300-022010 18.1 Page...
- Page 28 MLM-300 ASSEMBLY INSTRUCTIONS Material detail drawing of line 9545-034-LINE JST-SMR-03V-B MLM300-022010 18.2 Page...
- Page 29 MLM-300 ASSEMBLY INSTRUCTIONS M10X12L ROUND BOLT X4 EXTRUDING EXTRUDING Figure 8 Note: When installing the shroud (AE), push both sides of the shroud toward center in order to bend it a little. After insert it to the door frame and then releasing it. The shroud will be locked on the door frame.
