XG GC-700 Owner's Manual

OWNER'S MANUAL —
Before installing and using the product, please read the instructions thoroughly and retain them for future reference.
SWITCHES
CHANGES LED
DPI COLOURS
WEIGHT
TUNING SET
(Adjust the weight
of your mouse to
match your game)
WHAT'S IN THE BOX:
• Gaming Keyboard
• Gaming Mouse
• Owner's Manual
• Eight-piece weight-tuning set for mouse
SYSTEM REQUIREMENTS:
• PC with USB port
• Windows XP/Vista/7/8
MOUSE FEATURES:
• Up to 1750DPI (2800 interpolated). Select from 500/1000/1750/2800
• Seven LED backlight colour options
• High-performance Avago 5050 optical sensor
• Eight-piece weight-tuning set (2.4g x 8) allows you to adjust the weight
of the mouse
• 500/1000 Hz two-level polling rate
• Supports Windows XP/Vista/7/8

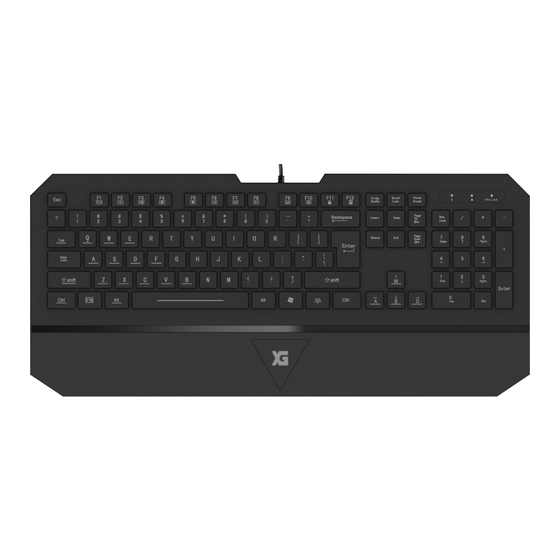

KEYBOARD FEATURES:
• 19 anti-ghosting keys
• Seven LED backlight colour options
• Ergonomic design, wide palm rest
• Low-profile keys
INSTALLATION
1. Plug keyboard and mouse into individual USB ports of your computer
2. Plug and play — no driver software required
DPI SETTING (MOUSE)
• 500DPI: Press the DPI button. The LED will flash once
• 1000DPI: Press the DPI button. The LED will flash twice
• 1750DPI: Press the DPI button. The LED will flash three times
• 2800 (Interpolated) DPI: Press the DPI button. The LED will flash four
times
GC-700 GAMING KEYBOARD AND MOUSE
BACKLIGHT SETTING (KEYBOARD)
• Press the BACKLIGHT button. The backlight colour will display as Blue
--> Green --> Red --> Dark Green --> Yellow--> Pink --> White
• Breathing light will show the seven colours automatically. To turn the
breathing light OFF, press the BACKLIGHT button and scroll through
the seven colours. The OFF switch is the final switch. To turn the
breathing light back ON, switch the BACKLIGHT button
• The factory default setting is blue
POLLING RATE SETTING (KEYBOARD)
• There are two polling rate levels: 500-1000 Hz. The factory setting is
500Hz
• 500Hz polling rate: Press the LEFT button + SCROLL button + RIGHT
button and hold for five seconds. The backlight will slowly flash yellow
• 1000Hz polling rate: Press the LEFT button + SCROLL button + RIGHT
button and hold for five seconds. The backlight will rapidly flash yellow
ADVANCED KEYBOARD FUNCTIONS
• Keyboard interface: USB port
• To lock Windows using the FN key: Press FN + Windows key.
Windows OS will be locked
• Press FN + W to allow the W, A, S and D keys to be used as arrow
keys. Press FN + W again to return to the factory setting
• Press FN + PAGE UP and FN + PAGE DOWN to adjust the brightness
(four brightness levels: high, middle, low, off)
• Select from your choice of seven LED backlights by pressing the
LIGHTBULB ICON key
• This keyboard supports 19 simultaneous key presses. [Q][A][Z]
[W][S][X][E][D][C][Ctrl-L or F][Alt-L or V][B][Shift-L][Space][Tab][UP
ARROW(HAUT)][DOWN ARROW(BAS)][LEFT ARROW(GAUCHE)]
[RIGHT ARROW(DROIT)]
• Press FN + Q to switch the polling rate
• Turn ON the pulsing light mode by pressing FN + LIGHTBULB ICON,
speed up the light pulsing rate by pressing FN + [=], slow down the
pulsing rate by pressing FN + [-]
