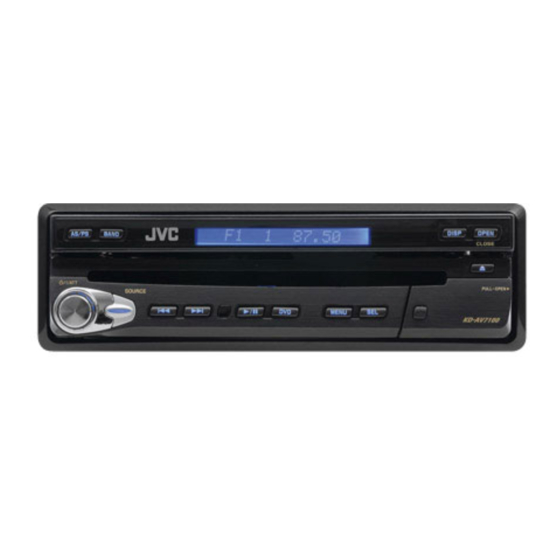

JVC KD-AV7100 Installation & Connection Manual

KD-AV7100
Installation/Connection Manual
LVT1824-006D
[A]
This unit is designed to operate on 12 V DC, NEGATIVE
ground electrical systems. If your vehicle does not have
this system, a voltage inverter is required, which can be
purchased at JVC car audio dealers.
WARNINGS
• DO NOT install any unit or wire any cable in a location
where;
– it may obstruct the steering wheel and gearshift lever
operations, as this may result in a traffic accident.
– it may obstruct the operation of safety devices such as air
bags, as this may result in a fatal accident.
– it may obstruct visibility.
• DO NOT operate any unit while manipulating the
steering wheel, as this may result in a traffic accident.
• The driver must not watch the monitor while driving. It
may lead to carelessness and cause an accident.
• If you need to operate the unit while driving, be sure to
look around carefully or you may be involved in a traffic
accident.
• If the parking brake is not engaged, the following warning
appears on the monitor, and no playback picture will be
shown.
CAUTION!!!
IT'S UNLAWFUL TO OPERATE A VEHICLE WHILE
VIDEO IS DISPLAYED IN THE DRIVERS VIEWING
AREA
ENGAGE EMERGENCY BRAKE TO ENJOY VIDEO
– This warning appears only when the parking brake lead
is connected to the parking brake system built in the car.
Notes on electrical connections:
Replace the fuse with one of the specified rating. If the
•
fuse blows frequently, consult your JVC car audio dealer.
It is recommended to connect speakers with a maximum
•
power of more than 50 W (both at the rear and at the
front, with an impedance of 4 Ω to 8 Ω).
To prevent short circuits, cover the terminals of the
•
UNUSED leads with insulating tape.
• The heat sink becomes very hot after use. Be careful not to
touch it when removing this unit.
Heat sink
TROUBLESHOOTING
• The fuse blows.
* Are the red and black leads connected correctly?
• Power cannot be turned on.
* Is the yellow lead connected?
• No sound from the speakers.
* Is the speaker output lead short-circuited?
• Sound is distorted.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded in
common?
• Unit becomes hot.
* Is the speaker output lead grounded?
* Are the "–" terminals of L and R speakers grounded in
common?
• This unit does not work at all.
* Have you reset your unit?
Parts list for installation and connection
The following parts are provided for this unit. If anything is missing, contact your dealer immediately.
a
Main unit
d
Power cord
g h
Round head screw Round head screw
(M5 x 5 mm) (M4 x 2.5 mm)
l m
Handles Stay
INSTALLATION (IN-DASH MOUNTING)
The following illustration shows a typical installation. However, you should make adjustments corresponding to your
specific car. If you have any questions or require information regarding installation kits, consult your JVC car audio dealer
or a company supplying kits.
• If you are not sure how to install this unit correctly, have it installed by a qualified technician.
Do the required electrical
connections.
c
Removing the unit
Before removing the unit, release the rear section.
c
1
b
Sleeve
e
Parking brake lead
i j
Tapping screw Mounting bolt
n o
Cleaning cloth Remote controller
k
j
Insert the two handles, then pull them as illustrated so
that the unit can be removed.
0508MNMMDWSKP
©2008 Victor Company of Japan, Limited
c
Trim plate
f
Special cable for iPod
k
Rubber cushion
When shipped from the factory,
the battery is installed in the
remote controller.
b
Bend the appropriate tabs to
hold the sleeve firmly in place.
l
EN
