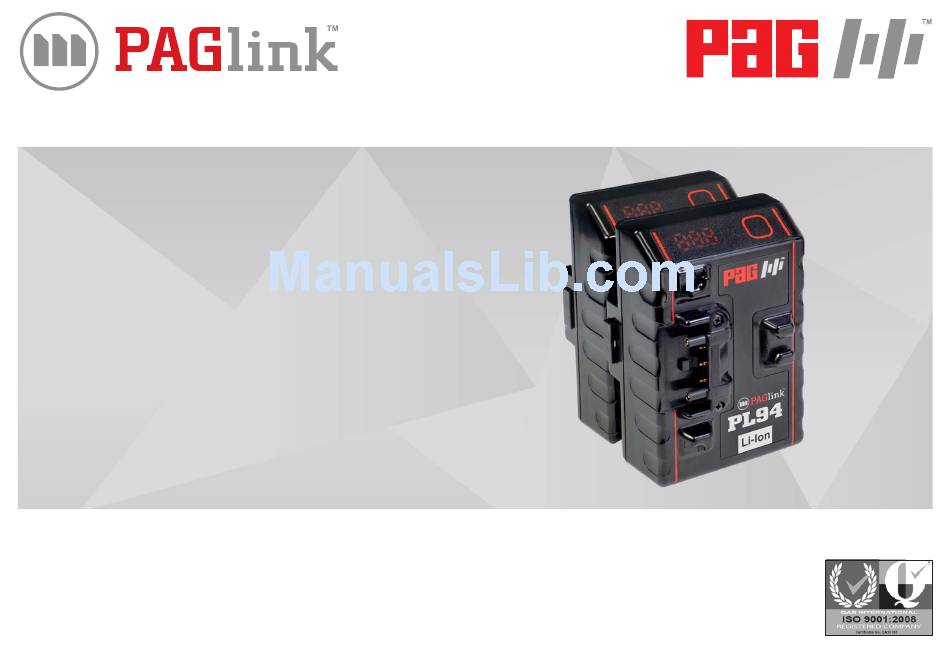

  • Page 1 Gold Mount Intelligent Linking Batteries User Guide U5132G...
  • Page 2 PAG Ltd. 565 Kingston Road London SW20 8SA United Kingdom E: sales@paguk.com T: +44 (0)20 8543 3131 www.paguk.com Disclaimer The information contained in this document is correct at the time of publication. PAG Ltd. reserves the right to change specifications or product details without notification.
  • Page 3: Table Of Contents

    Section Page Introduction Specification Charging Discharging Storage Thank you for choosing PAGlink Gold Mount Run-Time & Capacity Information Intelligent Linking Batteries. Please read the Battery Protection Features important safety information and instructions PAGlink Features before using your battery. Sleep Mode 10 Safety &...
  • Page 4: Introduction

    PAGlink HC-PL150T 150Wh Numeric The unique PAGlink system allows up to 8 batteries to be linked for charge or discharge, regardless of their rated capacity or their state- of-charge. When linked, PAGlink batteries form a network that allows them to communicate with each other and report to the camera as one battery.
  • Page 5 1.11 The intelligent PAGlink batteries manage their own charging safely and efficiently, and can be charged, whilst linked, using other reputable manufacturer’s Li-Ion chargers. 1.12 PAGlink battery and charger firmware can be updated easily by the customer, via external contacts, using an update tool provided by PAG.
  • Page 6: Specification

    Capacities: Dimensions (L x W x H): Model 9306: 129mm (5”) x 87mm (3.42”) x 58mm (2.25”) Nominal 6.4 Ampere-hours (94 Watt-hours). Weight: Models 9313: Model 9306: 735g (1.6lbs) approx. Nominal 10 Ampere-hours (150 Watt-hours). Model 9313: 770g (1.7lbs) approx.
  • Page 7: Charging

    PAGlink batteries display their individual status, during charging, PAGlink batteries are put into sleep mode, prior to shipping, to reduce on their built-in display. When using PL16 chargers, the characters their rate of self-discharge. NOTE: The battery must be woken before of the numeric display can be inverted, for legibility, with a single charging by pressing its display button.
  • Page 8: Discharging

    Where total continuous consumption is above 10A, two or more PAGlink batteries should be linked. This will increase the maximum continuous discharge current to 12A, provided the batteries are in a similar state of charge.
  • Page 9: Storage

    5. Storage PAGlink batteries can be left stacked on a charger until required; the charger will keep them topped-up ready for use. For long-term storage, batteries should be in a half-charged state, and unlinked. Storing batteries linked accelerates the rate at which they self-discharge.
  • Page 10: Run-Time & Capacity Information

    PAGlink Battery Reader given load, expressed in hours and minutes. When batteries are linked The PAGlink Battery Reader is an accessory that can be used to display the run-time displayed relates to the total for the connected data stored in the battery’s microprocessor. When connected to the batteries.
  • Page 11 6. Run-Time & Capacity Information 5. When the desired menu item is displayed, press and hold in the button. The display will then show the data for that item. The menu items are indicated as follows: 1. Battery voltage (Pd stands for 2.
  • Page 12: Battery Protection Features

    7. Battery Protection Features Construction Over-charge Protection The battery cases consist of high-impact, polycarbonate injection Charging will be inhibited if the battery voltage exceeds a pre-set mouldings, designed to protect the cells from impact damage. level. The circuits are conformally-coated, making them resistant to electrolyte and ensuring the operation of the safety systems in the Over-discharge Protection event of damage to the battery.
  • Page 13: Paglink Features

    8. PAGlink Features Linking Batteries: UNLOCKED PRESS TO RELEASE LOCKED Align the gold studs of one battery with the claws on the front of To release the battery, hold down the release button and slide the another. Slide the battery across until you hear a click and the white battery to the left.
  • Page 14 Negative The maximum number of PAGlink batteries that may be linked has been limited to 8. If more than 8 batteries are linked, the manage- ment system will shut-down the supply, and no current will flow.
  • Page 15 Linked batteries form a network which allows communication between batteries, ensuring that a safe protocol is followed under all circumstances. The PAGlink management system elects the battery with one or more connected to its front contacts to be the ‘master’...
  • Page 16: Sleep Mode

    Waking the battery can be achieved by a single press of the display button. Prior to shipping, the PAGlink battery is charged to no more than 30% capacity, and put into sleep mode. You must wake the battery by pressing the display button, prior to charging.
  • Page 17: Safety & Disposal

    The front PAGlink contact assembly and the rear battery locking 10.2 GENERAL: assembly are external to the sealed battery case and can be replaced Do not drop, puncture or crush the battery.
  • Page 18: Guarantee

    The guarantor may, at its option, replace the product in lieu of repair. With regard to any equipment returned within this period, said repairs is exclusive: PAG Limited guarantees each PAGlink battery it manufac- tures to be free of defects in material and workmanship, under normal or replacements will be made without charge.
  • Page 19: Air Transport Regulations

    160Wh. It is advisable to keep the batteries in separate plastic bags, and PAGlink Li-Ion batteries have been independently tested and certified you should bring a copy of the manufacturer’s UN test certificate by Intertek Group PLC to comply with UN Standard 38.3. in accord- and report.
