USER GUIDE 1
V1.2 2/1/18
USER GUIDE
BATTERY INSTALLATION AND USE
Cord Care, MOTOR SAFETY, ANTI-THEFT
PROP AND MOTOR/CORD REMOVAL
Setting Up THE MOUNT ASSEMBLY
ALL ABOUT DEBRIS BAGS
GENERAL OPERATING PROCEDURE
USING THE HH1062 SMART SWITCH
TROUBLESHOOTING GUIDE
WARRANTY STATEMENT
hammerheadvac.com/learn
info@hammerheadvac.com
561-451-1112
hammerheadvac.com/learn
2
4
5
6
7
8
9
10
11
12
14
1
Advertisement
Table of Contents
Related Manuals for Hammerhead SERVICE-21
Summary of Contents for Hammerhead SERVICE-21
- Page 1 USER GUIDE 1 hammerheadvac.com/learn USER GUIDE FREQUENTLY ASKED QUESTIONS BATTERY INSTALLATION AND USE CORD CARE, MOTOR SAFETY, ANTI-THEFT PROP AND MOTOR/CORD REMOVAL SETTING UP THE MOUNT ASSEMBLY ALL ABOUT DEBRIS BAGS GENERAL OPERATING PROCEDURE USING THE HH1062 SMART SWITCH TROUBLESHOOTING GUIDE WIRING DIAGRAMS WARRANTY STATEMENT hammerheadvac.com/learn...
- Page 2 USER GUIDE 2 hammerheadvac.com/learn FREQUENTLY ASKED QUESTIONS The HAMMER-HEAD gives you maximum vacuuming power in a small, lightweight, portable package. That is what sets our cleaner apart from conventional vacuum systems. Our 12-volt rechargeable unit has you cleaning immediately without the usual set-up and run-around.
- Page 3 HOW DOES IT MOUNT TO MY TRUCK OR TRAILER? The SERVICE-21 mounts to any truck equipped with a 2" REESE type hitch receiver. It mounts to any trailer with a set of U-bolts (included). The cart is secured to the mount with a toggle clamp latch and a safety pin. The Resort-30 and Resort-21 units use different carts and do not mount.
- Page 4 USER GUIDE 4 hammerheadvac.com/learn BATTERY USE AND LIABILITY Thousands of Hammer-Head pool cleaning units are currently in use across the United States and in other parts of the world. With proper care they will provide years of dependable service. Please review the following safety information.
- Page 5 USER GUIDE 5 hammerheadvac.com/learn CORD CARE • Poor power cord maintenance drastically shortens the life of the motor assembly. Store the cord in large loops as shown - Do not wind the cord up tightly. • Avoid kinking the power cord or sucking it up into the vacuum head.

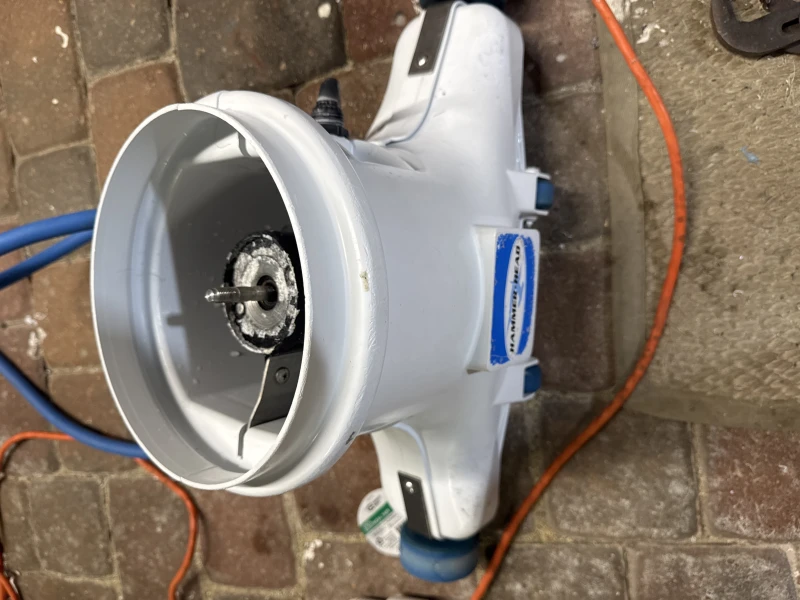

- Page 6 USER GUIDE 6 hammerheadvac.com/learn REMOVING AND REINSTALLING THE PROPELLER Weekly prop debris removal is an important part of routine cleaner maintenance. Excess debris can build up around the prop shaft and compromise the watertight seal. Propellers are durable but over time the leading edge can become rough.
- Page 7 USER GUIDE 7 hammerheadvac.com/learn V1.2 02/01/18 V1.2 2/1/18...
- Page 8 USER GUIDE 8 hammerheadvac.com/learn ATTACHING THE DEBRIS BAG Hammer-Head bags are all handmade here in the USA from chemical resistant materials and feature a no-slip cleat/ string attachment and color-coded tags for quick identification. They are reusable and with proper care will provide months of professional service.
- Page 9 USER GUIDE 9 hammerheadvac.com/learn MORE ABOUT DEBRIS BAGS: KNOW YOUR MICRONS You can't see a micron with the naked eye, but filtration is measured, talked about, and bragged about in microns. So, what is a micron? A micron is one millionth of a meter, or approximately .00003937 inches. Micron ratings are also absolute or nominal.
- Page 10 USER GUIDE 10 hammerheadvac.com/learn UNDERSTANDING THE SMART (BLACK) SWITCH (HH1062) The HH1062 Smart Switch was developed by Hammer-Head to add convenience, control, and protection to your Hammer-Head Resort or Service unit. The internal circuit board monitors amperage and voltage levels to save the motor from burnout during a jam, or while running out of the water.
- Page 11 BATTERY CONNECTIONS WEAKER EVERY DAY LOOK FOR HEAT! HEAT INDICATES POWER LOSS, WHICH DRAINS POWER AND SHORTENS THE LIFE OF THE BATTERY CONTACT HAMMERHEAD FOR INTERNAL COMPONENTS ARE SERVICE OR REPLACE THE MOTOR/ WORN OUT CORD ASSEMBLY MOTOR RUNS INTERMITTENTLY SHORT IN POWER CORD V1.2 2/1/18...
- Page 12 USER GUIDE 12 hammerheadvac.com/learn STANDARD (RED) SWITCH WIRING (HH1061 & HH1060) HH1061 RED ON/OFF SWITCH (INCLUDED ONLY WITH COMPLETE UNITS) BLUE POWER CORD WIRE NUT WIRE NUT WHITE BLACK WHITE NOCO GENIUS CHARGING PORT BLACK BLACK WITH RED STRIPE 12 VOLT DEEP-CYCLE MARINE BATTERY POOR WIRING MAINTENANCE CAN LEAD TO SHORT CIRCUITS, DAMAGE, OR PERSONAL INJURY FROM HEAT AND POSSIBLE FIRE! INSPECT WIRING CONNECTIONS DAILY...
- Page 13 USER GUIDE 13 hammerheadvac.com/learn SMART (BLACK) SWITCH WIRING (HH1062) V1.2 2/1/18...
- Page 14 USER GUIDE 14 hammerheadvac.com/learn LIMITED WARRANTY PLEASE NOTE: Warranty on all NOCO products (NOCO charging ports, battery chargers, and all associated connections) must be submitted to NOCO directly and not to Hammer-Head Patented Performance, Inc. To find out more about the NOCO warranty policy visit https://no.co/support/how-do-you-submit-a-warranty-claim Hammer-Head Patented Performance, Inc.
