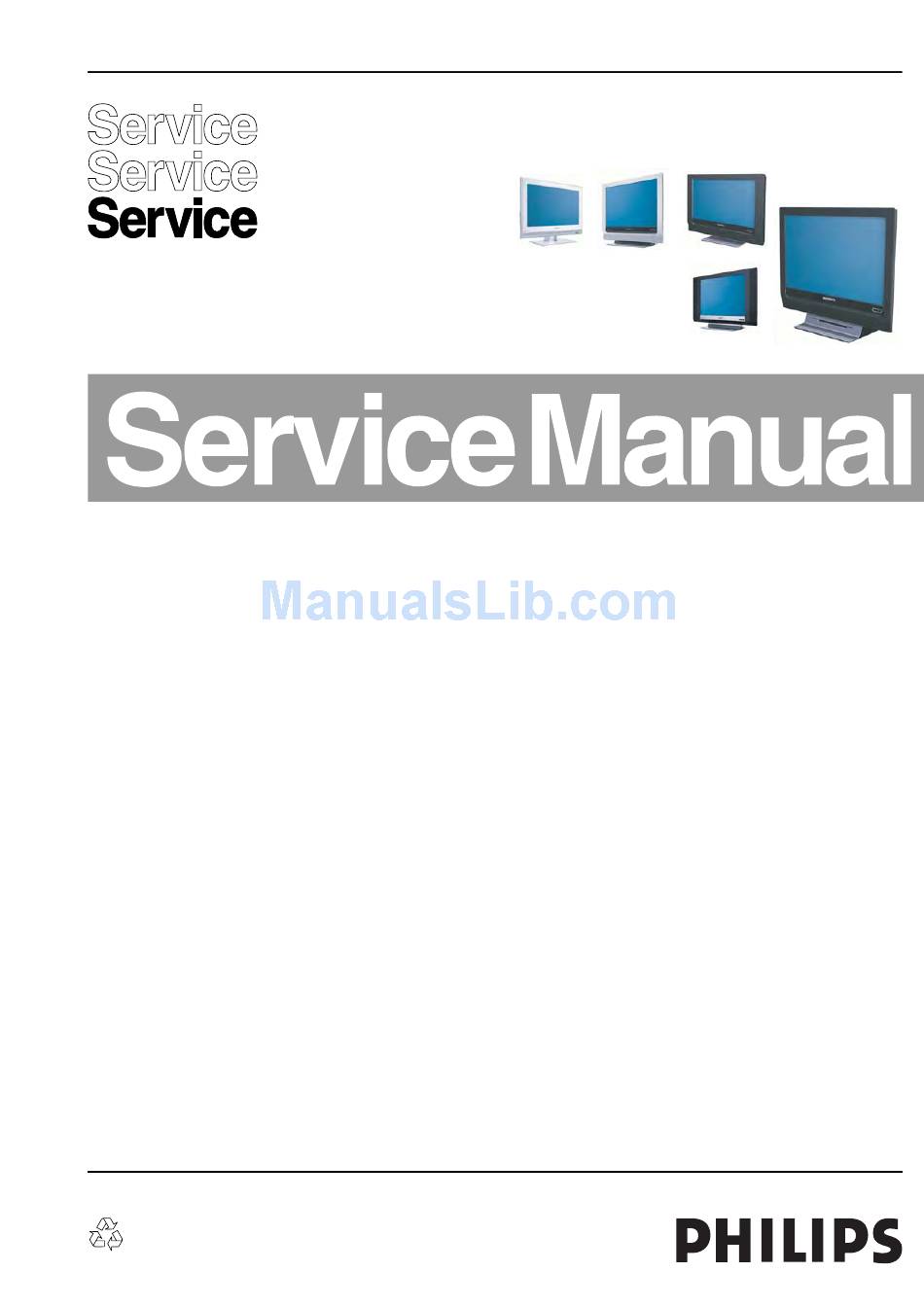

Philips 15MF227B/27 Service Manual

Chassis tpm1.0u
Hide thumbs Also See for 15MF227B/27:
Table of Contents

Advertisement

Quick Links

Color Television
Contents
1
2
3
4
5
6
Waveforms
7
Circuit Diagrams and PWB Layouts
Scaler Board: Power
Scaler Board: Power
Scaler Board: Tuner
Scaler Board: MT5112 ATSC
Scaler Board: MT5371 ATSC
Scaler Board: MT5371 Bypass Cap
Scaler Board: Flash/MT5373Peripheral
Scaler Board: DDR Memory
Scaler Board: AV1/Side AV
Scaler Board: DVD AV/AV3/SPDIF Out
Scaler Board: VGA Input
Scaler Board: HDMI Input
Scaler Board: Audio Coder
Scaler Board: Audio Amplifier
Scaler Board: LVDS Output
Test Point Overview
Keyboard Control Panel
IR & LED Panel
Inverter Board (for 15MF227B)
DVD Key Control Board (for 19MD)
©
Copyright 2007 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Published by CS 0772 BU CD Customer Service
Page
Contents
2
5
7
10
8
9
19
21
Diagram
(S-01) 25
(S-02) 26
(S-03) 27
(S-04) 28
(S-05) 29
(S-06) 30
(S-07) 31
(S-08) 32
(S-09) 33
(S-10) 34
(S-11) 35
(S-12) 36
(S-13) 37
(S-14) 38
(S-15) 39
46-47
(K) 48
(I) 51
(IN) 54
(IN) 55
(SA) 58
(L) 60
(DK) 64
Printed in the Netherlands
Part 1
15MF227B/27
15MF237S/27
19MF337B/27
19MD357B/27
19PFL5402D/27
19PFL5422D/27
19PFL5622D/27
DVD Key Control Board (for 19PFL5622)
DVD Transfer Board (for 19PFL5622)
IC Data Sheets
Subject to modification
Chassis
TPM1.0U
LA
H_16644_000.eps
010607
Page
(DK) 65
(DL) 67
(DT) 69
(DT) 70
72
91
95
98
107/108
116
EN 3122 785 16645
