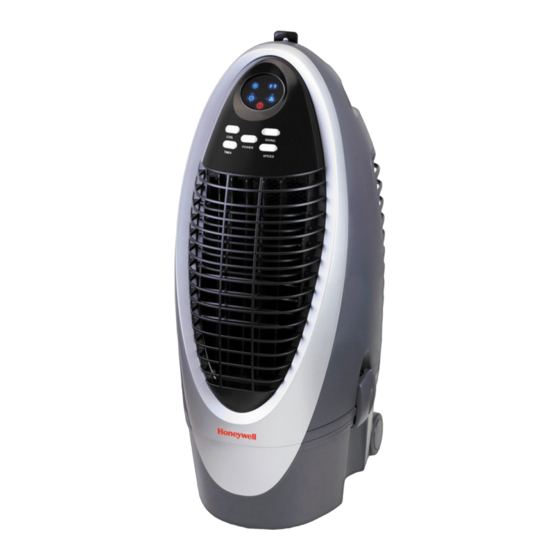

Portable Evaporative Air Cooler
User Manual
Read and save these instructions before use
Portable Evaporative Air Cooler
Panduan Penggunaan
Baca dan simpan petunjuk ini sebelum penggunaan
Scan here / Periksa disini:
www.honeywellaircoolers.com/products/CS10XE
www.jmatek.com
E-mail: info@jmatek.com
COOL/ION
TIMER
Model: CS10XE
I.12.AHI1.03105.1111
Serial Number Here
0.5
M
1
4
H
L
2
S
SWING
POWER
SPEED
Advertisement
Table of Contents
Related Manuals for Honeywell CS10XE
Summary of Contents for Honeywell CS10XE
- Page 1 Read and save these instructions before use Portable Evaporative Air Cooler Panduan Penggunaan Baca dan simpan petunjuk ini sebelum penggunaan COOL/ION SWING POWER TIMER SPEED Scan here / Periksa disini: www.honeywellaircoolers.com/products/CS10XE www.jmatek.com Model: CS10XE E-mail: info@jmatek.com I.12.AHI1.03105.1111 Serial Number Here...
-
Page 2: Parts Description
PARTS DESCRIPTION COOL SWING POWER TIMER SPEED (13) (14) (10) (11) (15) (12) (16) 1) Display Screen 7) Remote Control 13) Carbon Dust Filter 2) Control Panel 8) Honeycomb Cooling Media 14) Water Level Indicator 3) Louvers 9) Rear Grill 15) Detachable Water Tank Latch 4) Front Grill 10) Water Fill Tray... -
Page 3: Remote Control
USE & OPERATION (CONTINUED) FUNCTION BUTTONS (CONTINUED) TIMER Press the TIMER button until the desired time duration setting is selected. When the set time has passed, the unit will automatically turn off (unit remains in Standby mode until power cord is unplugged from electrical socket). -
Page 4: Cooler Location
USE & OPERATION (CONTINUED) COOLER LOCATION Make sure to position the air cooler correctly before you set up and start using the product. Please refer to the COOLER LOCATION section of the separate Safety & Maintenance Guide. FILLING WITH WATER CAUTION: Unplug the unit from the electrical power outlet before emptying or refilling the water tank. - Page 5 USE & OPERATION (CONTINUED) CLEANING THE CARBON DUST FILTER* AND HONEYCOMB COOLING MEDIA Honeycomb Figure 1: • The appliance is supplied with a Carbon Dust Filter* and Cooling Media Rear Grill Carbon Dust Honeycomb Cooling Media. Filter • The Carbon Dust Filter* and Honeycomb Cooling Media are located inside the Rear Grill.
-
Page 6: Penggunaan & Pengoperasian
PENJELASAN BAGIAN-BAGIAN ALAT COOL/ION SWING POWER TIMER SPEED (13) (14) (10) (11) (15) (12) (16) 1) Layar Tampilan 7) Alat Pengendali Jarak Jauh 13) Filter Debu Karbon 2) Panel Pengendali 8) Media Pendingin Honeycomb 14) Indikator Level Air 3) Kisi-Kisi 9) Jeruji Besi Belakang 15) Selot Tangki Air yang Dapat 4) Jeruji Besi Depan... - Page 7 PENGGUNAAN & PENGOPERASIAN (LANJUTAN) FUNGSI TOMBOL-TOMBOL (LANJUTAN) PENGATUR WAKTU (TIMER) Tekan tombol TIMER hingga penyetelan penundaan waktu yang diinginkan terpilih. Ketika waktu yang disetel telah berlalu, alat akan secara otomatis mati (alat tetap dalam mode Standby hingga kabel listrik dilepaskan dari stopkontak listrik). Fungsi TIMER membuat anda dapat memprogram alat hingga 7.5 jam penggunaan.
- Page 8 PENGGUNAAN & PENGOPERASIAN (LANJUTAN) LOKASI PENDINGIN Pastikan posisi pendingin udara telah benar sebelum anda menyetel dan memulai penggunaan produk. Lihatlah bagian LOKASI PENDINGIN pada Panduan Keamanan & Pemeliharaan terpisah. MENGISI AIR PERINGATAN: Lepaskan steker alat dari stopkontak listrik sebelum mengosongkan atau mengisi ulang tangki air. Buka Nampan Pengisian Air yang ada di bagian belakang alat.
- Page 9 PENGGUNAAN & PENGOPERASIAN (LANJUTAN) MEMBERSIHKAN FILTER DEBU KARBON* DAN MEDIA PENDINGIN HONEYCOMB Media Pendingin Gambar 1: • Alat disertakan dengan Filter Debu Karbon* dan Media Honeycomb Jeruji Besi Filter Debu Belakang Pendingin Honeycomb. Karbon • Filter Karbon* dan Media Pendingin Honeycomb terletak di bagian dalam Jeruji Besi Belakang.
- Page 10 TECHNICAL SPECIFICATIONS / SPESIFIKASI TEKNIS Model / Model CS10XE Voltage / Tegangan 220V Frequency / Frekuensi 50Hz 50Hz Wattage / Daya 100W Water Tank Capacity / Kapasitas Tangki Air 10 Litres / 2.64 Gallons Cooling Media / Media Pendingin Honeycomb...
