Summary of Contents for Motorola MBP163CONNECT

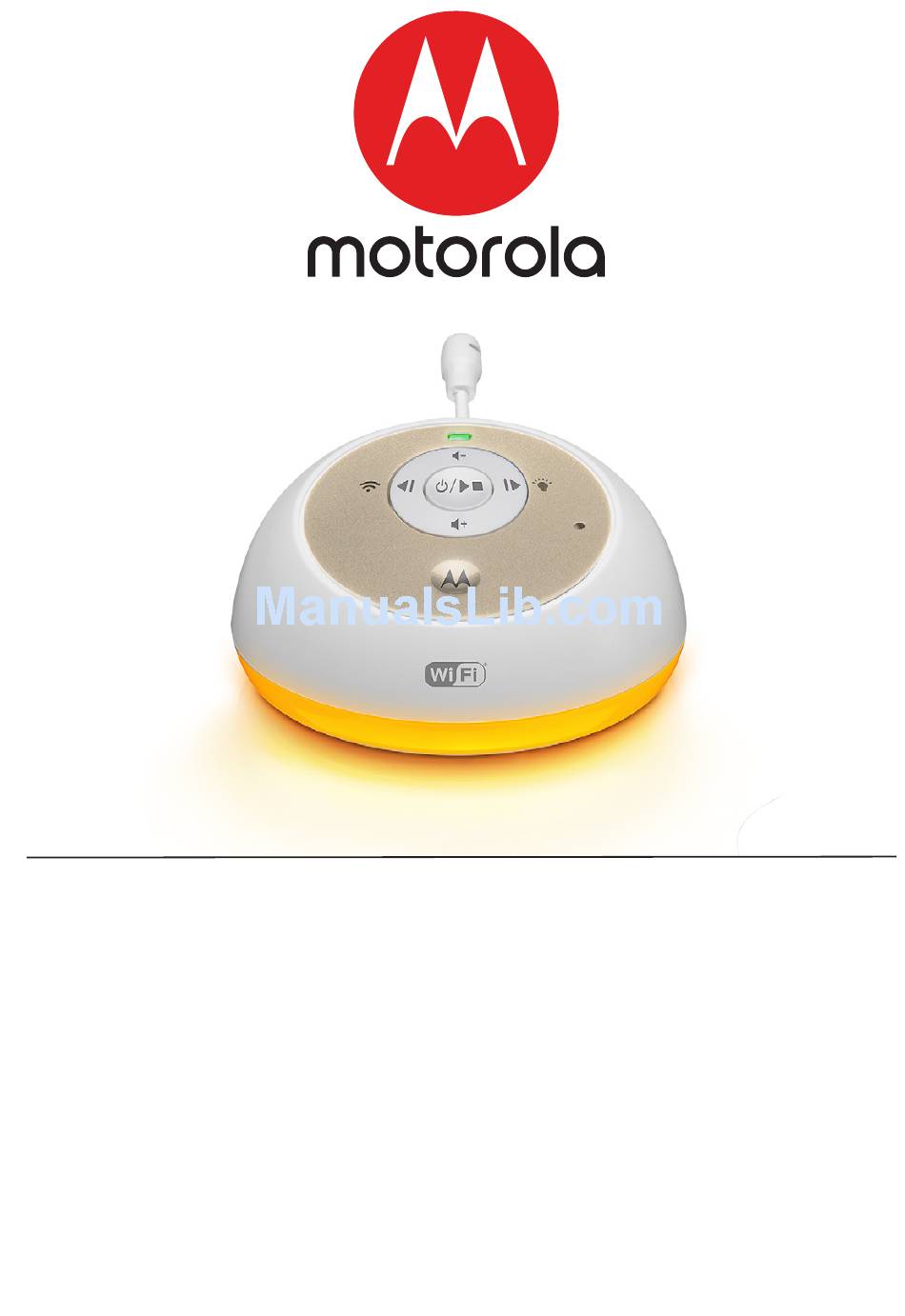

- Page 1 User’s Guide All-in-One Smart Soother and Audio Monitor Models: MBP163CONNECT The features described in this guide are subject to modifications without prior notice.
- Page 2 Android™ devices. Please keep your original dated sales receipt for your records. For warranty service of your Motorola product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
- Page 3 Overview of MBP163CONNECT Power/Lullaby button Volume Up button Press and hold to turn ON/OFF Press to increase speaker volume the Unit, the Power Indicator is level. on when the Unit is on. When it is Forward/Night Light button standby, press to play the audio...
-
Page 4: Table Of Contents
What you need ..................11 User Account and Setup on Android™ Devices .....12 User Account and Setup on iOS® Devices ........16 Reset the MBP163CONNECT ............21 6. Disposal of the Device (Environment) .......... 22 7. Cleaning ....................23 8. Troubleshooting ................. 24 9. -
Page 5: Safety Instructions
1. Safety Instructions WARNING: Strangulation Hazard. Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3 feet away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions... - Page 6 Device SET UP & USE: ● Choose a location for All-in-One Smart Soother and Audio Monitor that will provide the best audio reception of your baby in his/her crib. ● Place the device on a flat surface, such as a dresser, bureau or shelf, or mount the Unit on a wall securely using the keyhole slots under the stand.
-
Page 7: Getting Started
2. Getting Started • Insert the DC plug of the power adapter into the DC jack on the back of the baby unit. • Connect the other end of the power adapter to a suitable electrical outlet. NOTE Only use the provided power adapter. Getting Started... -
Page 8: Using Your All-In-One Smart Soother And Audio Monitor
3. Using Your All-in-One Smart Soother and Audio Monitor Please read these instructions carefully, and be aware All-in-One Smart Soother and Audio Monitor is only intended as an aid. It is not a substitute for responsible and proper adult supervision. Power on or off the baby unit •... -
Page 9: Set Nightlight
Set nightlight The nightlight feature is intended to give soft glow in order to calm down or soothe the baby. • Press button to turn on the night light when the unit is at standby mode. • Tap again to select 7 different light colors and Light OFF in cyclic manner. -
Page 10: System Requirements
4. System Requirements ® Smartphones / Tablets: Android™ and iOS only. Minimum requirement: iOS 8.0, Android 5.0 or above. For more information, please visit: https://hubbleconnected.com/ requirements. System Requirements... -
Page 11: Connecting Devices
NOTE Do not place the device within the baby's reach! Ensure it is not close to other electrical equipment. What you need • MBP163CONNECT • Device with Android™ system 5.0 or above ® • or Any iOS Device with iOS version 8.0 or above... -
Page 12: User Account And Setup On Android™ Devices
User Account and Setup on Android™ Devices 5.3.1 Download Hubble for Smart Nursery App. Hubble for Smart • Go to Google Play™ Store to search for Nursery App. Hubble for Smart Nursery • Download App from Google Play™ Store and install it on your Android™ device. 5.3.2 Run Hubble for Smart Nursery App on Android™... - Page 13 5.3.3 Add the MBP163CONNECT to your account • Tap on Audio Monitors then tap MBP163 to add the device, read through the features of MBP163CONNECT or tap on Skip to setup. (Pictures A3, A4, A5) PAIR • Press and hold the...
- Page 14 • Tap Next, the App will automatically search for your device as shown in the picture below. (Pictures A6, A7). SSID • Tap the device (AudioMonitor-0163XXXXXX) to connect to the App. (Picture A8) • Tap Next to search for the Wi-Fi router. (Picture A9) Connecting Devices...
- Page 15 ® • Select your Wi-Fi network, enter your password and then tap Search. (Picture A10) ® • It will take a few minutes for the device to connect to the Wi-Fi the device is successfully registered to your Smart Nursery account.
-
Page 16: User Account And Setup On Ios® Devices
® User Account and Setup on iOS Devices 5.4.1 Download Hubble for Smart Nursery App Hubble for Smart Nursery • Go to App Store to search for " " App. • Download "Hubble for Smart Nursery" App and install it on your ®... - Page 17 5.4.3 Add the MBP163CONNECT to your account • Tap on Audio Monitors then tap MBP163 to add the device, read Skip to setup through the features of MBP163CONNECT or tap on (Pictures i3, i4, i5) • The following setup instructions will appear on the screen.
- Page 18 PAIR • Press and hold the button at the front of MBP163CONNECT, you will hear a Beep tone from the device which it is ready for pairing. ® Settings • Go to > Wi-Fi menu on your iOS device. (Picture i8).
- Page 19 • Press Home Key to return back, tap the Smart Nursery app to resume setup, the SSID will be detected on your iOS device. (Picture 10) NEXT • Tap ® • Select your Wi-Fi network and tap Search. (Picture i11) Connecting Devices...
- Page 20 ® • It will take a few minutes for the device to connect to the Wi-Fi network, the device is successfully registered to your Smart Nursery account. (Picture i13) • If connection fails, please tap Retry and repeat the steps starting from 5.4.3.
-
Page 21: Reset The Mbp163Connect
Reset the MBP163CONNECT Note: If your Unit is moved from one router (e.g. home) to another (e.g. office) or you have setup issues, then the Unit must be reset. • Press and hold PAIR button for more than 20s to enter to deregister mode and perform factory default. -
Page 22: Disposal Of The Device (Environment)
6. Disposal of the Device (Environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide and/or box indicates this. -
Page 23: Cleaning
• Every effort has been made to ensure high standards of reliability of your Smart Monitoring Companion. However, if something does go wrong, please do not try to repair it yourself - contact Customer Service for assistance. IMPORTANT Always switch off and disconnect the power adapter before cleaning your MBP163CONNECT. Cleaning... -
Page 24: Troubleshooting
8. Troubleshooting Problem Problem Solution Category Description / Error Account I am unable to login Please check your user name and even after password. registration. Account I receive an error Please ensure that you have message saying: registered with us. Tap Sign in to "E-mail ID is not create an account. - Page 25 Setting Up During setup on Please reset the Device to setup devices for mode and try again. Press and Android™ and iOS, I hold the PAIR button on the front am not able to find of the Device until you hear a my Device during beep.
- Page 26 General I do not hear any You can tap on the speaker icon sound when I am in the Audio Monitoring to hear accessing the audio. Device General How do I download Android™: Google Play - Open the the App for your Android™...
-
Page 27: General Information
If you think you need a battery replacement, please contact customer service. Consumer Products and Accessories Limited Warranty ("Warranty") Thank you for purchasing this Motorola branded product manufactured under license by Binatone Electronics International LTD ("BINATONE") What Does this Warranty Cover? Subject to the exclusions contained below, BINATONE warrants that this Motorola branded product ("Product") or certified accessory... - Page 28 WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. IN NO EVENT SHALL MOTOROLA OR BINATONE BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE...
- Page 29 (c) use of the Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other acts which are not the fault of MOTOROLA or BINATONE, are excluded from coverage.
- Page 30 Defects or damages resulting from service, testing, adjustment, installation, maintenance, alteration, or modification in any way by someone other than MOTOROLA, BINATONE or its authorized service centers, are excluded from coverage. Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered or obliterated;...
- Page 31 FCC and IC regulations FCC Part l5 NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 32 WARNING Changes or modifications, to this equipment not expressively approved by the party responsible for compliance could void the user’s authority to operate the equipment. Industry Canada This device complies with Industry Canada licence-exempt RSS standard(s): Operation is subject to the following Two conditions:(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 33: Technical Specifications
10. Technical Specifications Frequency band 2400MHz-2483MHz Operating 5°C - 45°C (41°F - 114°F) temperature Maximum RF Power 20dBm Power Adapter Ten Pao International Ltd. S003GU0500060 Input 100-240V AC, 50/60Hz, 150mA Output DC5V, 600mA Chou Sen Electronic (ShenZhen) Co., Ltd CS3E050060FU Input 100-240V AC, 50/60Hz, 200mA Output DC5V, 600mA WARNING... - Page 34 International LTD., official licensee for this product. MOTOROLA and the Stylized M logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. Apple logo is trademark of Apple Inc., registered in the U.S. and other countries.
