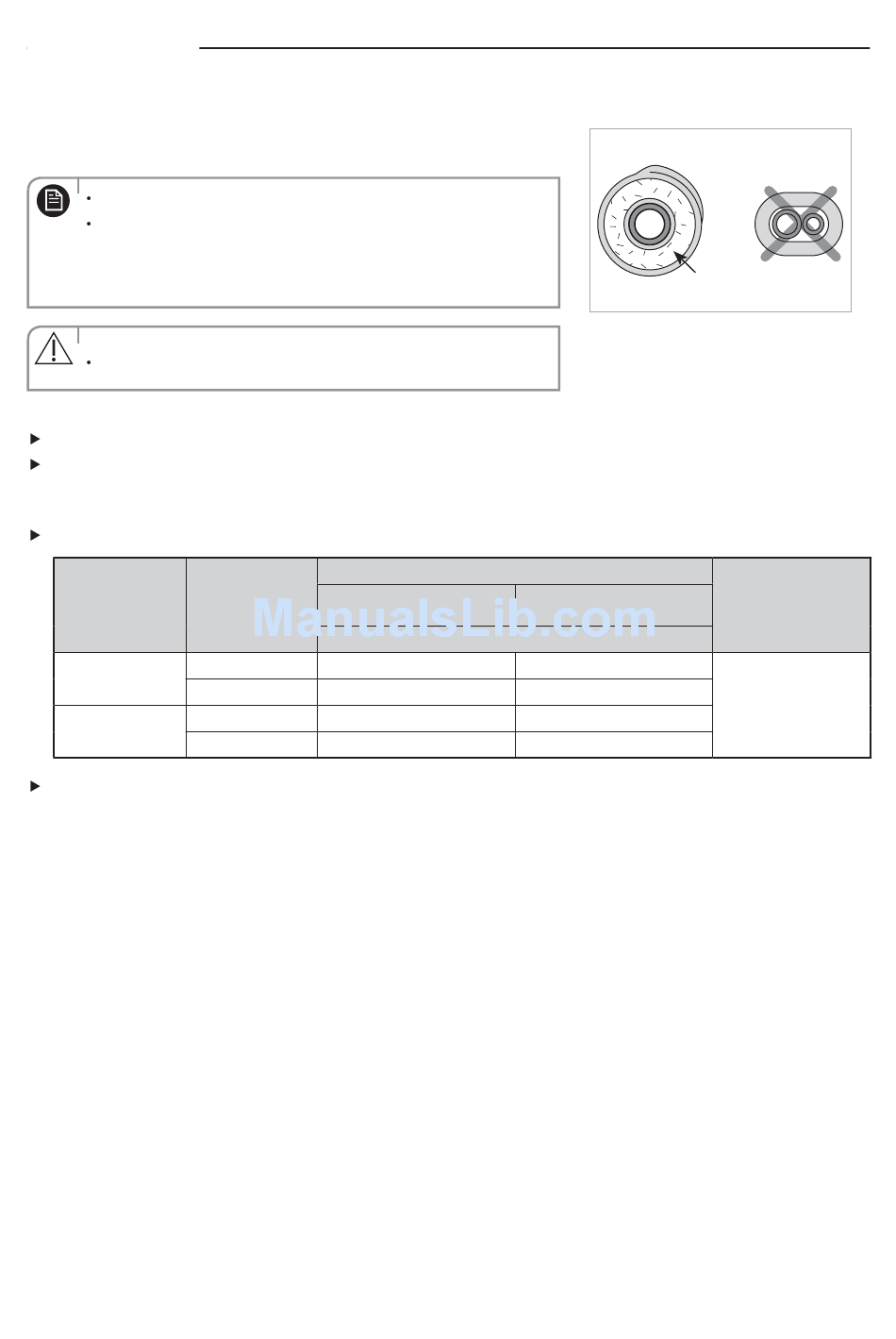

Insulation
Once you have checked that there are no leaks in the system, you can insulate the piping and hose.
1. To avoid condensation problems, place an insulator around each refrigerant
pipe.
When insulate the pipe, be sure to overlap the insulation.
The insulation has to be produced in full compliance of European
NOTE
regulation reg. EEC / EU 2037/ 2000 that requires the use of
sheaths insulation form without using CFC and HCFC gases for
health and the environment.
When insulating the pipe, use non-slit insulator.
CAUTION
2. Select the insulation of the refrigerant pipe.
Insulate the gas side and liquid side pipe referring to the thickness according to the pipe size.
Less than Indoor temperature of 86 °C and humidity of 85 % is the standard condition. If installing in a high humidity
condition, use one grade thicker insulator by referring to the table below. If installing in an unfavorable conditions, use
thicker one.
Insulator's heat-resistance temperature should be more than 248 °F.
Pipe
Liquid pipe
Gas pipe
When installing insulation in places and conditions below, use the same insulation that is used for high humidity
conditions.
<Geological condition>
- High humidity places such as shoreline, hot spring, near lake or river, and ridge (when the part of the building is
covered by earth and sand.)
<Operation purpose condition>
- Restaurant ceiling, sauna, swimming pool etc.
<Building construction condition>
- The ceiling frequently exposed to moisture and cooling is not covered.
e.g. The pipe installed at a corridor of a dormitory and studio or near an exit that opens and closes frequently.
- The place where the pipe is installed is highly humid due to the lack of ventilation system.
Standard
Pipe size
[Less than 86 °F, 85 %]
1/4"~ 3/8"
1/2"~ 3/4"
1/4"
3/8" ~ 3/4"
Insulation Type (Heating/Cooling)
High humidity
[over 86 °F, 85 %]
EPDM, NBR
0.35 t
0.51 t
0.51 t
0.75 t
English-24
NBR
Remarks
0.35 t
0.51 t
Internal temperature is
higher than 248 °F
0.75 t
0.98 t
