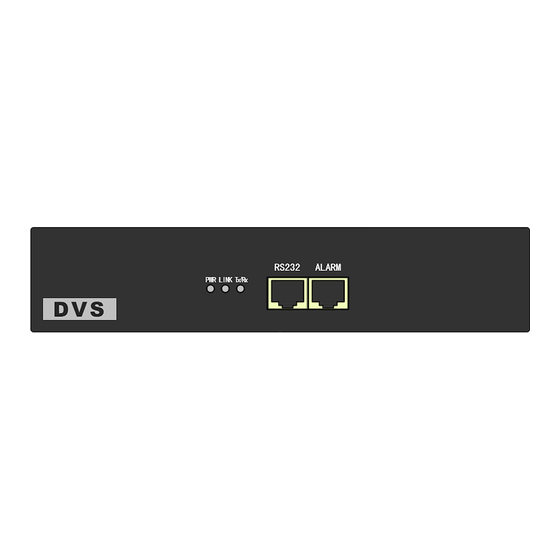

- Page 1 Hikvision Technical Manual DS-6001DI Audio & Video Decoder ©2006 – 2010 by HIKVISION. All rights reserved.
- Page 2 HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or subject...
- Page 3 Hikvision Technical Manual Contents 1. Overview 2. Order Model 3. Features 4. Specifications ©2006 – 2010 by HIKVISION. All rights reserved.
- Page 4 It adopts embedded system and the firmware is burned into the flash, making the system more stable and reliable. DS-6001DI decoder is also deployed based on the IP network, and supports a variety of network transmission protocols. The input source of the device is real-time compressed stream through network from Hikvision DVR, DVS, etc.
- Page 5 Hikvision Technical Manual 2. Order Model DS-6001DI: 1 channel video/audio output, support up to 4CIF video resolution ©2006 – 2010 by HIKVISION. All rights reserved.
- Page 6 Support front-end encoding products of Hikvision such as DVR, DVS, IP Module, IP Camera and IP Dome, etc. DS-6001DI can support up to 4 screens circle decoding. The circle period is configurable. DS-6001DI supports 4CIF resolution one screen decoding, which also ...
-
Page 7: Specifications
Power supply DC +12V Power consumption ≤7W -10℃~+55℃ Working temperature Working humidity 10%~90% Size 235mm*136mm*43mm Weight <2Kg PAL: 176× 144(QCIF), 352×288(CIF), 704×288(2CIF), 528×384(DCIF), 704×576(4CIF); NTSC: 176×120(QCIF), 352×240(CIF), 704×240(2CIF), 528× 320(DCIF), 704× 480(4CIF). ©2006 – 2010 by HIKVISION. All rights reserved.
