RIDGID NaviTrack II Quick Start Manual

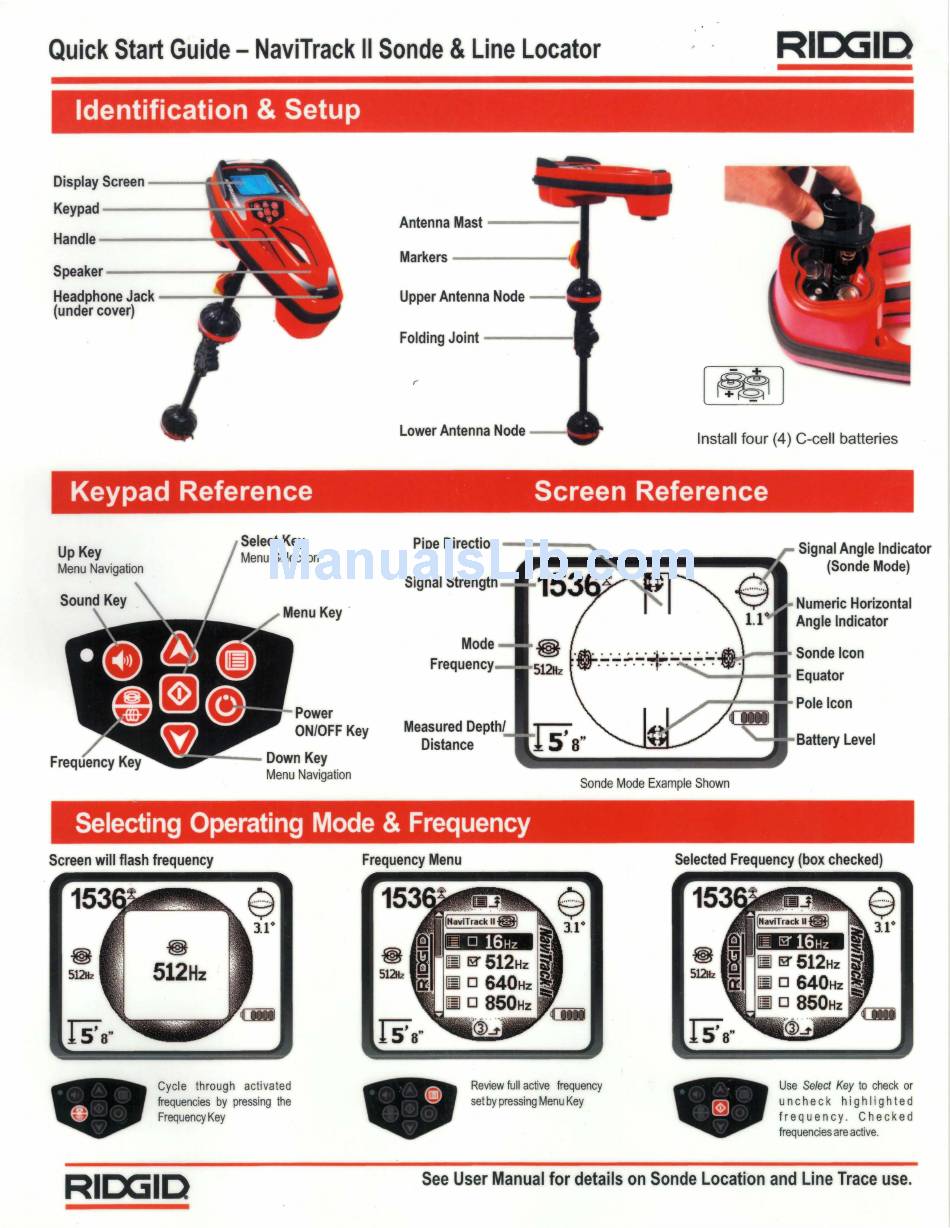

Quick Start Guide - NaviTrack II Sonde & Line Locator
RICXilC
Identification & Setup
Display Screen - --c:
Keypad - - - - -
Handle - - - - -
Speaker -----""!"::
Headphone Jack - - - -
(under cover)
Folding Joint - - - -
r
[~]
Lower Antenna Node
Install four (4) C-cell batteries
Keypad Reference Screen Reference
Power
ON/OFF Key
Down Key
Menu Navigation
Signal Strength
Mode
Frequency
Measured Depth/
Distance
Sonde Mode Example Shown
Signal Angle Indicator
(Sonde Mode)
Numeric Horizontal
Angle Indicator
Sondelcon
Equator
Pole Icon
Battery Level
Selecting Operating Mode
&
Frequency
Screen will flash frequency
~
512Hz
~
512Hz
Cycle through activated
frequencies by pressing the
Frequency Key
RICGID
Frequency Menu
~
512Hz
Review full active frequency
set by pressing Menu Key
Selected Frequency (box checked)
~
512Hz
Use Select Key to check or
uncheck highlighted
frequency . Checked
frequencies are active.
See User Manual for details on Sonde Location and Line Trace use.
