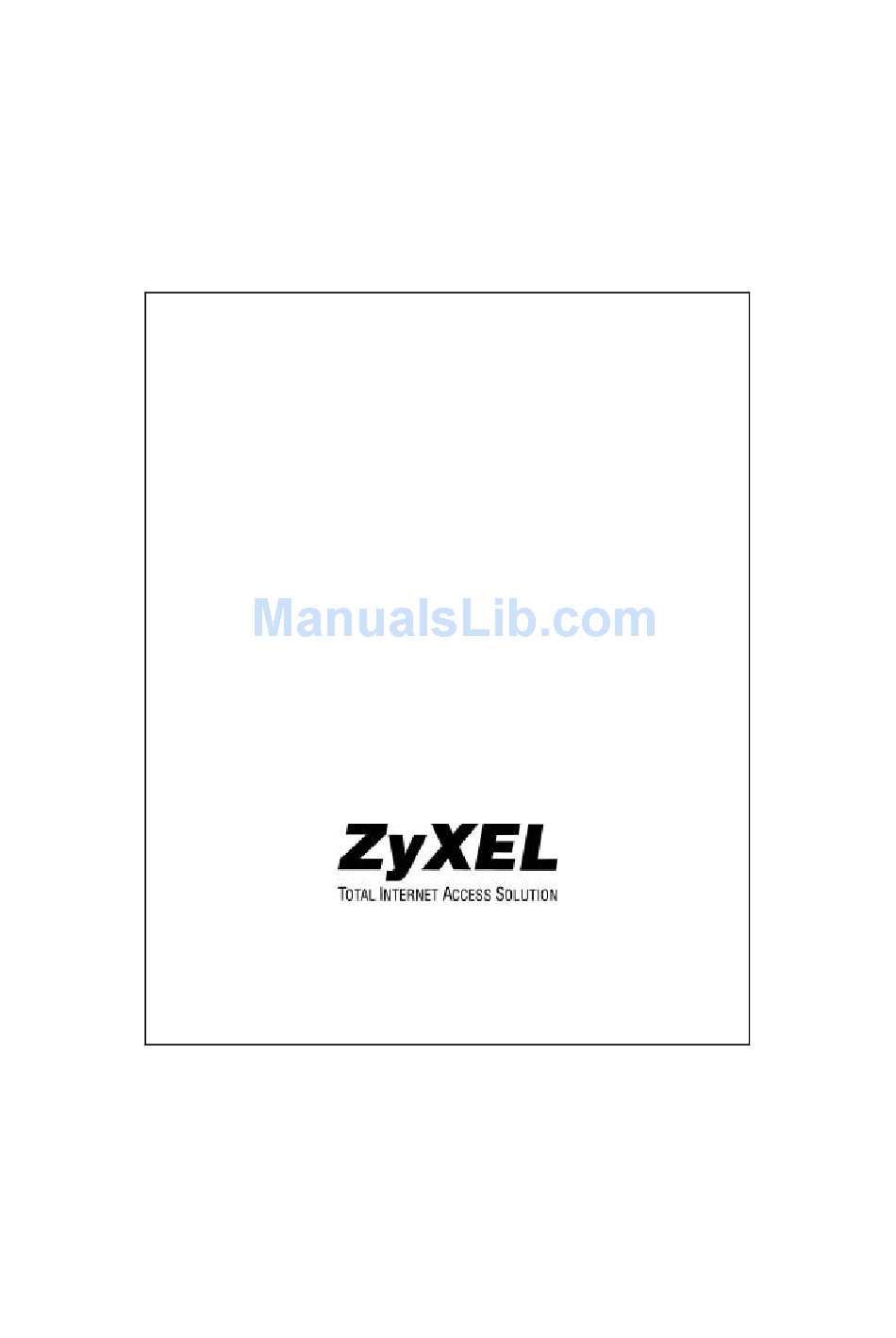

- Page 1 PEC-50 Phoneline Ethernet Converter User’ s Guide Version 2.0...
- Page 2 Copyright Copyright © 2000 by ZyXEL Communications Corporation. The contents of this publication may not be reproduced in any part or as a whole, transcribed, stored in a retrieval system, translated into any language, or transmitted in any form or by any means,...
-
Page 3: Fcc Statement
FCC Statement This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning! This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of... - Page 4 Information for Canadian Users The Industry Canada label identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operation, and safety requirements. The Industry Canada does not guarantee that the equipment will operate to a user's satisfaction. Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company.
- Page 5 This digital apparatus does not exceed the class A limits for radio noise emissions from digital apparatus set out in the radio interference regulations of Industry Canada.
- Page 6 ZyXEL Limited Warranty ZyXEL warrants to the original end user (purchaser) that this product is free from any defects in materials or workmanship for a period of up to two years from the date of purchase. During the warranty period, and upon proof of purchase, should the product have indications of failure due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the defective products or components without charge for either parts...
- Page 7 This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Registration Please register your PEC-50 Phoneline Ethernet Converter (fast, easy online registration at www.zyxel.com) for free product updates and information.
-
Page 8: Customer Support
Customer Support If you have questions about your ZyXEL product or desire assistance, contact ZyXEL Communications Corporation offices worldwide, in one of the following ways: E-MAIL – Support/ Sales Telephone/Fax Regular Mail Web Site/ FTP Site Worldwide support@zyxel.com.tw +886-3- 578-3942 support@europe.zyxel.com... - Page 9 Table of Contents COPYRIGHT ....................II DISCLAIMER ....................II TRADEMARKS .....................II FCC STATEMENT ..................III INFORMATION FOR CANADIAN USERS ........IV ZYXEL LIMITED WARRANTY............VI CUSTOMER SUPPORT ................VIII UNPACKING INFORMATION ............1 THE PHONELINE ETHERNET CONVERTER ....... 2 ..............2 ENERAL ESCRIPTION .................2 EATURES ................3 RONT ANEL ................4 ANEL...
- Page 10 PHONELINE ETHERNET 轉換器..........9 使用說明書..................9...
- Page 11 1 Unpacking Information Thank you for purchasing the PEC-50 Phoneline Ethernet Converter. Before you start, please check the contents in the package. The package should include the following: One Phoneline Ethernet Converter One power adapter One telephone line Wall-mount screws...
- Page 12 2 The Phoneline Ethernet Converter General Description The converter is designed for signal conversion between 1 Mbps phoneline networking and Ethernet. The 1 Mbps phoneline networking is a new technology that provides network connectivity over existing telephone wires without any impact on the voice service. The converter is a plug-n-play device requiring no configuration and is also fully compatible with all network protocols.
- Page 13 packets Ÿ Extensive LED indicators for network diagnostics Ÿ External power adapter Ÿ FCC Class A The Front Panel The front panel of the converter is shown below. There are three LED indicators on the front panel that show the operating status of the converter.
- Page 14 2. The port’s cable is firmly seated in its connectors on the converter and on the connected device. 3. The cable is good and is of the correct type. 4. The connected device, i.e., the network adapter, is functioning. The Rear Panel The rear panel of the converter is shown below.
- Page 15 2.4.2 Power Connection To make the power connection, insert the round end of the power adapter to the PWR receptacle on the converter and the other end to an electrical outlet.
- Page 16 3 Installation The converter does not require any configuration. You can start using the converter by simply attaching the cables and applying power. Please note that the maximum distance between the converter and a phoneline networking switch is 500 feet (150 meters).
- Page 17 If you wish to wall-mount the converter, the distance between the mounting holes is 89 mm as shown in the above diagram.
-
Page 18: Product Specifications
4 Product Specifications Standard IEEE802.3, 10BASE-T HomePNA specification 1.1 Interface One 1 Mbps phoneline networking port with two bypass connectors One 10Base-T Ethernet port Cable Connections RJ-45 (10Base-T): UTP Category 3,4,5 Phoneline networking: Twisted-pair telephone wires Network Data Rate Ethernet: 10 Mbps Phoneline networking: 1 Mbps LED Indicators One Power LED... - Page 19 5 Phoneline Ethernet 轉換器 使用說明書 感謝您購買 Phoneline Ethernet 轉換器，本轉換器提供以電話線及電 腦終端機設備連接網路之功用。主要功能項目包括： 1. 支援 1Mbps HomePNA specification 1.1。 2. 支援 IEEE 802.3 10BASE-T。(10Mbps) 3. 支援一個 HomePNA switching port，(兩個 bypass RJ-11 電話接 頭)，及一個 10Mbps RJ-45 乙太網路接頭。 4. 以電話線連接能夠連接最高達 500 呎(150 公尺)。 5. 提供顯示燈號，以方便偵測除錯之用。 6.
